Product Details:
Payment & Shipping Terms:
|
| Engine Model:: | Perkins, 1506A-E88TAG5 | Alternator Brand:: | Stamford, HCI444D |
|---|---|---|---|
| Frequency:: | 50Hz | Prime Power (kw/kva):: | 240/300 |
| Standby Power(kw/kva):: | 264/330 | Control Module Brand:: | HGM6110 |
| Rated Voltage:: | 400/230 | Running Noise Db(A): | 115(open Type) |
| Battery Capacity (V-Ah):: | 24V 100Ah | Open Type-Dimension (L*W*H) (mm):: | 3200*1150*1900 |
| Open Type-Weight (kg):: | 2735 | ||
| Highlight: | Emergency Generator Set,power generating sets |
||

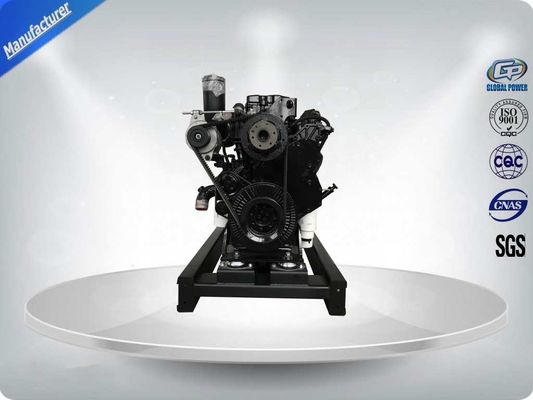

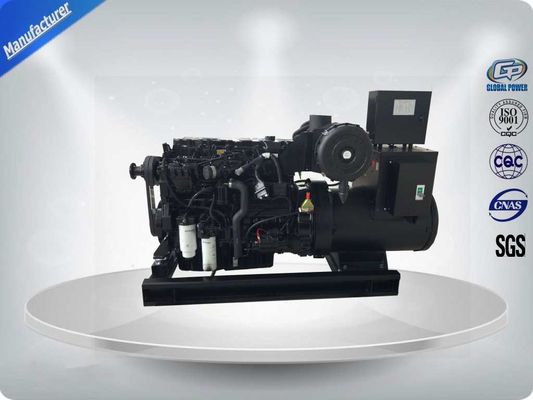

240KW/300KVA Perkins Diesel Generator, Open Type, Three Phase with Stamford Diesel Generator
Model: GPP240
Features and benefits
Generator data
Diesel Generator GPP240 (three phase)
| Prime Power (kw/kva) | 240/300 |
| Standby Power (kw/kva) | 264/330 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 433 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3200*1150*1900 |
| Open Type-Weight (kg) | 2735 |
| Soundproof Type- Dimension (L*W*H) (mm) | 4100*1500*2250 |
| Soundproof Type-Weight (kg) | 6385 |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |
Engine specifications
Engine
Main features:
Technical data
Model 1506A-E88TAG5
| Engine brand | Perkins |
| Output Power (kw) | 273 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | |
| Displacement (L) | 9.3 |
| Bore X Stroke (mm) | 117*146 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 45 |
| Fuel Consump. (g/kw·h) | 208 |
| Oil Capacity (L) | 36 |
Alternator specifications
Alternator
Main features:
Technical data
Model HCI444D
| Alternator brand | Stamford |
| Rated Power (kw) | 240 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
HGM6110 controller
Main features:
