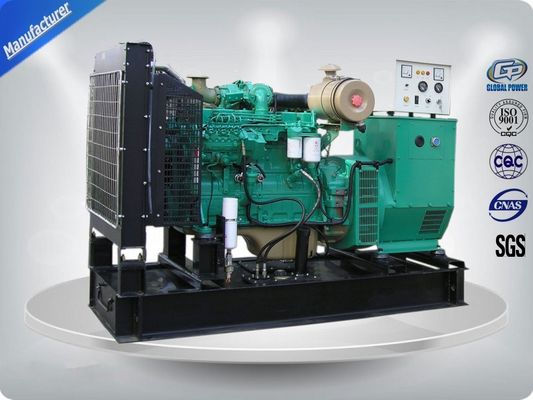

Three Phase Open Diesel Generator Set 25 Kva With Mechanical Speed Govorner, Air Filter, Air Cleaner

: Large Image : Three Phase Open Diesel Generator Set 25 Kva With Mechanical Speed Govorner, Air Filter, Air Cleaner

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	OEM/ISO9001
Model Number:	GP C20

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	FOB, CRF, CIF, EXW…
Delivery Time:	30 working days after received down-payment
Payment Terms:	T/T or LC
Supply Ability:	2,000 sets/year

Contact Now

Detailed Product Description

Rated Voltage::	400/230V	Prime Power (kw/kva):	20/25
Standby Power(kw/kva):	22/27.5	Engine Model:	Cummins -4B3.9-G2/24
Alternator Brand:	Stamford, Mecc-alte, Copy Stamford	Frequency:	50HZ / 60HZ Available
Genset Type:	Open, Silent, Trailer..	Net Weight(kg):	660
Dimension Size(LWH/mm):	15907501130	Control Module:	DeepSea, Comap, Smartgen
Highlight:	Emergency Generator Set , power generating sets

Three Phase Open Diesel Genset 25 Kva With Mechanical Speed Govorner, Air Filter, Air Cleaner

Technical Specifications:

Genset	Prime Power (kw/kva)		20/25
	Voltage Recovery Time		≤1S
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		12V 100Ah
	Open Type-Dimension (LWH) (mm)		15907501130
	Open Type-Weight (kg)		660
	Soundproof Type- Dimension (LWH) (mm)		250010001300
	Soundproof Type-Weight (kg)		1120
	Fuel Tank Capacity(L)		120
Engine	Engine brand	Cummins
	Output Power (kw)	24
	Cylinder No. & Config.	4, in-line
	Combustion System	direct injection
	Compression Ratio	16.5:1
	Displacement (L)	3.9
	Bore X Stroke (mm)	102*120
	Engine Speed (r/min)	1500
	Speed Governing	Mechanical
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Control system

Three Phase Open Diesel Generator Set 25 Kva With Mechanical Speed Govorner, Air Filter, Air Cleaner

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability

Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed

Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Our Features :

Universal design and manufacture
Engineers are familiar with diesel generators powered by Cummins engine
You could find spare-parts easily.
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

Appearance:
Three Phase Open Diesel Generator Set 25 Kva With Mechanical Speed Govorner, Air Filter, Air Cleaner

Our advantages:

1.Inspection

Each engine shall be tested at manufacturer’s workshop to certify the engine output according to present standard and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

2.Guarantee

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.

Our Service:

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
Build customers’ profiles, follow-up service, make regular calls on customers.
