Product Details:
Payment & Shipping Terms:
|
| Key Words: | Diesel Power Generator Set | Engine Model: | Cummins, 6CTAA8.3-G2 |
|---|---|---|---|
| Alternator Brand: | Meccalte, ECO38-2S4A | Frequency: | 50Hz |
| Rated Voltage:: | 415/240 | Prime Power (kw/kva): | 160/200 |
| Standby Power(kw/kva): | 176/220 | Rated Current (A): | 278 |
| Running Noise Db(A)/7m(Silent Type): | 75(silent Type) | Control Module Brand: | SmartGen, Deepsea, ComAp |
| Battery Capacity (V-Ah): | 12V 120Ah*2 | Voltage Recovery Time: | ≤1S |
| Highlight: | Emergency Generator Set,power generating sets |
||

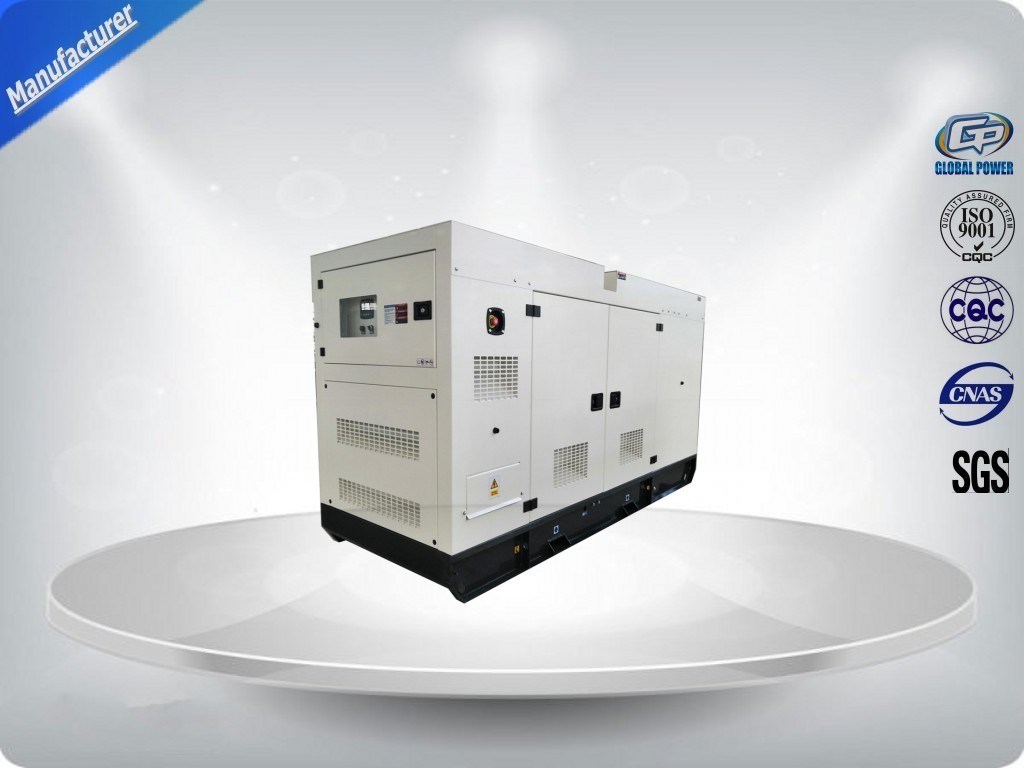

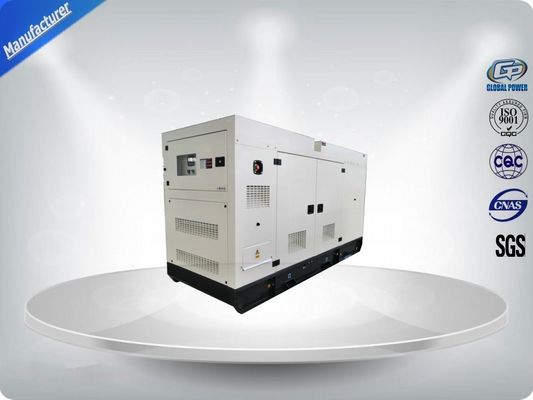

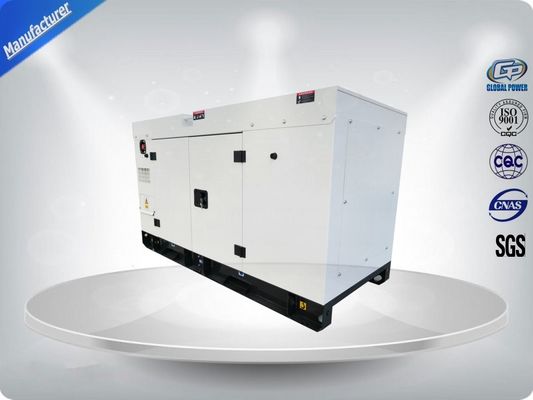

160kw / 200kva Canopy Cummins Diesel Power Generator Set With Meccalte Alternator
Model: GP C160
Cummins Diesel Generator Set Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Features and benefits
Silent Diesel Generator Set data
Diesel Generator GP C160 (three phase)
| Prime Power (kw/kva) | 160/200 |
| Standby Power (kw/kva) | 176/220 |
| Rated Voltage (V) | 415/240 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 278 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 120Ah*2 |
| Open Type-Dimension (L*W*H) (mm) | 2450*950*1500 |
| Open Type-Weight (kg) | 1570 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3200*1200*1750 |
| Soundproof Type-Weight (kg) | 2486 |
| Fuel Tank Capacity(L) | 250 |
| Continuous Running Time(hr.) | 8 |

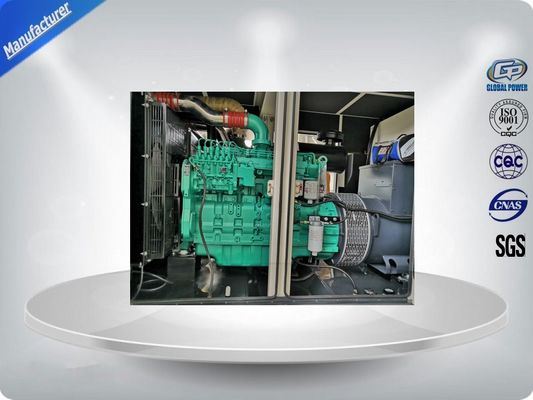

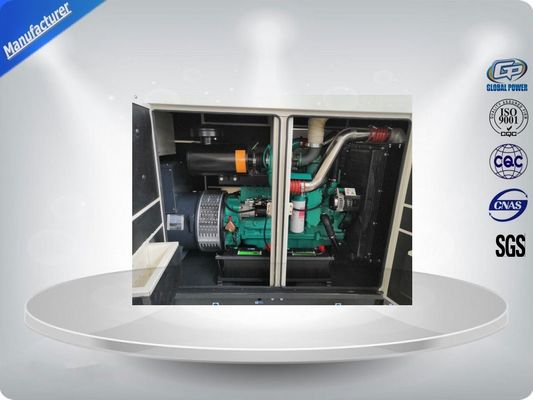

Cummins Engine specifications
Engine
Main features:
Technical data
Model 6CTAA8.3-G2
| Engine brand | Cummins |
| Output Power (kw) | 183 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.0:1 |
| Displacement (L) | 8.3 |
| Bore X Stroke (mm) | 114*135 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 40 |
| Fuel Consump. (g/kw·h) | 205 |
| Oil Capacity (L) | 23.8 |
Meccalte Alternator specifications
Alternator
Main features:
Technical data
Model ECO38-2S4A
| Alternator brand | MECCALTE |
| Rated Power (kw) | 160 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
HGM410 controller
Main features:
