Product Details:
Payment & Shipping Terms:
|
| Type: | Soundproof | Colour: | White ( Can Be Customized) |
|---|---|---|---|
| Prime Power: | 180 KVA / 144 KW | Standby Power: | 198 KVA / 158 KW |
| Engine: | Perkins 1106A-70TAG3 | Alternator: | Meccalte ECO38-1S4A |
| Dimensin(L*W*H): | 3200*1300*2000 MM | Weight: | 2400 KG |
| Highlight: | Emergency Generator Set,power generating sets |
||

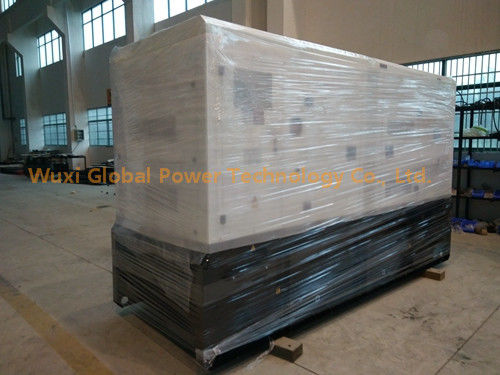

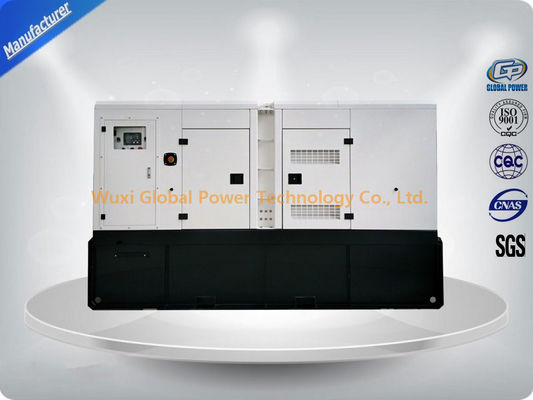

Global Power Silent Type 180 KVA / 144 KW Generator Set Powered with Perkins Engine and Meccalte Alternator
Features and benefits
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Diesel Generator GPP144 (three phase)
| Prime Power (kw/kva) | 144/180 |
| Standby Power (kw/kva) | 160/200 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 261 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2377*780*1350 |
| Open Type-Weight (kg) | 1465 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3200*1300*2000 |
| Soundproof Type-Weight (kg) | 3865 |
| Fuel Tank Capacity(L) | 350 |
| Continuous Running Time(hr.) | 8 |

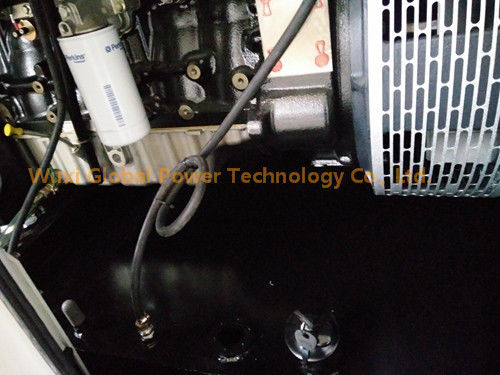

Engine technical data
Model 1106A-70TAG3
| Engine brand | Perkins |
| Output Power (kw) | 185 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16:1 |
| Displacement (L) | 7 |
| Bore X Stroke (mm) | 105*135 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 21 |
| Fuel Consump. (g/kw·h) | 222 |
| Oil Capacity (L) | 16.5 |

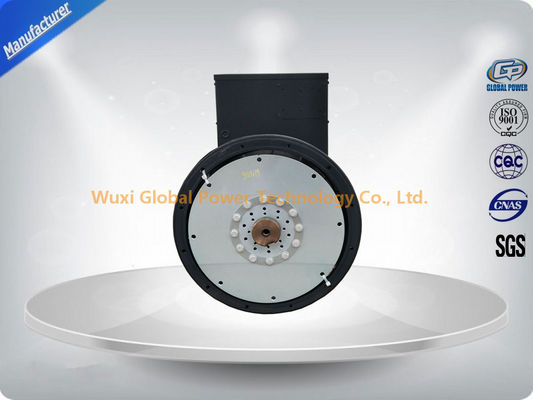

Alternator technical data
Model ECO38-1S4A
| Alternator brand | Meccalte |
| Rated Power (kw) | 144 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
