Product Details:
Payment & Shipping Terms:
|
| Engine Brand:: | MTU | Output Power (kw):: | 600-1200 Kw/ Kva |
|---|---|---|---|
| Alternator:: | Stamford / Meecalt / Copy Stamford | Engine Model:: | 12V2000G65 |
| Rated Frequency (Hz): | 50 | Type:: | Container |
| Rated Voltage (V): | 400/230 | Diesel Generator: | Three Phase |
| Highlight: | Canopy Generator Set,3 phase diesel generator |
||

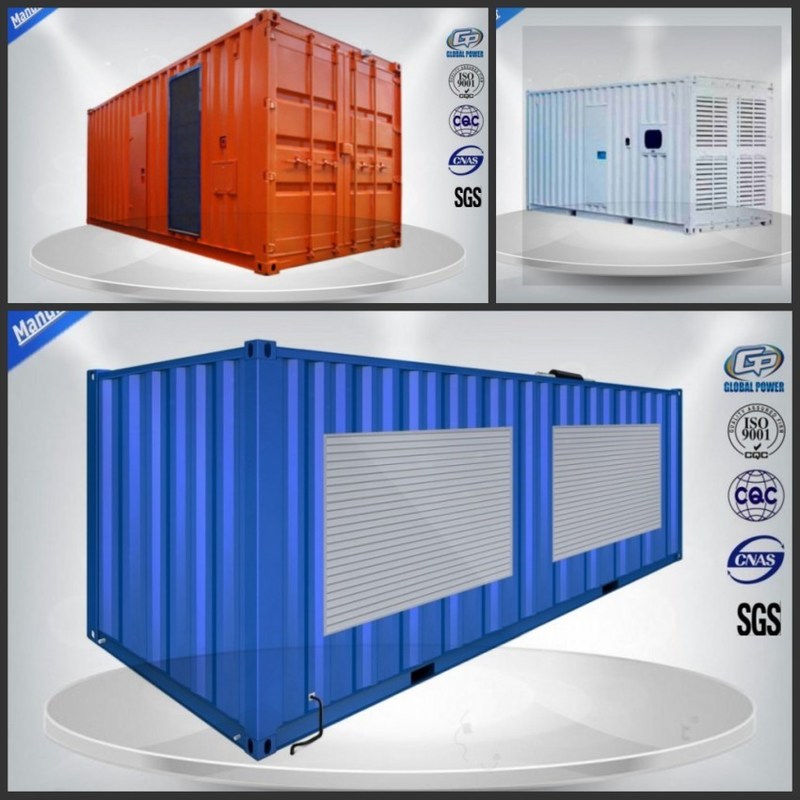

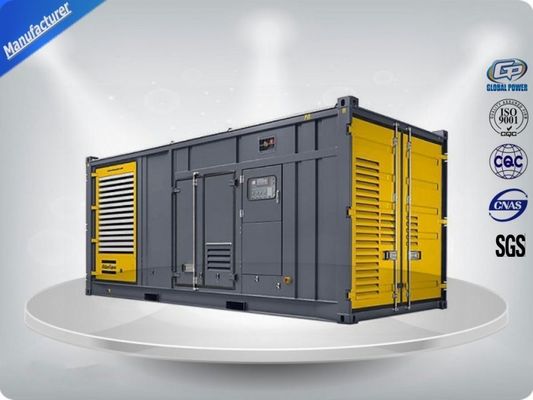

Canopy Container Generator Set
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.
Engine specifications
Engine
Main features:
l Twelve-cylinder, water-cooled, in “V” diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
Model 12V2000G65
|
Engine brand |
MTU |
|
Output Power (kw) |
695 |
|
Cylinder No. & Config. |
12,in “V” |
|
Combustion System |
direct injection |
|
Compression Ratio |
16:1 |
|
Displacement (L) |
23.88 |
|
Bore X Stroke (mm) |
130*150 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic / ADEC |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
164 |
|
Fuel Consump. (g/kw·h) |
198 |
|
Oil Capacity (L) |
77 |
Control system
DSE4620 controller
Main features:
l Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
l Security password-protected programming levels
l All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
l Power supply range is wide, accommodating to different starting battery voltage environment
l Built-in watch dog can never be dead halt, ensuring smooth program execution
l Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
