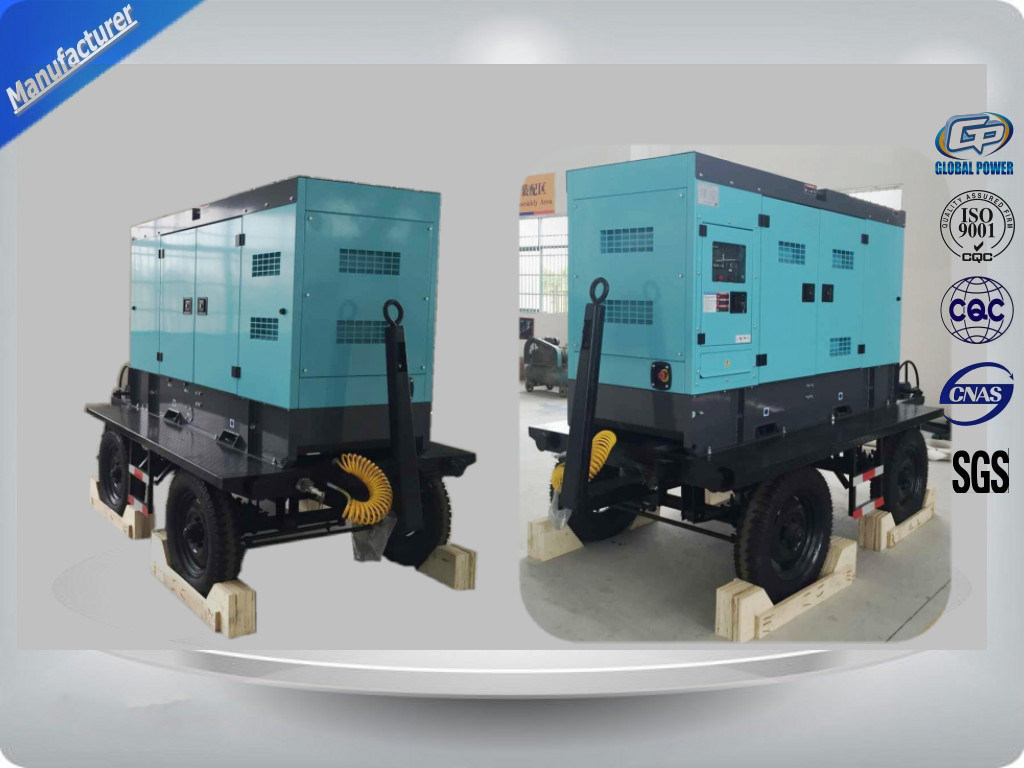

Factory Price Mounted Trailer Diesel Generator 500kva, Portable diesel genset

: Large Image : Factory Price Mounted Trailer Diesel Generator 500kva, Portable diesel genset

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	CE / ISO
Model Number:	GP C400

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets/year

Contact Now

Detailed Product Description

Engine Brand:	Cummins Diesel Engine	Engine Model:	KTA19-G3A/448
Cooling System:	Water-cooled	Rated Power:	400KW / 500KVA
Alternator Brands:	Stamford / Meecalt / Copy Stamford	Rated Current (A):	721
Output Type:	AC Three Phase	Speed:	1500/1800 Rpm
Frequency:	50 Hz / 60hz

Factory Price Mounted Trailer Diesel Generator 500kva, Portable diesel genset

Generator soundproof/Silent and canopy
1) Excellent ventilation
2) Black finish stainless steel locks and hinges
3) Zinc plated or stainless steel fasteners
4) Body made from steel components treated with polyester powder coating
5) Two large doors on either side
6) Radiator fill access plate
7) Fully guarded cooling fan and battery charging alternator
8) Fuel fill and battery access via lockable access doors
9) Emergency stop button on canopy exterior
10) Lube oil drain and radiator drain to exterior
11) Control panel viewing window
12) Lifting points on base frame

Alternator Feature
· Brush-less, 4 poles, rotation magnet.
· IP21-23(NEMA1) enclosure is standard for all industrial alternators.
· The insulation system is Class H
· Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
· Wide range of flange adaptors and single bearing disc coupling.
· Standard 2/3 pitch windings avoid excessive neutral currents
· AVR auto voltage regulator, auto exciter, auto adjustment

Standard Accessory

Common steel base frame, Circuit breaker, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.

Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, Soundproof Canopy and Moving Trailer.

ATS SYSTEM
For emergency power usage in building, Auto transfer switch (ATS) is essential. ATS can automatic transfer load from Mains power supplying to Emergency power. In normal, when the Main power supplying failure or voltage drop below 80% of normal voltage, ATS will auto start Emergency generator set after a preset time of 0-10 sec (adjustable according to the users). Once generator reach at rated speed, the ATS will transfer the load to emergency generator sets automatically.
Trailer Feature:

Using leaf spring suspension structure node with high strength and rigidity, a reasonable choice.
Trailer genset plant has a good seal, security, easy to move, flexible operation, and with a hand brake, air brake, rear light systems, in line with the requirements of the road traffic.
Widely used in construction sites, road and railway construction sites and temporary sites electricity.

GP Brand New Diesel Generator cooperates with good quality diesel engine such as Cummins/Perkins/Volvo ,etc .
We have factory for manufacturing our own alternator, also providing Stamford, Meccalte, Wattek for optional.
The controller with Deep sea, Smartgen, ComAp, etc.
Technical Specifications :

Genset	Voltage Recovery Time		≤1S
	Rated Current (A)		721
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		70
Engine	Engine brand	Cummins
	Output Power (kw)	448
	Combustion System	direct injection
	Engine Speed (r/min)	1500
	Speed Governing	Electronic
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23
