Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 200kw/250kva | Standby Power: | 220kw/275kva |
|---|---|---|---|
| Engine: | From Original Cummins Engine | Alternator Brand: | Stamford |
| Color: | Green | Type: | Open |
| Highlight: | gas turbine generator set,gas engine generator |
||

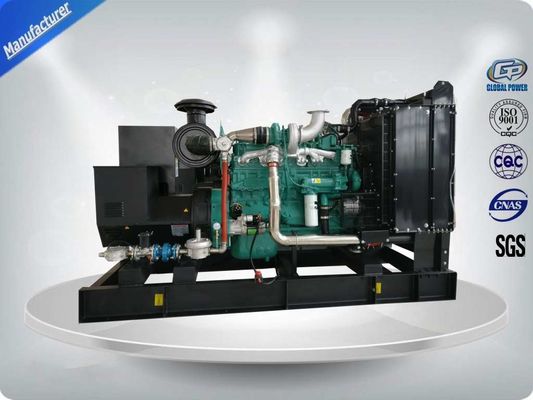

200KW Open Type Natural Gas Generator Set With Original Cummins Engine 6L14TWG1, Stamford Alternator UCDI274K
Nature gas generator feature:
1) Our engineer will install the nature gas generator on your site
2) Gas consumption: less than 0.28cbm/kWh
3) We supply you spare parts during the whole service life.
4) Nature gas generator powered by famous &good quality engine and alternator, such as Cummins, Deutz.
5) Nature gas generator with longer life: nature gas engine has a life of over several years if it is properly operated and maintained
6) Low operation cost of nature gas generator: nature gas has a rich reserve with low cost and a high rate of return
7) High profit of nature gas generator: low operation&maintenance cost, supply of electricity and thermal power at the same time.
8) Nature gas generator coupled with brushless alternators of Leroy Somer /Stamford/ Marathon, etc.
9) Well performed control system, high quality monitor instrument, with sound and light alarm devices, auto shutdown when main power on, auto start when main power off.
10) Protection function: over-current, under-voltage, auto-regulate voltage, reverse power
11) Monitor function: speed, water temperature, lub-oil temperature, lube-oil pressure, exhaust temperature
12) Supply connection: 3 phase, 4 lines
14) Rated frequency: 50Hz / 60Hz
15) Rated power factor: 0.8
16) Exciting way: brushless
17) Starting mode: 24V DC electric starting system
18) Cooling mode: closed-circuit cooling system
General data
| Engine brand | From Cummins diesel engine | Alternator brand | Stamford / copy stamford |
| Engine model | 6L14TWG1 | Alternator model | UCDI274K/200 |
| Controller | DSE7320 | Prime power | 200kw |
| Dimension | 3300*1255*2011 | Protection grade | IP23 |
| Cooling method | water cooled | Excitation mehtod | brushless |
| Start method | auto start/key start | Insulation grade | H |
Our Picture :
Warranty and Maintenance:
The advantages of home use natural gas generator
As the gas engine exhausted temperature is 20%-30% higher than diesel engines, compared to other suppliers’ gas engine, we adopt the completely computer optimized parts specially used for gas engine:
1) Special alloy intake/exhaust valves & seat rings ; pistons with heat & wear-resisting coating, specially designed combustion chamber,eradicate air leakage problem, ensure sufficient engine power.
2) Gas & air mixed out of the cylinder, mix better and burn more sufficiently.
3) Integrated control technology, adjust the gas intake quantity automatically according to the load variation.
4) Ignition coils / cables / ECU from Weichai group, Bosch electric throttle & spark plugs, USA Impco gas & air mixer, ensure the accurate gas intake volume.
5) Industrial class fire blocker, the fire or explosion accident will never happen.
