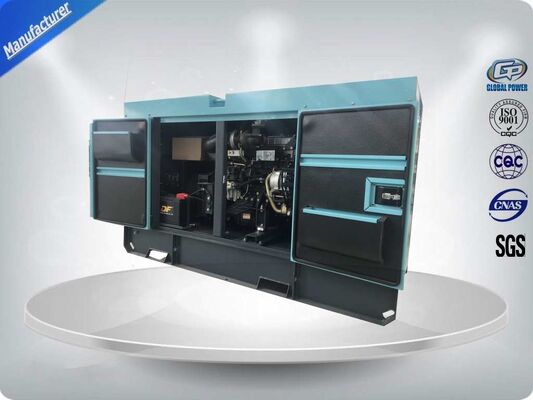

Canopy 38KW 48KVA Silent Diesel Generator Set ISUZU 4JB1TA Water Cooled

MOQ:	1 Set
Price:	Negotiable
Standard Packaging:	Plastic Foam or Plywood Case Packing
Delivery Period:	30 Working Days after Received Down-payment
Supply Capacity:	2000 Sets per Year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

OEM/ISO9001

Model Number

GP1 IS48

Prime Power:

38 KW / 48 KVA

Rated Voltage:

440V / 230V

Engine Brand:

LOVOL, CUMMINS, PERKINS, ISUZU, Etc.

Alternator Brand:

Stanford, Mecc Alte, Faraday, Copy Stamford, Etc.

Control System:

DeepSea, SmartGen, Etc.

Rated Frequency (Hz):

Highlight:

38KW Silent Diesel Generator Set

48KVA Silent Diesel Generator Set

Water Cooled dg silent generator

Product Description

Excellent Design Canopy 38 KW / 48 KVA Silent Diesel Generator Set ISUZU 4JB1TA Water-cooled

Performance of Global Power new design canopy:

1. Fit for generator of 10 KVA - 200 KVA. Humanization design is convenient to operate. AVR controller is connected to the controller system. Drain valves for water and fuel can be stretched out of the canopy through a pipe line.

2. Big capacity of fuel tank partitioned into two parts, prevent fuel leakage at special ambient.

3. Multiple lifting ways with additional dragging holes for comfortable unloading.

4. Assembled type with pieces of canopy for comfortable maintenance.

5. About safety: The emergency stop button is available without opening the door. The fan has an additional protection net. All locks are designed for theftproof style.

Diesel Generator GP1 IS48 (three phase)

Prime Power (kw/kva)	38/48
Standby Power (kw/kva)	42/52
Rated Voltage (V)	440/230
Voltage Recovery Time	≤1S
Rated Current (A)	82
Rated Frequency (Hz)	60
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	16806601000
Open Type-Weight (kg)	600
Soundproof Type- Dimension (LWH) (mm)	22009001200
Soundproof Type-Weight (kg)	1600
Fuel Tank Capacity(L)	100
Continuous Running Time(hr.)	8

Model 4JB1TA

Engine brand	ISUZU
Output Power (kw)	44
Cylinder No. & Config.	4, in-line
Combustion System	direct injection
Compression Ratio	16.5:1
Displacement (L)	3.9
Bore X Stroke (mm)	102*120
Engine Speed (r/min)	1800
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	24
Fuel Consump. (g/kw·h)	216
Oil Capacity (L)	16.4

Model GPI 184J

Alternator brand	Global Power
Rated Power (kw)	38
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1800
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

Canopy 38KW 48KVA Silent Diesel Generator Set ISUZU 4JB1TA Water Cooled 0

Canopy 38KW 48KVA Silent Diesel Generator Set ISUZU 4JB1TA Water Cooled 1

FAQ

1.What's the power range of diesel generators?

Power range from 5kva~3000kva.

2.What's the delivery time?

Delivery within 30 days after deposit confirmed.

3.What's your payment term?

1.We accept 30% T/T as the deposit,the balance payment paid before delivery

2. L/C at sight

4.What's your warranty?

Warranty is one year or 1000 hours which comes first.

5.What's your MOQ?

MOQ is 1 set.

6.What’s the frequency of diesel generators?

50/60HZ

7.What’s the voltage of your diesel generator?

Voltage is 220/380V,230/400V,240/415V, just as per your request.

Canopy 38KW 48KVA Silent Diesel Generator Set ISUZU 4JB1TA Water Cooled 2
