WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
User First, Honesty Based; Create GP-brand by Quality, Gain reputation by Service.
Product Details:
Payment & Shipping Terms:
|
| LED Lamps: | 3*100W | Speed: | 3000 / 3600rpm |
|---|---|---|---|
| Mast Height: | 6meter 358° Manual Operation | Excitation Mode: | AC Rotating Exciter |
| Usage Type: | Emergency Lighting | Cooling Method: | Water Cooling |
| Maximum Lifting Height: | 6 Meters | Mast Operated System: | Manual |
| Voltage: | 110V, 120V, 220V, 230V, 240V | ||
| Highlight: | telescopic light tower,trailer mounted light towers |
||

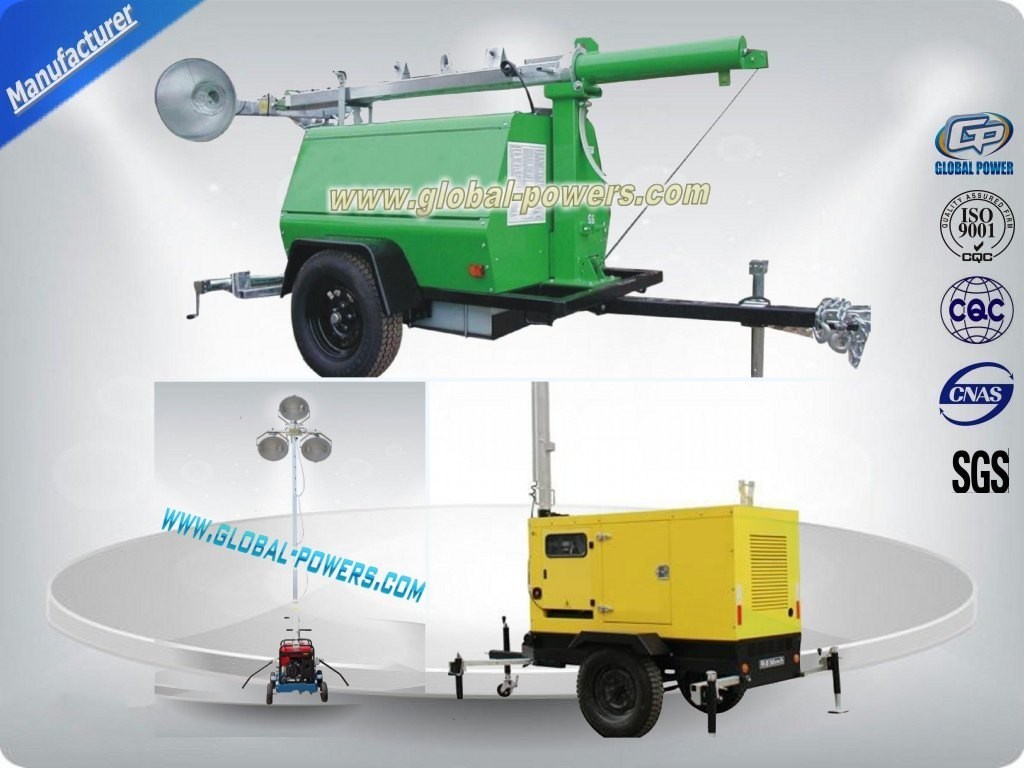

Canopy Mobile Lighting Tower , Portable Light Towers With 750W Solar Panels
1)Famous motor and generator, excellent performance, start easily;
2) metal halide lamp has long service life;
3) Anti-fall, safe and solid;
4) Hand-operated winch, lockable at any moment;
5 )Elevating frame is made of Stainless steel square pipe;
6) Elevating frame can rotate, east for light waving, overturn to intake,transport and store;
7) Plastic treated, anti-rust, anti-corrosion and beautiful
Technical Parameters:
|
Lamp pole maximum height(m) |
7m |
|
|
Engine Model |
186FAG3E |
|
|
Engine Type |
diesel, single cylinder,4 strock,Air-cooled upright type |
|
|
Engine speed (RPM) |
3600 |
|
|
Generator prime power (KVA) |
5KW |
|
|
Frequency |
60HZ |
|
|
Voltage |
120/240V |
|
|
Insulation Class |
F |
|
|
Lamps model |
E40 |
|
|
Lamps type |
Metal halide lamp |
|
|
Total power of lamps |
4*400W |
|
|
Fuel tank type |
top fuel tank |
|
|
Fuel tank capacity (L) |
33.5L |
|
|
Continuous operating (h) |
50H(4*400W) |
|
|
Luminous Flux (lm) |
4*110000lm |
|
|
Lamp pole type |
Manual |
|
|
lnclination |
<10º |
|
|
windproof Ability |
<6 |
|
|
Size(L*W*H)mm |
2380*1260*7000 |
|
|
Packing size(L*W*H)mm |
2340*1120*1100 |
|
Options:
1) Genuine Perkins 403D-11 diesel engine
2) Genuine Yanmar diesel engine
3) Changchai CZ385Q diesel engine
4) Genuine Stamford PI044F alternator
5) 60Hz America standard lights
6) Smartgen ALC700 tower lights digital controller
7) Beacon lights
8) Extend water proof sockets
9) Flood lights (4x1000W)
