Product Details:
Payment & Shipping Terms:
|
| Engine Model: | GP G8500-OE | Rated Output(kVA): | 7.5 |
|---|---|---|---|
| SILENT TYPE Dimension: | 750*500*660 | Configuration: | Single Phase, Three Loops |
| Factor: | 1.0 | Excitation Mode: | Self-excitation & Constant Voltage(AVR) |
| Rated Frequency: | 50/60 | Frame Type: | Open Frame |
| Highlight: | single phase generator,portable gasoline generator |
||
Gasoline engine portable generator powered by 10.6kva for home use low fuel consumption
Specifications
Small capacity portable gasoline engine generator set
1.Gasoline engine
2.low fuel consumption
3.High efficient
4.suitable for family use
5.small volume
Technical data
Generator
|
Frequency(Hz) |
50 |
60 |
|
|
Rated Output(kVA) |
10.6 |
11.7 |
|
|
Max Output(kVA) |
12 |
13.2 |
|
|
Voltage(V) |
|
|
|
|
Current(A) |
|
|
|
|
Configuration |
|
||
|
Factor |
Cos0.8 |
||
|
Insulation Class |
B |
||
|
Pole |
2 |
||
|
Phase |
|
||
|
Excitation Mode |
Self-excitation & constant voltage(AVR) |
||
|
Panel type |
Intelligent panel |
||
|
output |
socket |
2pc single phase socket |
|
|
Connection Pole |
Without |
||
|
DC12V Output |
Connection pole output |
||
|
Dimension (L *W*H) |
750*500*660 |
||
|
Dry weight(kg) |
110 |
||
|
Working assorting weight (Kg) |
115 |
||
|
Noise level(7m)dB(A) |
97 |
||
|
Frame type |
Open frame |
||
Engine
|
Model |
2V86F |
|
|
Engine type |
V-type, 4-stroke, Air-cooled |
|
|
Displacement(mL) |
812 |
|
|
Cylinder NO.-bore×stroke (mm) |
2-86*72 |
|
|
Max output HP(Kw/rpm) |
18/3000 |
20/3600 |
|
Max. torque (N.m/rpm) |
45/2600 |
45/2600 |
|
Fuel consumption ( g/kW.h) |
≤270 |
≤270 |
|
Capacity of Fuel Tank (L) |
5.5 |
|
|
Starting System |
Electric starter |
|
|
Compression ratio |
8.3:1 |
|
|
Continuous working hours(hr.) |
6 |
|

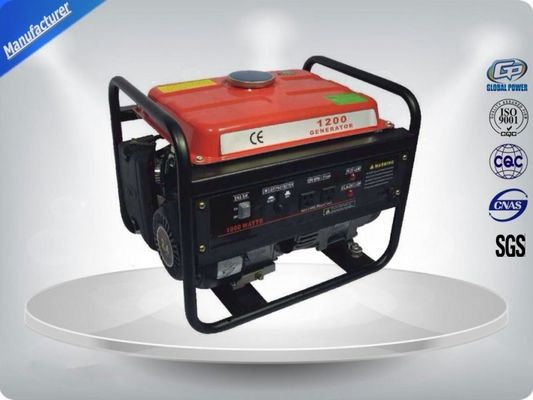

Photos:
Gasoline Generator Brief:
1) Main control parts are all the most advanced imported ones, to make more stable and reliable running.
2) Low gas pressure is acceptable, no need to set up specified gas storage tank , which will save the investment and enhance the efficient output power .
3) Self-contained parts of gensets needs few accessories
4) Economical and low-cost running.
5) The fuel of gas reduces the accumulated carbon, which lessen the damage to between cylinder and valve, therefore, it will largely prolong lifetime.
6) The installation of high-quality control cabinet set enable mutiple protection, which enhance the safety for the running of gensets.
FAQ
1.Can you do the Customized brand for us?
Yes. We make the brand name with your logo and your product model on the generator set.
2.How long can I expect to get product?
According to your order quantity, generally, After we received your deposit, we will delivery in 25-30 days.
3.What is the payment method?
Our main payment method is by T/T, 30% deposit paid in advance, and 70% balance should be paid before goods delivery.
4. What are your payment terms?
T/T 30% in advance, balanced before shipment
L/C at sight
