Product Details:
Payment & Shipping Terms:
|
| Prime Power (kva): | 6.0 | Standby Power (kw/kva): | 6.5 |
|---|---|---|---|
| Voltage(V): | 220 | Rated Voltage (V): | 400/230 |
| Configuration: | 2pc Single Phase Socket | Package: | Plastic Foam Packing Or Plywood Case |
| Noise Level（7m）dB(A): | 72 | Color: | Customized |
| Frame Type: | Silent Frame | ||
| Highlight: | quiet portable generator,portable backup generator |
||
Generator set Open Type Small Power For Home Use Portable Removeable Genset
Features and Benefits
1. Powerful Lees four-stroke engine
Lees commercial-grade OHV engines are reliable, easy-to-start and incredibly rugged.
2. Reliable and stable output
Applied the improved AVR (automatic voltage regulator), which not only
can smooth the output but also provide reasonable protection against
the overload of the whole set
3. Competitive economic operation
The high efficiency combustion system is designed to reduce the
consumption and operation cost
4. Qualified breaker, electronic elements
Ensuring high quality of generator, protect the generator from being overload
5. Compact design
Provides unparalleled power to weight ratio
6. Large steel fuel tank
For durability and extended running time
Technical Specifications:
|
Frequency(Hz) |
50 |
60 |
|
|
Rated Output(kVA) |
6.0 |
6.5 |
|
|
Max Output(kVA) |
6.5 |
7.0 |
|
|
Voltage(V) |
115/230/400 |
120/240/400 |
|
|
Current(A) |
39.2/19.6 |
41.7/20.8 |
|
|
Configuration |
Single phase, three loops |
||
|
Factor |
1.0 |
||
|
Insulation Class |
B |
||
|
Pole |
2 |
||
|
Phase |
1 |
||
|
Excitation Mode |
Self-excitation & constant voltage(AVR) |
||
|
Panel type |
General panel |
||
|
output |
socket |
2pc single phase socket |
|
|
|
Connection Pole |
Without |
|
|
|
DC12V Output |
DC receptacle output |
|
|
Dimension (L *W*H) |
950*560*750 |
||
|
Dry weight(kg) |
170 |
||
|
Working assorting weight (Kg) |
180 |
||
|
Noise level(7m)dB(A) |
72 |
||
|
Frame type |
Silent frame |
||
Engine
|
Model |
GP 188F |
|
|
Engine type |
Vertical,4 stroke, Air cooled, direct injection |
|
|
Displacement(mL) |
456 |
|
|
Cylinder NO.-bore×stroke (mm) |
1-86×72 |
|
|
Rated power(kW) |
5.7 |
6.3 |
|
Rated rotation speed(r/min) |
3000 |
3600 |
|
Fuel consumption ( g/kW.h) |
275.1 |
281.5 |
|
Capacity of Fuel Tank (L) |
16 |
|
|
Starting System |
Electric starter |
|
|
Compression ratio |
19:1 |
|
|
Continuous working hours(hr.) |
9.5 |
|
Product superiority:

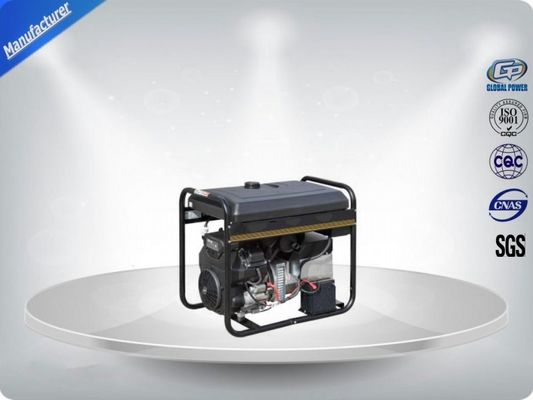

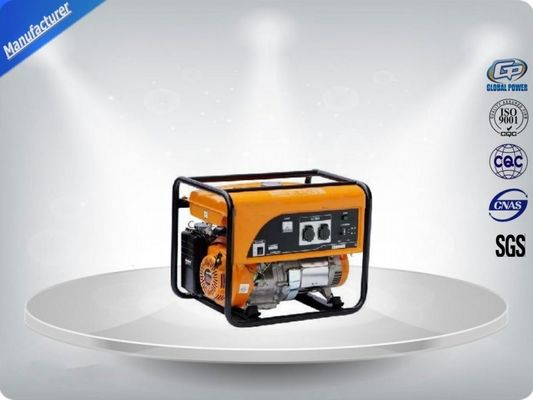

Photos:
Competitive service:
1) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and leading times.
3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.
5) 1000 hours warranty on the spare parts free provide & technical support in machine life.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
