Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Cummins | Engine Model: | NTAA855-G7A |
|---|---|---|---|
| Output Power (kw): | 370 | Rated Frequency (Hz): | 50 |
| Alternator: | Stamford / Meecalt / Copy Stamford | Canopy Size (l*w*h/mm）: | 4100*1400*2100 |
| Canopy Weight(KG): | 7650 | Type: | Slient |
| Highlight: | gas turbine generator set,gas powered generators |
||

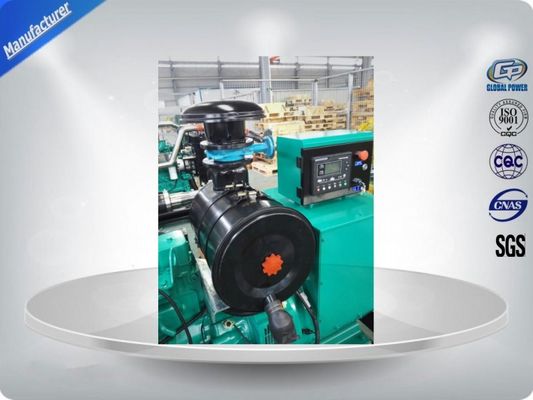

80KW Gas Generator Cummins Gas Engine Methane Genset Biogas Generator Set
Tech data :
| Generator Model | GPBG-80CS-1 | |||
| Prime Power (KW/KVA) | 72 / 90 |
Standby Power @1500rpm (KW/KVA) |
80 / 100 | |
| Rated Current (A) | 130 | Stabilized Voltage Regulation | ±1.0% | |
| Gas Engine Model | GTA5.9-G2 | Alternator Insulation Class | H | |
| Alternator Model(Stamford) | UCI274C | 100% Load Gas Consumption(m3/h) | 47 | |
| Number and type of cylinder | 6,in-line | Lubrication Oil Volume(L) | 11.5 | |
| Bore*Stroke(mm) | 102*120 | Cooling Liquid Volume(L) | 16 | |
| Compression Ratio | 10.5:1 | Size | Length(mm) | 2400 |
| Emission(L) | 5.9 | Width(mm) | 870 | |
| Starting Battery(AH) | 95*2 | Height(mm) | 1580 | |
| Starting Battery Voltage(V) | 24 | Generator Weight(kg) | 1750 | |

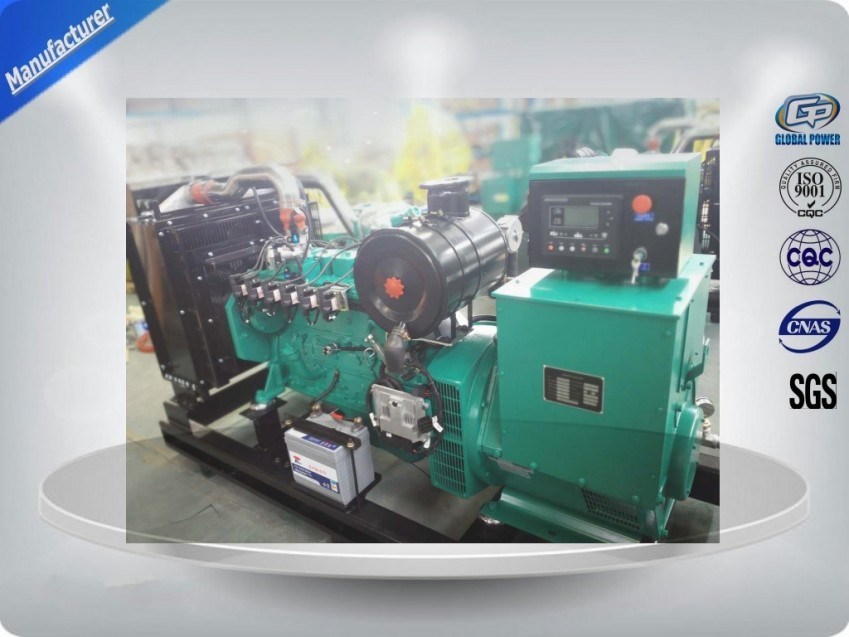

photos :
Generator
Highly efficient and energy saving
Energy equipment is operated for power supply close to the users without transportation and distribution loss to reduce environment pollution and save energy with utilization of waste gas.
Environmentally friendly
Compared with traditional fuel coal and fossil energy, reduce the emission of the NOX and CO2 by 60%-80% with nearly zero SO2 and dust emission.
Economical
For the same quantity of power generated, the price of gas fuel is lower than gasoline is lower than gasoline and diesel oil by 30-50%.
Wide application
Applicable in various industries: renewable gas, usable waste gas, oil field power, etc.
Warranty and Maintenance:
Our service :
1)Before-sale Service:
we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance:
our sale staffs are all experience and professional,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent
maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
