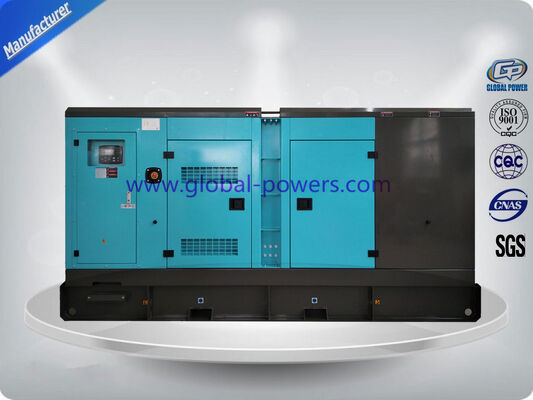

Soundproof Low Noise Cummins Diesel Generator with New Designed Canopy Emergency Power

Main Features of Global Power Generator Set:

1. Be the result of technological research and development.

2. Detail oriented, with firmly connected parts and unique wire connection.

3. With safe and reliable system for greatly reducing low voltage, high water temperature, over speed, over / under voltage and over current.

4. Elegant appearance with compact structure.

5. Global Power Generators provide super power supply for global factories, hospitals, shopping malls, residence, field operation, marine, transportation, communications, etc.

Generator Data GP C250	Prime Power (kw/kva)	250/313
	Standby Power (kw/kva)	275/344
	Rated Voltage (V)	400/230
	Voltage Recovery Time	≤1S
	Rated Current (A)	451
	Rated Frequency (Hz)	50
	Frequency Recovery Time	≤5S
	Wave Distortion	≤5%, sine wave
	Running Noise db(A)/7m(Silent type)	75
	Battery capacity (V-Ah)	12V 100Ah
	Open Type-Dimension (L*W*H) (mm)	2880*1000*1700
	Open Type-Weight (kg)	2400
	Soundproof Type- Dimension (L*W*H) (mm)	3950*1400*1950
	Soundproof Type-Weight (kg)	6100
	Fuel Tank Capacity(L)	600
	Continuous Running Time(hr.)	8

Engine Data MTA11-G3	Engine brand	Cummins
	Output Power (kw)	284
	Cylinder No. & Config.	6, in-line
	Combustion System	direct injection
	Compression Ratio	15.0:1
	Displacement (L)	14
	Bore X Stroke (mm)	125*147
	Engine Speed (r/min)	1500
	Speed Governing	Electronic
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
	Coolant capacity (L)	61
	Fuel Consump. (g/kw·h)	188
	Oil Capacity (L)	39

Alternator Data HCI444ES	Alternator brand	Stamford
	Rated Power (kw)	260
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Voltage accuracy	≤±1%
	Protection Grade	IP23
	Telephone Influence Factor	TIF＜50
	Harmonic Coefficient	THF＜2%

Control System HGM6110

1.manual / auto start and protection moudle 2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems. 3.New integrated controllers in manual and remote start application. 4.Featuring full gen-set monitoring and protection. 5.Powerful graphic display, Icons, symbols and bar graphs 6. High functionality set new standards in gen-set control.

Company profile

Wuxi Global Power Technology CO., Ltd. have been engaged in research, development, manufacture and sales of energy-saving and environment-friendly generating sets, related parts and supporting equipment.

Our company has passed the quality management system certification of ISO9000 and environmental management system certification of ISO14000, fully certified, full compliance with industry standards at domestic and abroad.

Global power, as a strategic partner and designated OEM manufacturer of American Cummins (CUMMINS), UK Perkins (PERKINS), Volvo (VOLVO), UK Stanford (STAMFORD) in China has been keeping a steady, friendly and long-term cooperation with world leading companies.

Package and Shipment:

Product Quality Commitment

1. All products are new products, and meet the present national standard, international standard as well as the industrial standards

2. All products are manufactured according to the ISO9001 Quality Management System strictly.

3. All products are commissioned and tested strictly according to present standard.

4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.

5. All spare parts are original ones.

Service Commitment

1. Pre-sale service

Suggest the best choice or referential suggestion based on customer’s information. Offer the suggestion or service of the installation to customer if needed. Answer all questions about the product from customer.

2. Sale of service

Offer the installation index by the professionals. The training or relative files of the operation & maintenance to the customers.

3. After-sale service

Warranty time: one year or 1000 running hours, whichever comes first. Build customers’ profiles, follow-up service, make regular calls on customers.
