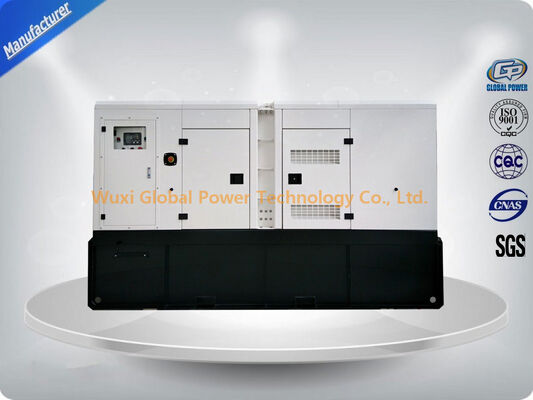

180KVA 144KW Silent Global Power Generators
  • name
  • name
  • name
  • name

180KVA 144KW Silent Global Power Generators

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plastic foam or plywood case packing
Delivery Period: 30 working days after received down-payment
Supply Capacity: 2000 Sets per Year
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
OEM / ISO9001
Model Number
GPP144
Type:
Soundproof
Colour:
White ( Can Be Customized)
Prime Power:
180 KVA / 144 KW
Standby Power:
198 KVA / 158 KW
Engine:
Perkins 1106A-70TAG3
Alternator:
Meccalte ECO38-1S4A
Dimensin(L*W*H):
3200*1300*2000 MM
Weight:
2400 KG
Highlight:

180kva diesel generator set

,

180kva diesel electric generator

,

144kw diesel generator set

Product Description

Global Power Silent Type 180 KVA / 144 KW Generator Set Powered with Perkins Engine and Meccalte Alternator



Features and benefits



1. Tightly structure, excellent design and craft

2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)

3. Self-diagnostic capability simplifies troubleshooting

4. LCD display shows system status and setup information

5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality

6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.

7. Enclosed muffler for added quietness

8. Service and maintenance accessible through easy-latch side service door

180KVA 144KW Silent Global Power Generators 0Diesel Generator GPP144 (three phase)

Prime Power (kw/kva) 144/180
Standby Power (kw/kva) 160/200
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 261
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 75
Battery capacity (V-Ah) 12V 100Ah
Open Type-Dimension (L*W*H) (mm) 2377*780*1350
Open Type-Weight (kg) 1465
Soundproof Type- Dimension (L*W*H) (mm) 3200*1300*2000
Soundproof Type-Weight (kg) 3865
Fuel Tank Capacity(L) 350
Continuous Running Time(hr.) 8



180KVA 144KW Silent Global Power Generators 1



Engine technical data

Model 1106A-70TAG3

Engine brand Perkins
Output Power (kw) 185
Cylinder No. & Config. 6, in-line
Combustion System direct injection
Compression Ratio 16:1
Displacement (L) 7
Bore X Stroke (mm) 105*135
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 21
Fuel Consump. (g/kw·h) 222
Oil Capacity (L) 16.5



Alternator technical data

Model ECO38-1S4A

Alternator brand Meccalte
Rated Power (kw) 144
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%



180KVA 144KW Silent Global Power Generators 2



WUXI GLOBAL POWER TECHNOLOGY CO., LTD

Add: E1 Building, No. 20 Dingxiang East Rd, Binhu District, Wuxi,Jiangsu, China

Zip Code: 214161

Tel: 86-510-85748495/13921154615

Email: czh@global-powers.com

Website:www.global-powers.com
