140KW 175KVA Cummins Open Diesel Generator

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP C128

Engine Brand:

Cummins

Engine Model:

6BTAA5.9-G12

Output Power:

140 Kw

Type:

Alternator:

Stamford / Meecalt / Copy Stamford

Fuel Tank Capacity:

250 L

Rated Voltage:

400 / 230 V

Dimension (l*w*h/mm）:

Dimension

Weight:

3450 KG

Control Module:

DeepSea , Comap , Smartgen.

Highlight:

140kw open generator set

140kw open diesel generator

175kva open generator set

Product Description

Cummins Open Diesel Generator

Our Features :
1) Universal design and manufacture
2) Engineers are familiar with diesel generators powered by Cummins engine
3) You could find spare-parts easily.
4) Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
5) Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
6) Enclosed muffler for added quietness
7) Service and maintenance accessible through easy-latch side service door

Technical Specifications :

Genset	Prime Power (kw/kva)		128 / 160
	Standby Power (kw/kva)		141 / 176
	Voltage Recovery Time		≤1S
	Rated Current (A)		231
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		250
Engine	Engine brand	Cummins
	Output Power (kw)	140
	Cylinder No. & Config.	4, in-line
	Combustion System	direct injection
	Compression Ratio	17:1
	Displacement (L)	8
	Bore X Stroke (mm)	112*135
	Engine Speed (r/min)	1500
	Fuel Consumption (g/kw·h)	208
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Control system

Brand: DeepSea,Comap,Smartgen

feature:

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

Our Picture :

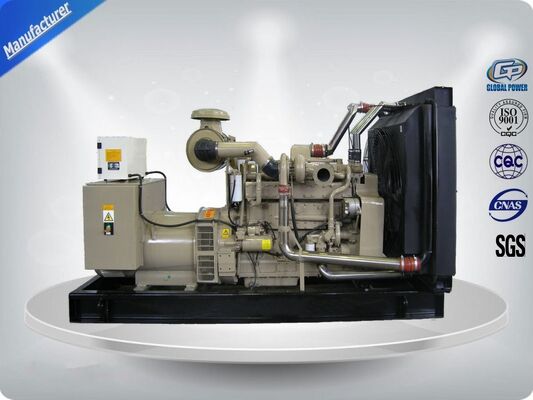

140KW 175KVA Cummins Open Diesel Generator 0

Guarantee;
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.

Our Service:
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
2. Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
3. Build customers’ profiles, follow-up service, make regular calls on customers.
