1000KW Open Diesel Power Generator Set With 16 Cylinder Cummins KTA50-G3
  • name
  • name

1000KW Open Diesel Power Generator Set With 16 Cylinder Cummins KTA50-G3

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plastic foam or plywood case packing
Delivery Period: 30 working days after received down-payment
Supply Capacity: 2000 Sets per Year
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
OEM / ISO9001
Model Number
GPC1000
Product Name:
Diesel Power Generating Sets
Prime Power:
1000KW / 1250KVA
Standby Power:
1100KW / 1375KVA
Engine Brand:
CUMMINS
Engine Model:
KTA50-G3
Alternator Brand:
STAMFORD
Alternator Model:
LV634G
Dimension(L*W*H):
4950*2253*2400 MM
Weight:
8500KG
Highlight:

1000KW diesel power generator set

,

16 Cylinder diesel power generator set

,

1250KVA diesel engine genset

Product Description

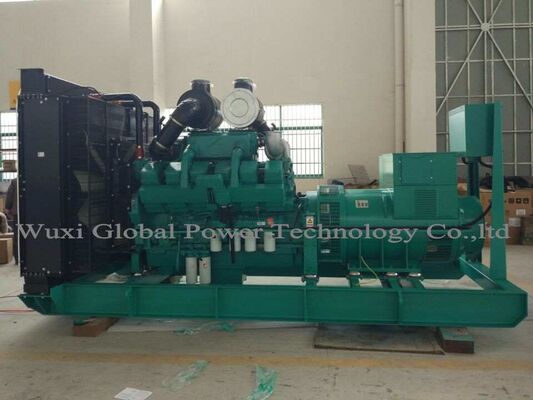

1000 KW Open Diesel Generator Set Powered by Cummins KTA50-G3 And STAMFORD LV634G

Global Power Cummins generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.


1000KW Open Diesel Power Generator Set With 16 Cylinder Cummins KTA50-G3 0

Diesel Generator GPC1000 (three phase)

Prime Power (kw/kva) 1000/1250
Standby Power (kw/kva) 1100/1375
Rated Voltage (V) 400/230
Voltage Recovery Time ≤1S
Rated Current (A) 1803
Rated Frequency (Hz) 50
Frequency Recovery Time ≤5S
Wave Distortion ≤5%, sine wave
Running Noise db(A)/7m(Silent type) 115
Battery capacity (V-Ah) 12V 100Ah
Open Type-Dimension (L*W*H) (mm) 4950*2253*2400
Open Type-Weight (kg) 8500
Continuous Running Time(hr.) 6



Model KTA50-G3

Engine brand Cummins
Output Power (kw) 1087
Cylinder No. & Config. 16,in “V”
Combustion System direct injection
Compression Ratio 13.9:1
Displacement (L) 50
Bore X Stroke (mm) 159*159
Engine Speed (r/min) 1500
Speed Governing Electronic
Starting System 24V DC Electric
Filter System Dry oil filter/Fuel filter/Oil filter
Cooling system Water-cooled
Coolant capacity (L) 300
Fuel Consump. (g/kw·h) 197
Oil Capacity (L) 177




Model LV634G

Alternator brand Stamford
Rated Power (kw) 1001
Excitation System Brushless, self-exciting
Voltage Regulation Mode AVR
Connection Type 3phase,4wires,”Y” connection
Pole No. 4
Rotation Speed (r/min) 1500
Temperature Rise (℃) 125
Insulation class H
Voltage Regulation (0 load) ≥95%～105%
Voltage accuracy ≤±1%
Protection Grade IP23
Telephone Influence Factor TIF＜50
Harmonic Coefficient THF＜2%





1000KW Open Diesel Power Generator Set With 16 Cylinder Cummins KTA50-G3 1

Generator Sets Standard and Optional Features

Engine:

  1. Sixteen-cylinder, water-cooled, in “V” diesel engine
  2. Standard air filter
  3. Standard fuel filter
  4. Standard oil filter
  5. Oil temperature sensor
  6. Low coolant level sensor
  7. 24V electrical system
  8. Radiator with blowing fan
  9. Industrial silence
  10. Fuel water separator (optional)
  11. Water jacket heater (optional)

Alternator:

  1. Class H insulation
  2. IP23 Protection
  3. Automatic Voltage Regulator (AVR)
  4. PMG excitation
  5. Single bearing alternator
  6. Stamford alternator


Electrical system:

  1. DSE 7320 control module
  2. Maintenance-free and anti-explosion battery
  3. Standard breaker
  4. ABB breaker (optional)
  5. ATS (optional)
  6. Battery charger (optional)
  7. GMS monitoring (optioanl)

Packing:

  1. Engine manual
  2. Alternator manual
  3. Gensets operation and maintenance manual
  4. Tool kit

Baseframe:

  1. Forklift pockets
  2. Pulling slots
  3. Earth wire protection
  4. Built-in anti vibration mountings
  5. Fuel outlet value
  6. Standard 8 hours fuel tank
  7. Enlarged 24 hours fuel tank (optional)
  8. Separated fuel tank (optional)

1000KW Open Diesel Power Generator Set With 16 Cylinder Cummins KTA50-G3 2
