Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | VOLVO | Engine Model: | TAD1641GE |
|---|---|---|---|
| Altenrator Brand: | Stamford | Alternator Model: | HCI544C |
| Rated Power: | 500 KVA / 400 KW | Rated Voltage: | 400V/230V |
| Dimension(L*W*H): | 4300*2100*2200 MM(Soundproof Type) | Weight: | 6400 KG (Soundproof Type) |
| Highlight: | Emergency Generator Set,power generating sets |
||

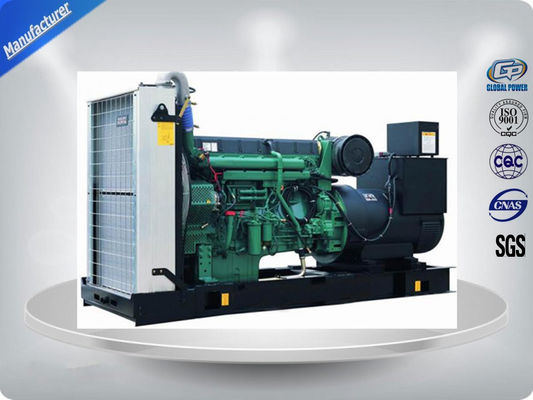

500 KVA / 400 KW Diesel Generator Set Powered with VOLVO Engine US Tier 2
Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

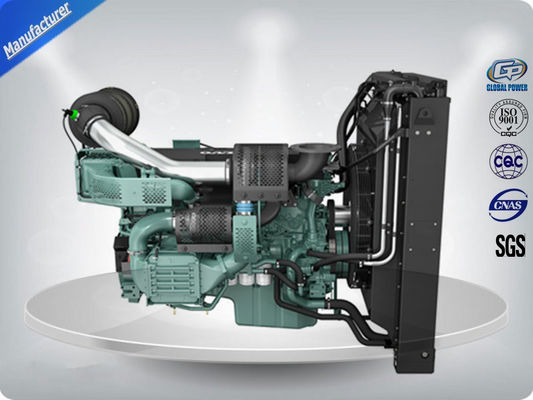

Main features of VOLVO engine:
Durability and low noise levels
Designed for the easiest, fastest and most economical installation. Well-balanced to produce smooth and vibration-free operation with low noise level. To maintain a controlled working temperature in cylinders and combustion chambers, the engine is equipped with piston cooling. The engine is also fitted with replaceable cylinder liners and valve seats/guides to ensure maximum durability and service life of the engine.
Low exhaust emission levels
The state of the art, high-tech injection and highly efficient charge air system with low internal losses contributes to excellent combustion and low fuel consumption. The TAD1341GE is EU Stage 2
emission certified. An electronically controlled viscous fan drive is available giving substantially lower noise and fuel consumption.
Easy service and maintenance
Easily accessible service and maintenance points contribute to the ease of service of the engine.
Generator Set Specification
Global Power GPV 400
| Model | Generantor Sets (50Hz) | Engine (50Hz) | Alternator(50Hz) | |||
| Standby Power |
Prime Power |
Brand | Model | Brand | Model | |
| GPV400 | 550kva/440kw | 500kva/400kw | Volvo | TAD1641GE | Stamford | HCI544C |
230/400VAC,50Hz,0.8PF (lag),Three phase four wire
Dimension(L*W*H):3212*1160*1881MM(Open Type), 4300*2100*2200MM (Soundproof Type)
Weight: 3160KG (Open Type), 4900KG (Soundproof Type)

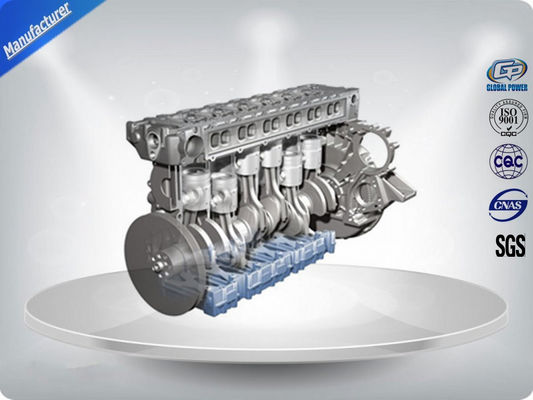

Engine Specification
Model TAD1641GE
| Engine brand | Volvo |
| Output Power (kw) | 473 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.5:1 |
| Displacement (L) | 16.12 |
| Bore X Stroke (mm) | 144*165 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 60 |
| Oil Capacity (L) | 48 |

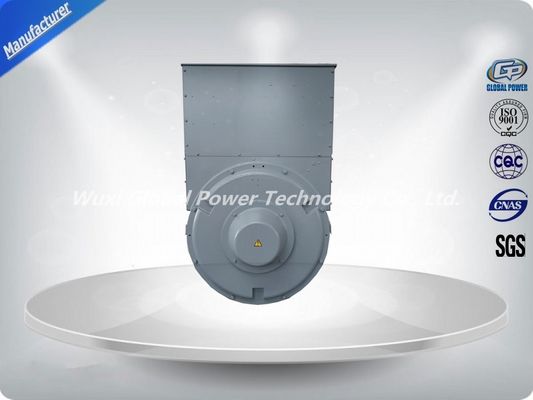

Alternator Specification
Model HCI544C
| Alternator brand | Stamford |
| Rated Power (kw) | 400 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Wuxi Global Power is the professional manufacturer of generator sets. We are specialized in producing diesel generator, gasoline generators, and natural gas generators for many years.With competitive generator price.
1. Offer the main power range from 5kva~2500kva.
2. Powered by the famous engines like Cummins, Deutz, Perkins, Volvo, Mitsubishi, Lovol, Isuzu, Doosan engines etc.
3. Standard high-level quality alternator to be used producing the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.
5. All spare parts serviced directly by our company.
6. We are confirmed as the OEM factory by many those engine factories and alternator factories.
Our experience
We are specialized in producing diesel generator for many years. We have exported to many countries and widely used in domestic.
Our service
1. Presale service: Select proper genset, installation recommendation and technical support,special equipping design
2. In-sale service: Application tech support, installation test installation recommendation
3.After-sale service: Tech training,outstanding maintenance,operator training
4. Lifetime service: Maintenance service,tech consultancy,components supply
