Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | CUMMINS | Engine Model: | NTAA855-G7A |
|---|---|---|---|
| Altenrator Brand: | Stamford | Alternator Model: | HCI444F |
| Rated Power: | 400 KVA / 320 KW | Rated Voltage: | 400V/230V |
| Dimension(L*W*H): | 3035*1000*1750MM | Weight: | 3200KG |
| Highlight: | Emergency Generator Set,power generating sets |
||

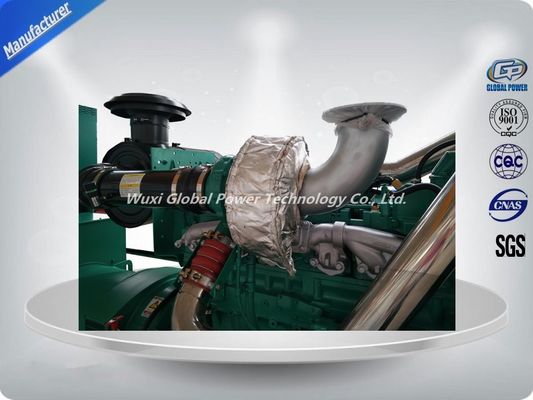

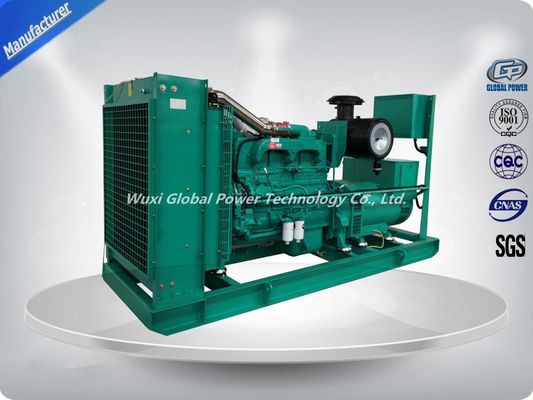

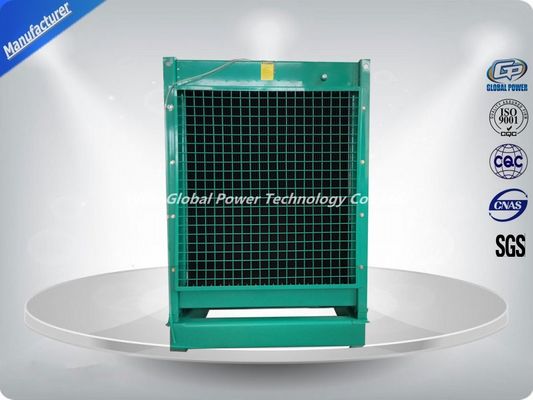

400 KVA / 320 KW Cummins Diesel Generator Set with 50 °C Copper Radiator
The generator sets is adopted the original Cummins and widely used in army,engineering,mining industry,lower fuel consumption,lower noise,low exhaust.
Detail specs of Cummins diesel generator set, engin and alternatoras separately follows:
| 1.Gen-set |
Genset feature: 1. Tightly structure, excellent design and craft 2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m) 3. Self-diagnostic capability simplifies troubleshooting 4. LCD display shows system status and setup information 5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality 6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load. 7. Enclosed muffler for added quietness Service and maintenance accessible through easy-latch side service door
|
|
| The model of the unit: | GPC320 | |
| Prime Power: | 320 KW / 400 KVA | |
| Standby Power: | 352 KW / 440 KVA | |
| Rated voltage: | 400 V / 230 V | |
| Rated current: | 577 A (adjustable) | |
| Rated frequency: | 50 Hz | |
| The factor of rated power | COS=0.8(lag) | |
| Speed: | 1500 RPM | |
| Phase: | 3 PH | |
| Net Weight: | 3200 KG | |
| size(mm): | 3035*1000*1750 | |
| 2.Engine |

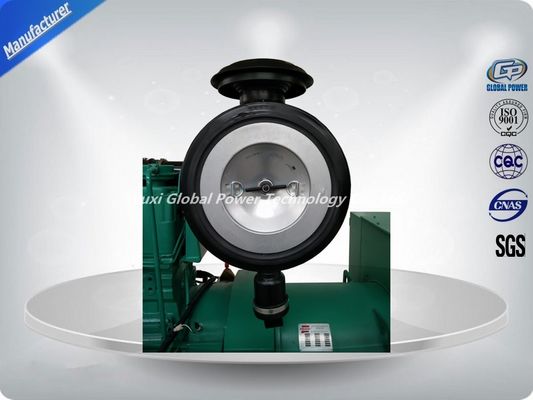

Engine Feature 1. Six-cylinder, water-cooled, in-line diesel engine 2. Efficient fuel system for max power output and durability 3. Large-capacity air cleaner 4. Cost effective, fuel efficient and reliable performance 5. Functional engine with compact structure 6. Excellent after-sales service and sufficient spare parts supplying 7. Easy installation and ready access for routine maintenance
|
||
| Brand: | Cummins | ||
| Model: | NTAA855-G7A | ||
| Type: | four strokes, waste gas turbine boost,direct spurting type | ||
| Cooling way: | water cooling | ||
| With Type: | Inline type | ||
| Bore *Trip : | 140 mm * 152 mm | ||
| Displacement | 14 L | ||
| Oil capacity: | 36.7 L | ||
| Cylinder: | 6 cylinders | ||
| Rotating speed: | 1500 R / Min | ||
| Starting way: | DC24V starting with electricity | ||
| 3.Alternator |
Alternator Feature 1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions 2. 2/3 pitch winding as standard, to avoid excessive neutral currents 3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings 4. Easy access for installation and maintenance 5. IP23 as standard 6. Self-excited control system 7. Resist of corruption of oil and acid
|
|
| Brand: | Stanford | |
| Model: | HCI444F | |
| Type: | brushless (AVR automatic voltage regulating) | |
| The connecting way of the phase: | three phases four lines | |
| Insulation degree: | H degree | |
| Grading Protection: | IP23 | |
Control System Feature
1.manual / auto start and protection moudle
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.
3.New integrated controllers in manual and remote start application.
4.Featuring full gen-set monitoring and protection.
5.Powerful graphic display, Icons, symbols and bar graphs
6. High functionality set new standards in gen-set control.
Our service
1. Presale service: Select proper genset, installation recommendation and technical support,special equipping design
2. In-sale service: Application tech support, installation test installation recommendation
3.After-sale service: Tech training,outstanding maintenance,operator training
4. Lifetime service: Maintenance service,tech consultancy,components supply
FAQ
1.What's the power range of diesel generators?
Power range from 5kva~3000kva.
2.What's your payment term?
1.We accept 30% T/T as the deposit,the balance payment paid before delivery
2. L/C at sight
3.What's your warranty?
Warranty is one year or 1000 hours which comes first.
4.What's your MOQ?
MOQ is 1 set.
5.What’s the frequency of diesel generators?
50/60HZ
6.What’s the voltage of your diesel generator?
Voltage is 220/380V,230/400V,240/415V, just as per your request.
