Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | CUMMINS | Engine Model: | KTA19-G3 |
|---|---|---|---|
| Altenrator Brand: | Stamford | Alternator Model: | HCI544C |
| Rated Power: | 450 KVA / 360 KW | Rated Voltage: | 400V/230V |
| Dimension(L*W*H): | 3450*1250*1930MM | Weight: | 3900 KG |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

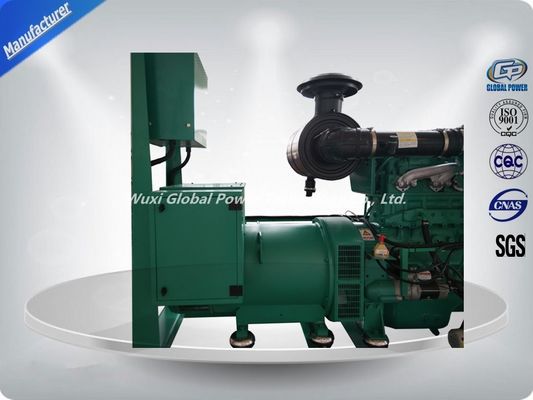

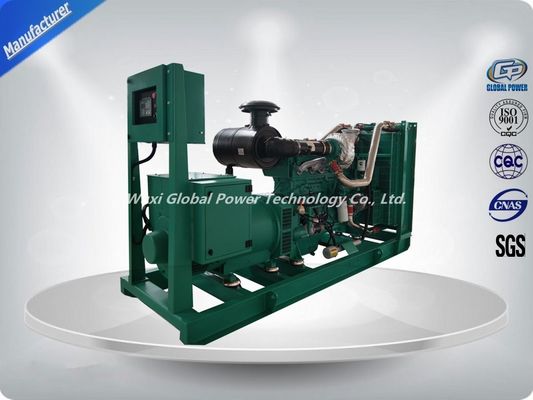

CUMMINS 360 KW / 450 KVA Open Generator Set with KTA19-G3, Price and Specification
Specifications
Diesel Generator
1) Type:.360 KW / 450 KVA
2) Cetificate: CE
2) With Automatic Transfer System
3) Place of origin:Wuxi, Jiangsu, China
360 KW / 450 KVA Open Diesel Generator
Model: GPC360-2
Power Output (Prime): 360 KW/ 450 KVA | Weight: 3900kg(Net) |
Features and benefits
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door

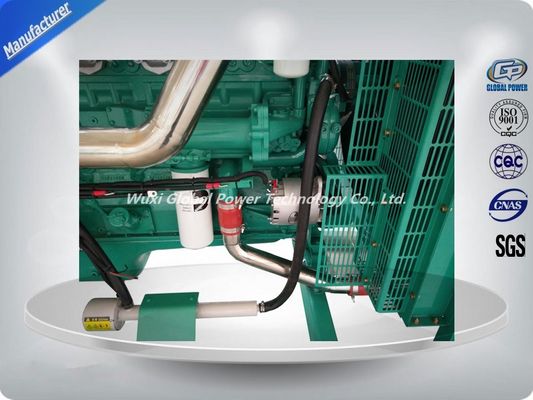

Diesel Engine:
Brand: CUMMINS | Compression Ratio: 14.5:1 |
Engine Feature
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals

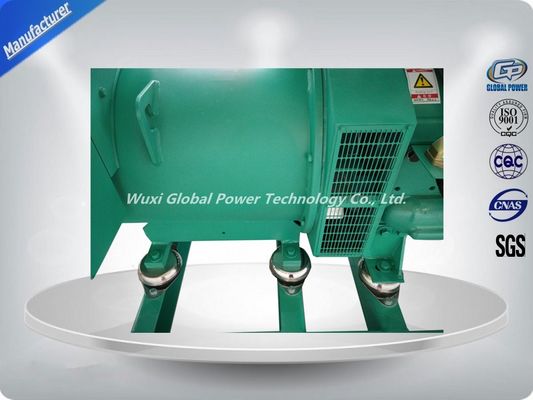

Alternator:
Brand: STAMFORD | Vol. Control Method: AVR(Automatic Voltage Regulation) |
Alternator Feature:
1. Brush-less, 4 poles, rotation magnet.
2. IP21-23(NEMA1) enclosure is standard for all industrial alternators.
3. The insulation system is Class H
4. Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
5. Wide range of flange adaptors and single bearing disc coupling.
6. Standard 2/3 pitch windings avoid excessive neutral currents
7. AVR auto voltage regulator, auto exciter, auto adjustment
