Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 250kw | Engine: | Kofo WT12D-308 |
|---|---|---|---|
| Alternator: | Wattek WHI4DC | Standby Power: | 250 Kw / 313 Kva |
| Rated Current: | 451 | Start Way: | Electric |
| Coolong System: | Water-cooled | Displacement: | 11L |
| Highlight: | brushless synchronous generator,engine generator set |
||

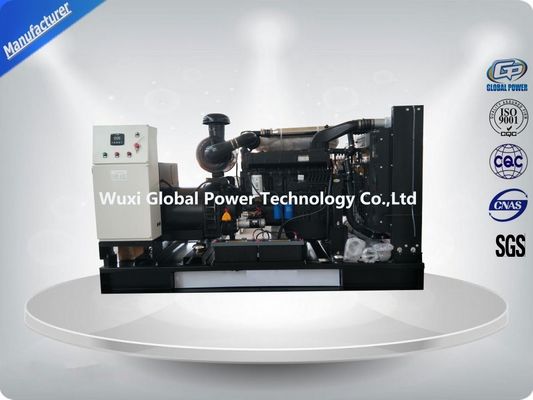

Low Noise Weichai / Kofo / Ricardo Open Diesel Gen Set 250 Kw / 313 Kva Prime Power With ATS
Our advantages :
1) Engine low fuel consumption.
2) All orignal engines and alternators.
3) The components we use are in high quality.
4) The canopy design is user friendly, and easy for maintenance.
5) Pre and after sales service is provided.
6) Fast response for the inquires, service, etc.
Technical Specifications :
Genset:
| Prime Power (kw/kva) | 250/313 |
| Standby Power (kw/kva) | 280/350 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 451 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2880*1000*1700 |
| Open Type-Weight (kg) | 2400 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3950*1400*1950 |
| Soundproof Type-Weight (kg) | 6100 |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |
| Engine brand | Kofo | Alternator brand |
Wattek |
| Model | WHI4DC | Model |
WHI 4DC |
| Output Power (kw) |
284 |
Rated Power (kw) |
250 |
| Cylinder No. & Config. |
6, in-line |
Excitation System |
Brushless, self-exciting |
| Combustion System |
direct injection |
Voltage Regulation Mode |
AVR |
| Compression Ratio |
15.0:1 |
Connection Type |
3phase,4wires, ”Y” connection |
| Displacement (L) |
10.8 |
Pole No. |
4 |
| Bore X Stroke (mm) |
125*147 |
Rotation Speed (r/min) | 1500 |
| Engine Speed (r/min) |
1500 |
Temperature Rise (℃) |
125 |
| Speed Governing |
Electronic |
Insulation class | H |
| Starting System |
24V DC Electric |
Voltage Regulation (0 load) |
≥95%～105% |
| Filter System |
Dry oil filter/Fuel filter/Oil filter |
Voltage accuracy |
≤±1% |
| Cooling system |
Water-cooled |
Protection Grade |
IP23 |
| Coolant capacity (L) |
61 |
Telephone Influence Factor |
TIF＜50 |
| Fuel Consump. (g/kw·h) | 188 | Harmonic Coefficient |
THF＜2% |
Control System:
ATS
1) Automatic Transfer Switch, when the city power supply failure, the genset will be running automatically within few minutes.
2) Our normal ATS is bulit inside,but outside ATS box is optional
Our Picture :
Guarantee
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
