Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 20KVA - 250KVA | Rated Voltage: | 400V / 230V |
|---|---|---|---|
| Engine Brand: | Cummins, Perkins, KOFA, ISUZU, LOVOL, Etc. | Alternator Brand: | Stanford, Mecc Alte, Faraday, Copy Stamford, Etc. |
| Control System: | DeepSea, SmartGen, Etc. | ||
| Highlight: | genset silent generator set,silent diesel genset |
||

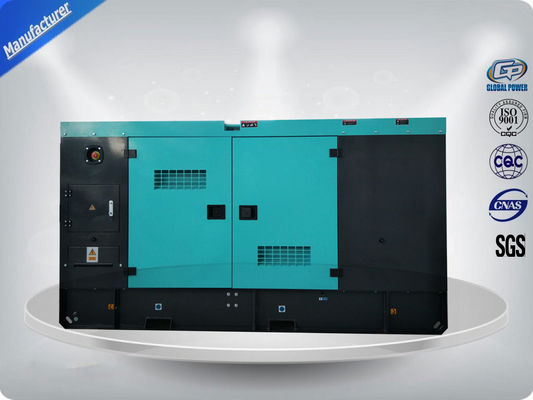

New Design Canopy 20 KVA - 250 KVA Silent Diesel Generator Set Humanized Operation
Model: GP C20 - GPC 200

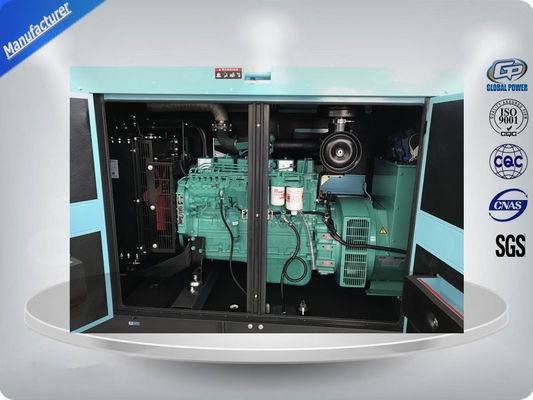

Water-cooled engine Cummins models: GPC18, GPC20, GPC22, GPC25, GPC30, GPC34, GPC40, GPC45, GPC50, GPC60, GPC70, GPC75, GPC80, GPC90, GPC100, GPC128, GPC144, GPC160, GPC200
Alternator brand : Stamford, Mecc Alte, Faraday, Copy Stamford
Generator set power: 18kva, 20kva 25kva, 40kw, 50kva, 56kva, 60kva, 70kva, 75kva, 80kva, 85kva, 100kva, 115kva, 125kva, 160kva, 180kva, 200kva, 225kva, 250kva
Performance:

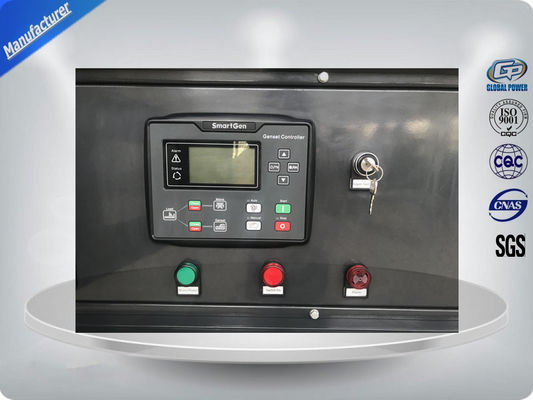

1. Fit for generator of 20 KVA - 200 KVA. Humanization design is convenient to operate. AVR controller is connected to the controller system. Drain valves for water and fuel can be stretched out of the canopy through a pipe line.
2. Big capacity of fuel tank partitioned into two parts, prevent fuel leakage at special ambient.
3. Multiple lifting ways with additional dragging holes for comfortable unloading.
4. Assembled type with pieces of canopy for comfortable maintenance.
5. About safety: The emergency stop button is available without opening the door. The fan has an additional protection net. All locks are designed for theftproof style.
New Design Canopy 20 KVA - 250 KVA Silent Diesel Generator Set Humanized Operation Technical Data Sheet :
| Model | GPC18 | GPC30 | GPC50 | GPC80 | GPC100 | GPC128 | GPC160 | GPC200 |
| Genset | 0.8cos 50hz | |||||||
| Prime power(kw/kva) | 18/22.5 | 30/38 | 50/62.5 | 80/100 | 100/125 | 128/160 | 160/220 | 200/250 |
| Standby power(kw/kva) | 20/25 | 33/41 | 55/69 | 88/110 | 110/138 | 141/176 | 176/242 | 220/275 |
| Engine | Cummins | |||||||
| Model | 4B3.9-G | 4BT3.9-G2 | 4BTA3.9-G2 | 6BT5.9-G1 | 6BTAA5.9-G2 | 6BTAA5.9-G12 | 6CTAA8.3-G2 | 6LTAA8.9-G3 |
| Prime power | 24KW | 36kw | 50kw | 86KW | 120KW | 140KW | 183KW | 230KW |
| Standby power | 26KW | 40kw | 55kw | 95KW | 132KW | 154KW | 201KW | 253KW |
| Number of cylinder | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 |
| Cylinder arrangement | vertical line | vertical line | vertical line | vertical line | vertical line | vertical line | vertical line | vertical line |
| Cooling system | Water cooled | |||||||
| Governor | Mechanical | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic |
| Bore*Stroke | 102*120 | 102*120 | 102*120 | 102*120 | 112*135 | 100*120 | 114*135 | 114*145 |
| Fuel consumption | 228g/kw·h | 214/kw·h | 216/kw·h | 214/kw·h | 208/kw·h | 216/kw·h | 205/kw·h | |
| Alternator | ||||||||
| Excitation type | Brushless excitation | Brushless excitation | Brushless excitation | Brushless excitation | Brushless excitation | Brushless excitation | Brushless excitation | Brushless excitation |
| Rated power(kw) | 20 | 32 | 48 | 80 | 96 | 128 | 160 | 200 |
| Rated current(A) | 32 | 54 | 90 | 144 | 180 | 231 | 288 | 361 |
| Insulative grade | H | H | H | H | H | H | H | H |
| Protection grade | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 |
| Voltage | 230/400V | 230/400V | 230/400V | 230/400V | 230/400V | 230/400V | 230/400V | 230/400V |
| Tolerance of voltage | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% | ≤±1% |
| Dimension | ||||||||
| Length(MM) | 2250 | 2300 | 2320 | 2800 | 3050 | 3100 | 3400 | 3500 |
| Width(MM) | 950 | 950 | 1000 | 1100 | 1100 | 1100 | 1250 | 1300 |
| Height(MM) | 1300 | 1350 | 1400 | 1500 | 1600 | 1600 | 1750 | 1800 |
| Weight(KG) | 980 | 1050 | 1200 | 1650 | 1800 | 2050 | 2450 | 2600 |
| Fuel tank capacity | 70L | 70L | 100L | 180L | 180L | 250L | 250L | 350L |
Company Information
Wuxi Global Power Technology Co.,LTD is located in Wuxi City, Jiangsu Province, which is the central part of manufacturing industrial zone in Southeast China. Global Power manufactures OEM generator powered by USA brand,UK brand, Deutz, Volvo, MTU, Doosan , Shangchai ,Yuchai ,Weichai engines with Stamford, Leroy Somer, Mecc Alte or ZC brand alternators. Global Power Genset ranges from 2kva to 2500kva, 50Hz or 60Hz frequency, can be open type, silent type, trailer type or container type, etc. All products are manufactured in accordance with the ISO8528 production standard and Europe CE certificate to assure them of best quality and acceptable for the international market.
We devotes ourselves to researching, manufacturing, and installing of Diesel Generator Set in the recent decades. With convincing quality, our products endue generators made in China with a new implication of European quality with competitive price. Global Power generators are exported to dozens of countries all over the world, bringing wind of China to global diesel generators business and customers.
FAQ
1.What's your power range of Generators?
Answer: We can offer the range from 2kva~2500kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 30 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T ,and 30% as the deposit,the balance payment should be paid before shipping.
4.What's your warranty?
Answer: All our products we offer one year warranty.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
