Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 1005KW / 1256KVA | Rated Voltage: | 400V / 230V |
|---|---|---|---|
| Engine Brand: | Cummins | Engine Model: | KTA50-G3 |
| Alternator Brand: | FARADAY | Alternator Model: | FDI7B |
| Connection Type: | 3phase,4wires,”Y” Connection | Control Module: | ComAp AMF25 |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||
Applications:
● Driven by well known Cummins engine, powerful
● Sixteen stroke, water cooled, exhaust turbo charger, intercooler
● Unique piston and cylinder design
● Excellent exhaust and cooling system, high-performance in security
Generator data

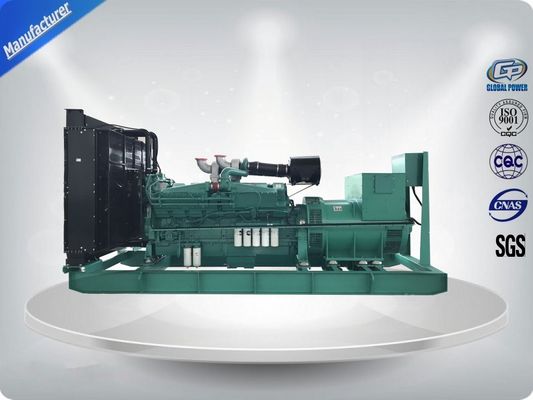

Diesel Generator GPC1005 (three phase)
| Prime Power (kw/kva) | 1005/1256 |
| Standby Power (kw/kva) | 1120/1400 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 1803 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 115 |
| Battery capacity (V-Ah) | 12V 100Ah |
Engine specifications
Technical data
Model KTA50-G3
| Engine brand | Cummins |
| Output Power (kw) | 1087 |
| Cylinder No. & Config. | 16,in “V” |
| Combustion System | direct injection |
| Compression Ratio | 13.9:1 |
| Displacement (L) | 50 |
| Bore X Stroke (mm) | 159*159 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 300 |
| Fuel Consump. (g/kw·h) | 197 |
| Oil Capacity (L) | 177 |
Alternator specifications
Technical data
Model FDI7B
| Alternator brand | FARADAY |
| Rated Power (kw) | 1001 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
AMF 25 controller
Main features:
1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
2. Security password-protected programming levels
3. All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
4. Power supply range is wide, accommodating to different starting battery voltage environment
5. Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
Company profile
Wuxi Global Power Technology CO., Ltd. have been engaged in research, development, manufacture and sales of energy-saving and environment-friendly generating sets, related parts and supporting equipment.
Our company has passed the quality management system certification of ISO9000 and environmental management system certification of ISO14000, fully certified, full compliance with industry standards at domestic and abroad.
Global power, as a strategic partner and designated OEM manufacturer of American Cummins (CUMMINS), UK Perkins (PERKINS), Volvo (VOLVO), UK Stanford (STAMFORD) in China has been keeping a steady, friendly and long-term cooperation with world leading companies.
Product Quality Commitment
1. All products are new products, and meet the present national standard, international standard as well as the industrial standards
2. All products are manufactured according to the ISO9001 Quality Management System strictly.
3. All products are commissioned and tested strictly according to present standard.
4. All accompanied documents are corresponding to the actual situation of generators, including the Qualified Certificate, Parameters and the Performance Index.
5. All spare parts are original ones.
Service Commitment
1. Pre-sale service
Suggest the best choice or referential suggestion based on customer’s information. Offer the suggestion or service of the installation to customer if needed. Answer all questions about the product from customer.
2. Sale of service
Offer the installation index by the professionals. The training or relative files of the operation & maintenance to the customers.
3. After-sale service
Warranty time: one year or 1000 running hours, whichever comes first. Build customers’ profiles, follow-up service, make regular calls on customers.
