Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 250KW / 313KVA | Stanby Power: | 275KW / 344KVA |
|---|---|---|---|
| Engine: | KOFO WT12D-308E | Alternator: | WATTEK WHI4DC |
| Rated Voltage: | 400V / 230V | Dimension: | 3000*1150*1800 MM |
| Weight: | 2550 KG | ||
| Highlight: | brushless alternator generator,engine generator set |
||
Outdoor projects, road construction, telecome / data center, hospitals, mining projects, airports, shopping malls, etc.
| 250kw / 313 kva KOFO gensets technology parameters | |
| Genset | |
| Type:GPK250 | Rated frequency: 50 HZ / 60 HZ |
| Output power:250KW / 313KVA |
Frequency Recovery Time: ≤5S |
| Power factor:COSΦ=0.8(lag) |
Wave Distortion: ≤5%, sine wave |
| Rated voltage:400/230V |
Running Noise db(A)/7m: 100 |
| Current: 451A |
Battery capacity (V-Ah): 12V 100Ah |
| Frequency:50HZ | Fuel tank capacity: 600L |
| Speed:1500RPM | Continuous running time: 8 HRS |
| Dimension:3000*1150*1800 MM | The waste of fuel with full load: 188g/kw.h |
| Weight: 2550kg | |
| Diesel Engine | |
| Brand/Origin:China KOFO | Cooled System:Water Cooling |
| Engine Model: WT12D-308E | Type:Direct Injection,Four-stroke,V6-type |
| Cylinder No.:6 | Rotating Speed:Electric speed regulator |
| Bore*Stroke:125*147mm | Aspiration Type:Ti |
| Compression Ratio:16:1 | Displacement: 14L |
| Starting Way:DC24Vwith electricity | Lubricating Capacity:39L |
| Alternator | |
| Standard Brand/Origin: WATTEK | Insulation Degree:H degree |
| Rated Power: 250 KW | Grading Protection:IP22 |
| The connecting way of the phase:Three phase four lines | Optional Brand:Meccalte, Marathon,etc |

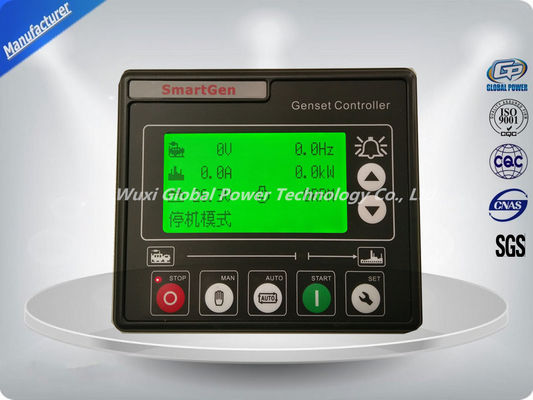

| Control screen | |
| Brand:Smartgen/Deepsea | Features:English interface;LED screen;Touch buttons |
| Based Function:1.Display loading power,voltage,current,frequency,speed,temperature,oil pressure,running time,etc | |
| 2.Warning when low or high voltage,low or high frequency,over current,over or low speed,low or over battery voltage,etc | |
| 3.Over load protection,over/under frequency protection,over/under/imbalance voltage protection and low oil shutdown. | |

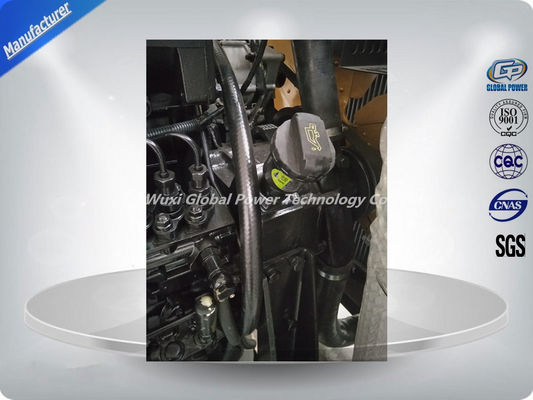

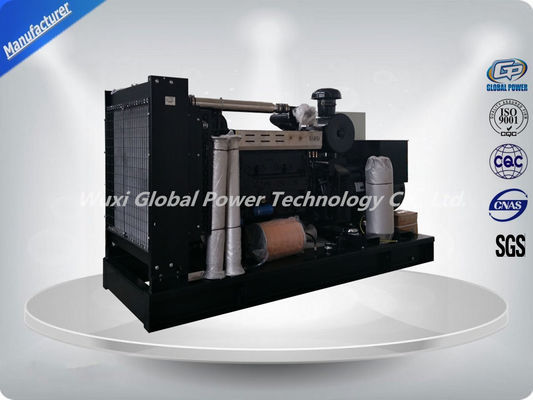

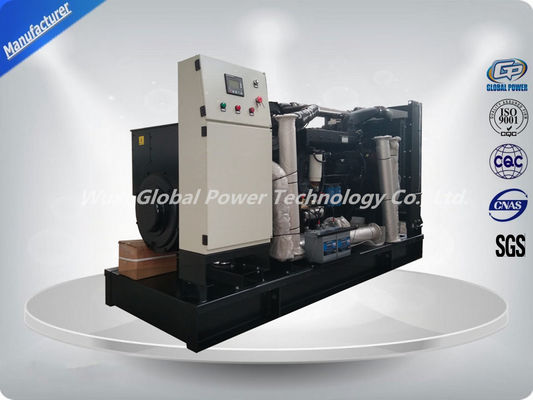

Product Display:
Test Cabinet:
