Name: Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP C1005
Availability: InStock

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets/year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP C1005

Engine Brand:

Cummins

Engine Model:

KTA50-G3

Engine Power:

1005kw

Alternator:

Stamford / Meecalt / Copy Stamford

Rated Voltage:

400 / 230 V

Dimension (l*w*h/mm）:

5100*2000*2500

Weight(KG):

10700

Control Module:

DeepSea , Comap , Smartgen.

Highlight:

open diesel generator water cool

water cool open generator set

stamford open generator set

Product Description

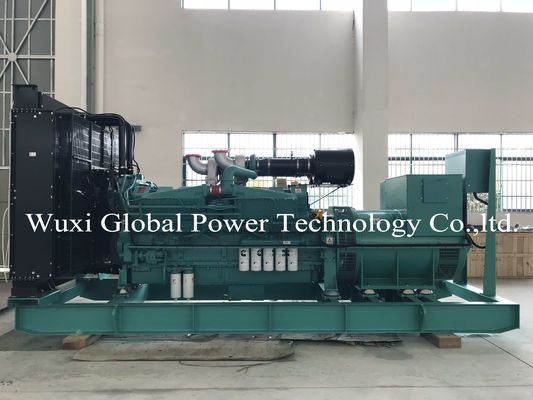

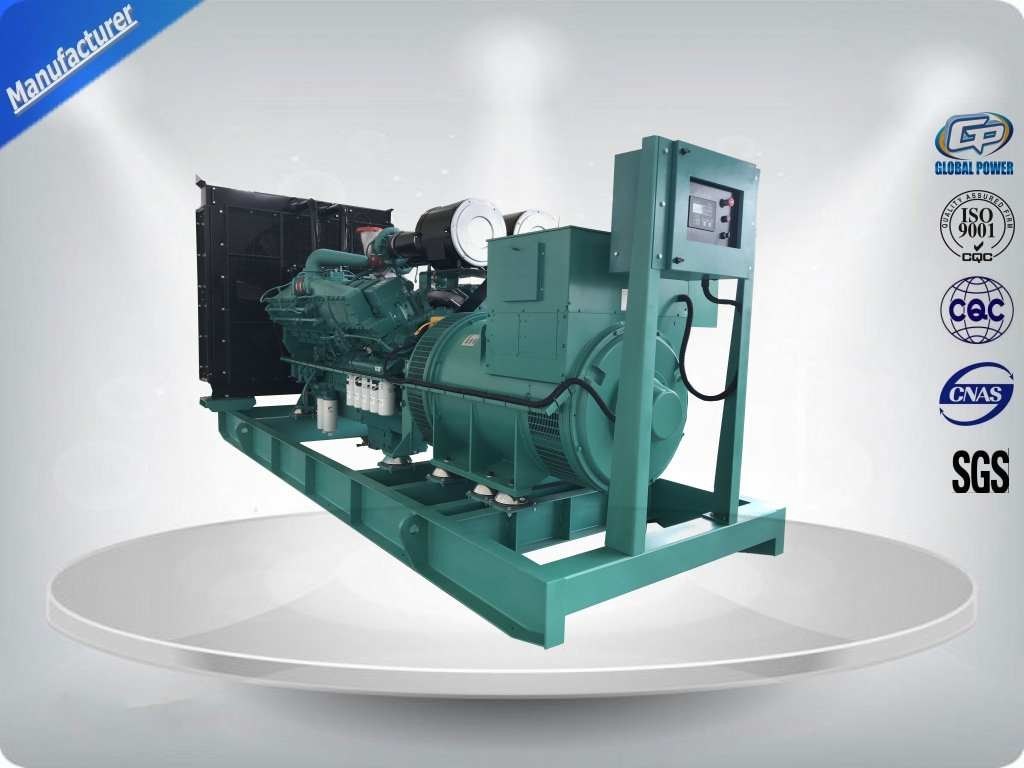

1005Kw Open Type water cool Genset / Cummins Diesel Generator Set with copper bar & PMG

Technical Specifications :

Genset	Prime Power (kw/kva)		1005/1256
	Standby Power (kw/kva)		1120/1400
	Voltage Recovery Time		≤1S
	Rated Current (A)		1803
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m		115
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		/
Engine	Engine brand	Cummins
	Output Power (kw)	1087
	Cylinder No. & Config.	16, in 'V'
	Combustion System	direct injection
	Compression Ratio	13.9:1
	Displacement (L)	50.3
	Bore X Stroke (mm)	159*159
	Engine Speed (r/min)	1500
	Speed Governing	Electronical
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Our Accessories :

Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG 0

Details :

Cummins Open Diesel Generator Water Cool Genset 1005Kw With Copper Bar / PMG 2

Our Features :

Universal design and manufacture
Engineers are familiar with diesel generators powered by Cummins engine
You could find spare-parts easily.
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door

Our Service :

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
Build customers’ profiles, follow-up service, make regular calls on customers.
