Product Details:
Payment & Shipping Terms:
|
| Product Name: | Open Diesel Generator Set | Prime Power: | 250KW / 300KVA |
|---|---|---|---|
| Standby Power: | 275KW / 344 KVA | Engine Brand: | KOFO |
| Engine Model: | WT 12D-308E | Alternator Brand: | WATTEK |
| Alternator Model: | WHI4DC | Dimension(L*W*H): | 3000*1150*1800 MM |
| Weight: | 2550KG | ||
| Highlight: | brushless synchronous generator,engine generator set |
||

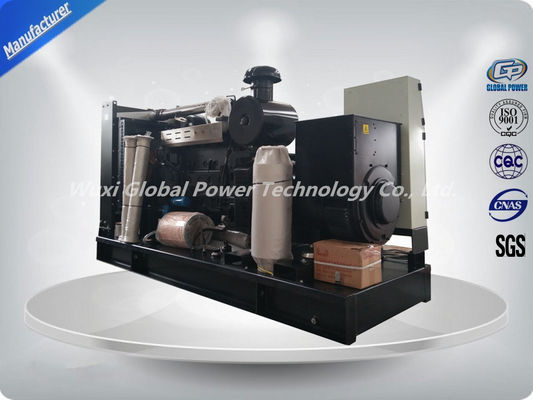

Global Power Brushless AC Generator Set: KOFO Series GPK 250 Diesel Genset 1500 RMP Price
Global Power diesel-powered generator is a favorite in the industry. It is highly reliable in providing emergency power in the event of an outage. This generator set is the epitome of dependability with its reliable mechanical and electrical performance. It uses the mature technology perfected by KOFO to provide clean and modern diesel-powered generators.
| Genset Model | GPK250 |
| Prime Output (KW / KVA) | 250 KW / 313 KVA |
| Standby Output (KW / KVA) | 275 KW / 344 KVA |
| Voltage, Phase and Wire | 400 V / 3 Phase / 4 Wires |
| Maximum Output Current | 451 AMP |
| Engine Brand and Model | KOFO WT 12D-308E |
| Alternator Brand and Model | WATTEK WHI4DC |
| Engine Speed RPM | 1500 |
| Frequency | 50 HZ |
|
Prime Power These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercial purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hr in 12hs
|
Standby Power These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload permitted on these ratings. The alternator on this model is peaking continuous rated (as defined in ISO 8528-3)
|
ENGINE SPECIFICATION
| Engine Model | KOFO WT 12D-308E |
| Engine Type | Water-cooled, 6 cylinders in line, direct injection |
| Maximum Output | 288 KW |
| Aspiration | Turbocharged |
| Bore x Stroke | 125*147 mm |
| Displacement | 14 L |
| Compression Ration | 16:1 |
| Fuel Consumption | 188 g/kw.h |
| Lube-oil Pan Capacity | 16.4 L |
| Cooling Water Capacity | 24 L |
| Voltage for Start | 24 V |
| Instrument for Adjusting Speed | Electronic |
| Noise Level (A) 7 m | ≤115 db (Open type), ≤75 db (Silent type) |
ALTERNATOR SPECIFICATION
| Alternator Model | WATTEK WHI4DC |
| Excitation | Brushless, self-excited |
| Insulation Class | H |
| Project Class | IP23 |
| Connection Type | Re-connectable |
| Voltage Regulation | ≥95%～105% |
| Waveform | ≤5%, sine wave |
| Distortion THF / TIF | THF<50, TIF<2% |
Exhaust System
Lube System
DIMENSIONS AND WEIGHT
| Genset Type | Length | Width | Height | Weight |
| Open Type | 3000mm | 1150mm | 1800mm | 2550kg |
