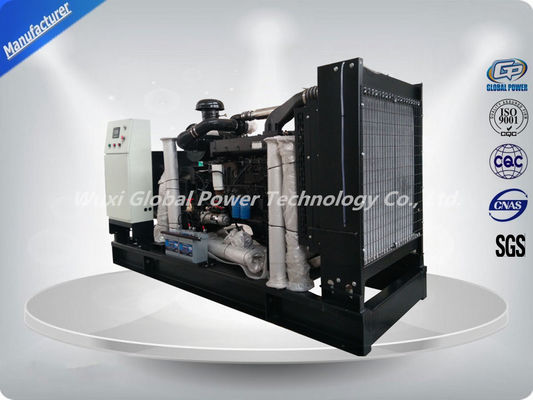

313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator
  • name
  • name
  • name
  • name

313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plastic foam or plywood case packing
Delivery Period: 30 working days after received down-payment
Supply Capacity: 2000 Sets per Year
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
OEM / ISO9001
Model Number
GP K250
Product Name:
Open Diesel Generator
Prime Power:
250KW / 313KVA
Rated Voltage:
400V / 230V
Engine:
KOFO WT 12D-308E
Alternator:
Copy Stamford GPI 4DC
Connection Type:
3 Phase,4wires,”Y” Connection
Control Panel:
HGM410
Dimension:
3000*1150*1800 MM
Weight:
2550 KG
Highlight:

stamford open generator set

,

stamford open diesel generator

,

brushless open generator set

Product Description

Chinese Diesel Generator Sets Global Power 313 KVA 400 V 50 HZ 3 PHASE Price Cheap for Sale



This Chinese KOFO Powered diesel generator is suitable for continuous use and has plenty of power to the plant, hospital, outdoor project, . This unit operates at 1500-1800 RPM and with its deep stiff crankcase, isolated valve cover and 4 point vibration mounts, this set runs smooth and quiet.





Genset Model GPK250
Prime Output (KW / KVA) 250 KW / 313 KVA
Standby Output (KW / KVA) 275 KW / 344 KVA
Voltage, Phase and Wire 400 V / 3 Phase / 4 Wires
Maximum Output Current 451 AMP
Engine Brand and Model KOFO WT 12D-308E
Alternator Brand and Model WATTEK WHI4DC
Engine Speed RPM 1500
Frequency 50 HZ

Ratings at 0.8 power factor



Rating definitions



50HZ 1500m: (Operation at altitude ≤1500m, Ambient temperature ≤40℃) if altitude higher than 1500m, each 100m will cause additional de-rating 1%



Factory Test

Each our generating sets must be got through 1h load test for running 0%, 25%, 50%, 75%, 100% and 110% load before dispatch. All protective devices, control functions are simulated and its system checked, proved and then passed for dispatch. A test certificate can be provided upon request.

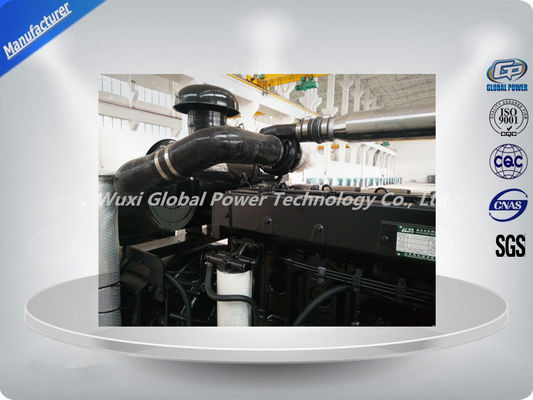

ENGINE SPECIFICATION



Engine Model KOFO WT 12D-308E
Engine Type Water-cooled, 6 cylinders in line, direct injection
Maximum Output 288 KW
Aspiration Turbocharged
Bore x Stroke 125*147 mm
Displacement 14 L
Compression Ration 16:1
Fuel Consumption 188 g/kw.h
Lube-oil Pan Capacity 16.4 L
Cooling Water Capacity 24 L
Voltage for Start 24 V
Instrument for Adjusting Speed Electronic
Noise Level (A) 7 m ≤115 db (Open type), ≤75 db (Silent type)



313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator 0

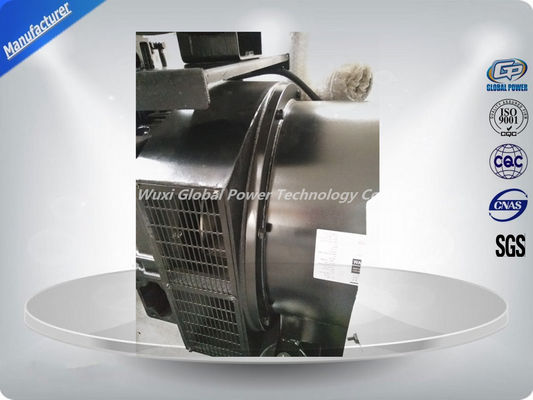

ALTERNATOR SPECIFICATION

Alternator Model Copy Stamford GPI4DC
Excitation Brushless, self-excited
Insulation Class H
Project Class IP23
Connection Type Re-connectable
Voltage Regulation ≥95%～105%
Waveform ≤5%, sine wave
Distortion THF / TIF THF<50, TIF<2%

313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator 1

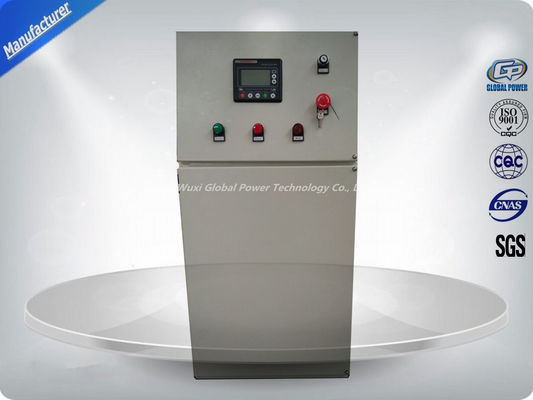

GENERATOR SET CONTROL PANEL



AC/DC control panel with communication interface

Emergency stop button

Controller with selection for auto-start, HGM6110 monitoring and with following (and not restricted to) features:

  • Start / Stop button
  • Hour run meter
  • Monitor engine temperature and provides shutdown protection
  • Monitor oil pressure and provides shutdown protection
  • Alarm output for abnormal operation



Standard Features

Control System: HGM control panel with communication interface

313 KVA 400 V 50 HZ 3 PHASE Diesel Generator Sets With Copy Stamford Brushless Alternator 2







Tags:

brushless alternator generator,

brushless synchronous generator,

engine generator set
