Product Details:
Payment & Shipping Terms:
|
| Engine Brand: | Perkins | Engine Model: | 1106A-70TAG4 |
|---|---|---|---|
| Output Power (kw): | 202 | Cooling System: | Water-cooled |
| Alternator: | Stamford / Meecalt / Copy Stamford | Fuel Tank Capacity(L): | 960 |
| Rated Voltage: | 400 / 230 V | Control Module: | DeepSea , Comap , Smartgen. |
| Highlight: | industrial diesel generators,Industrial Genset |
||

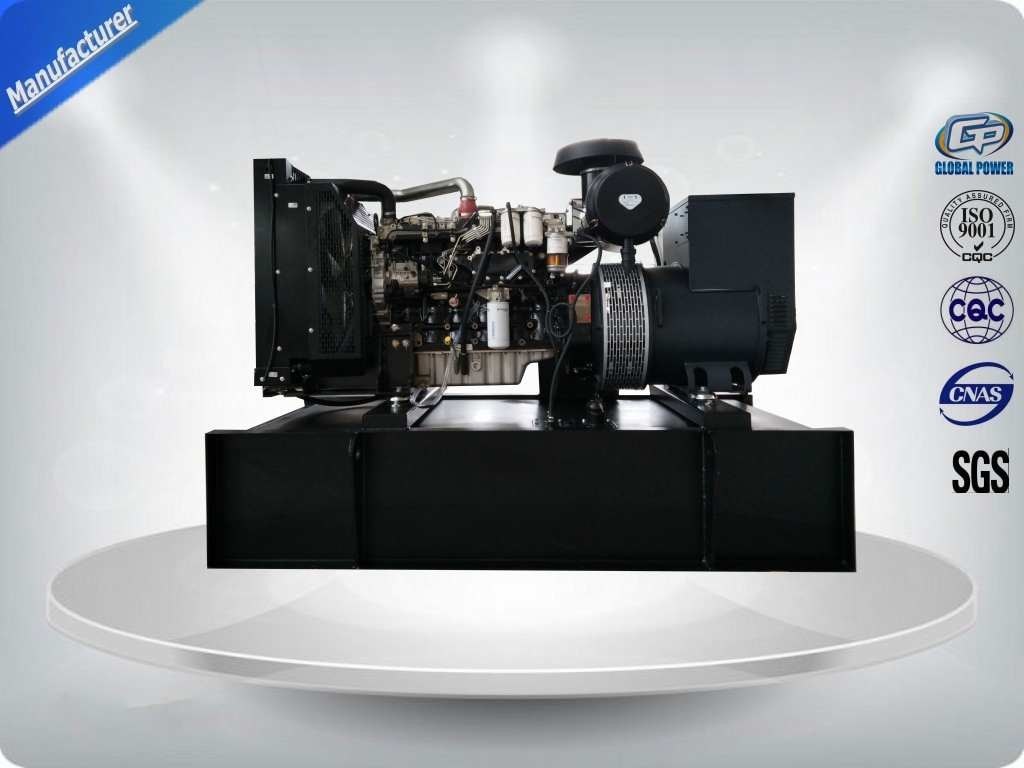

160kw 200kva Industrial Generator Set With Perkins Engine 960Ltr Bunded Fuel Tank
Technical Specifications :
|
Genset |
Prime Power (kw/kva) |
160/220 |
|
|
Standby Power (kw/kva) |
176/220 |
||
|
Voltage Recovery Time |
≤1S |
||
|
Rated Current (A) |
288 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
115 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
250 |
||
|
Engine |
Engine brand |
Perkins |
|
|
Output Power (kw) |
202 |
||
|
Cylinder No. & Config. |
6, in-line |
||
|
Combustion System |
direct injection |
||
|
Compression Ratio |
16:1 |
||
|
Displacement (L) |
7 |
||
|
Bore X Stroke (mm) |
105*135 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday… |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Our Picture :

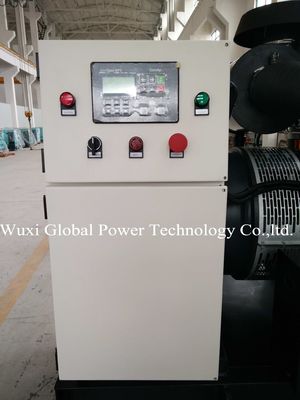

Control system
1. Main features:
2. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
3. Security password-protected programming levels
4. All parameters use digital modulation, with higher reliability and stability
5. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
6. Power supply range is wide, accommodating to different starting battery voltage environment
7. Built-in watch dog can never be dead halt, ensuring smooth program execution
Our Service:
Warranty and Maintenance:
