Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 250 KW / 313 KVA | Stanby Power: | 275 KW / 344 KVA |
|---|---|---|---|
| Rated Frequency: | 50 HZ | Battery Capacity: | 12V 100 AH |
| Open Type-Dimension (L*W*H) (mm): | 3000*1150*1800 | Open Type-Weight (kg): | 2550 |
| Fuel Consumption: | 188 G/kw.h | Noise Level(A) 7 M: | ≤115 Db (Open Type), ≤75 Db (Silent Type) |
| Highlight: | industrial diesel generators,Industrial Genset |
||

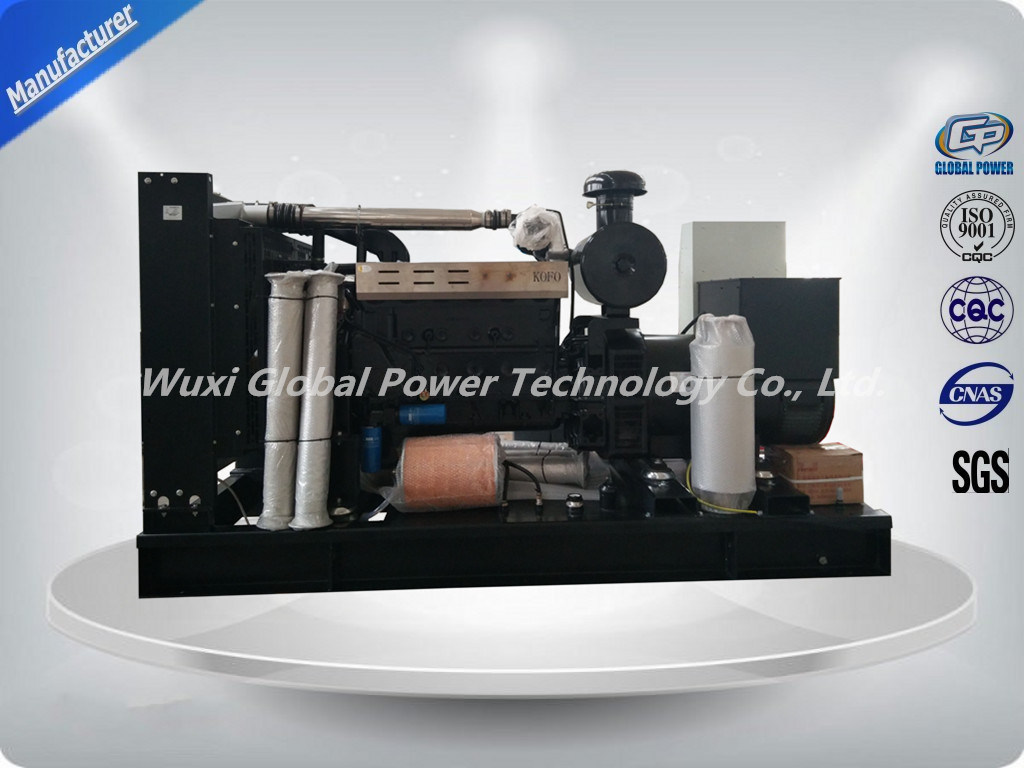

Generator Supplier of 250 KW Global Power Emergency Industrial Generator Set 50 HZ 400V 3 P
The power ranges of KOFO series from 10Kw to 360Kw. Features of low fuel consumption, low emission, low noise; high precision voltage regulation, good dynamic performance, compact structure, long service life; start quickly, and it can soon reach full power.
| Genset Model | GPK250 |
| Prime Output (KW / KVA) | 250 KW / 313 KVA |
| Standby Output (KW / KVA) | 275 KW / 344 KVA |
| Voltage, Phase and Wire | 400 V / 3 Phase / 4 Wires |
| Maximum Output Current | 451 AMP |
| Engine Brand and Model | KOFO WT 12D-308E |
| Alternator Brand and Model | WATTEK WHI4DC |
| Engine Speed RPM | 1500 |
| Frequency | 50 HZ |
Ratings at 0.8 power factor
ENGINE SPECIFICATION
| Engine Model | KOFO WT 12D-308E |
| Engine Type | Water-cooled, 6 cylinders in line, direct injection |
| Maximum Output | 288 KW |
| Aspiration | Turbocharged |
| Bore x Stroke | 125*147 mm |
| Displacement | 14 L |
| Compression Ration | 16:1 |
| Fuel Consumption | 188 g/kw.h |
| Lube-oil Pan Capacity | 16.4 L |
| Cooling Water Capacity | 24 L |
| Voltage for Start | 24 V |
| Instrument for Adjusting Speed | Electronic |
| Noise Level (A) 7 m | ≤115 db (Open type), ≤75 db (Silent type) |
ALTERNATOR SPECIFICATION
| Alternator Model | WATTEK WHI4DC |
| Excitation | Brushless, self-excited |
| Insulation Class | H |
| Project Class | IP23 |
| Connection Type | Re-connectable |
| Voltage Regulation | ≥95%～105% |
| Waveform | ≤5%, sine wave |
| Distortion THF / TIF | THF<50, TIF<2% |
Fuel System

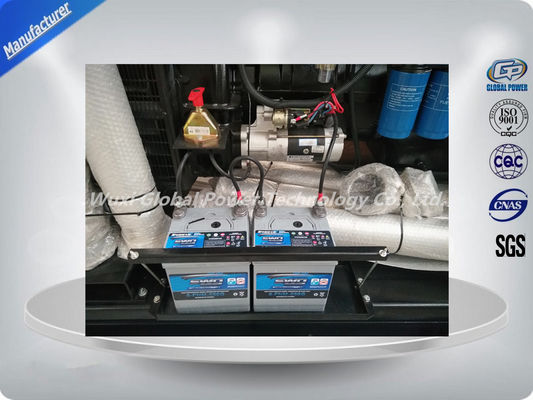

Starting / Charging System
Cooling System
DIMENSIONS AND WEIGHT
| Genset Type | Length | Width | Height | Weight |
| Open Type | 3000mm | 1150mm | 1800mm | 2550kg |
