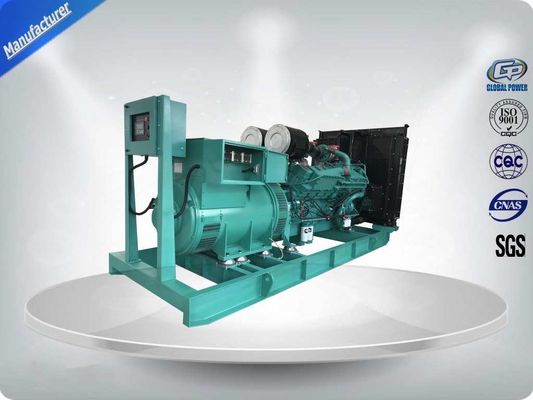

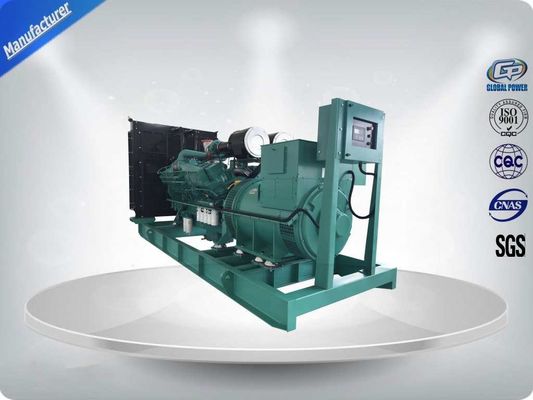

280kw 350kva 50Hz Cummins Diesel Generator Set Open Type Diesel Generator
  • name
  • name

280kw 350kva 50Hz Cummins Diesel Generator Set Open Type Diesel Generator

MOQ: 1
Price: Negotiable
Standard Packaging: Plastic Foam or Plywood Case
Delivery Period: 25 working days after received down-payment
Payment Method: L/C, T/T
Supply Capacity: 2000 sets/year
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
OEM/ISO9001
Model Number
GP C280
Engine Model:
Cummins, NTA855-G2A
Alternator Brand:
Stamford, HCI444E
Frequency:
50Hz
Rated Voltage::
400/230
Prime Power (kw/kva):
280/350
Running Noise Db(A):
115(open Type)
Continuous Running Time(hr.):
8
Standby Power(kw/kva):
308/385
Control Module Brand:
SmartGen, Deepsea, ComAp
Battery Capacity (V-Ah):
24V 100Ah
Highlight:

50hz cummins diesel generator set

,

cummins diesel generator set open

,

280kw diesel power generator set

Product Description



280kw/350kva 50Hz Cummins Diesel Generator with Stamford Alternator, Open Type Diesel Generator

Model: GPC280

Applications:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc.

Features and benefits



  1. Tightly structure, excellent design and craft
  2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
  3. Self-diagnostic capability simplifies troubleshooting
  4. LCD display shows system status and setup information
  5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
  6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
  7. Enclosed muffler for added quietness
  8. Service and maintenance accessible through easy-latch side service door


280kw 350kva 50Hz Cummins Diesel Generator Set Open Type Diesel Generator 0
Generator data

Diesel Generator GPC280 (three phase)

Prime Power (kw/kva)280/350
Standby Power (kw/kva)308/385
Rated Voltage (V)400/230
Voltage Recovery Time≤1S
Rated Current (A)504
Rated Frequency (Hz)50
Frequency Recovery Time≤5S
Wave Distortion≤5%, sine wave
Running Noise db(A)/7m(Open type)115
Battery capacity (V-Ah)24V 100Ah
Open Type-Dimension (L*W*H) (mm)3035*1000*1750
Open Type-Weight (kg)3035
Soundproof Type- Dimension (L*W*H) (mm)4100*1400*2100
Soundproof Type-Weight (kg)7335
Fuel Tank Capacity(L)600
Continuous Running Time(hr.)8




Engine specifications




Engine
Main features:

  1. Six-cylinder, water-cooled, in-line diesel engine
  2. Efficient fuel system for max power output and durability
  3. Large-capacity air cleaner
  4. Cost effective, fuel efficient and reliable performance
  5. Functional engine with compact structure
  6. Excellent after-sales service and sufficient spare parts supplying
  7. Easy installation and ready access for routine maintenance






Technical data
                                                      Model NTA855-G2A

Engine brandCummins
Output Power (kw)313
Cylinder No. & Config.6, in-line
Combustion Systemdirect injection
Compression Ratio14.0:1
Displacement (L)14
Bore X Stroke (mm)140*152
Engine Speed (r/min)1500
Speed GoverningElectronic
Starting System24V DC Electric
Filter SystemDry oil filter/Fuel filter/Oil filter
Cooling systemWater-cooled
Coolant capacity (L)69.8
Fuel Consump. (g/kw·h)192.6
Oil Capacity (L)36.7




Alternator specifications



Alternator
Main features:

  1. Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
  2. 2/3 pitch winding as standard, to avoid excessive neutral currents
  3. Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
  4. Easy access for installation and maintenance
  5. IP23 as standard
  6. Self-excited control system
  7. Resist of corruption of oil and acid


280kw 350kva 50Hz Cummins Diesel Generator Set Open Type Diesel Generator 1

Technical data
                                                               Model HCI444E

Alternator brandStamford
Rated Power (kw)280
Excitation SystemBrushless, self-exciting
Voltage Regulation ModeAVR
Connection Type3phase,4wires,”Y” connection
Pole No.4
Rotation Speed (r/min)1500
Temperature Rise (℃)125
Insulation classH
Voltage Regulation (0 load)≥95%～105%
Voltage accuracy≤±1%
Protection GradeIP23
Telephone Influence FactorTIF＜50
Harmonic CoefficientTHF＜2%




Control system


HGM6110 controller
280kw 350kva 50Hz Cummins Diesel Generator Set Open Type Diesel Generator 2



Main features:



  1. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
  2. Security password-protected programming levels
  3. All parameters use digital modulation, with higher reliability and stability
  4. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
  5. Power supply range is wide, accommodating to different starting battery voltage environment
  6. Built-in watch dog can never be dead halt, ensuring smooth program execution
  7. Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation




Precision measure and display of: Protection:



  • Generator voltage
  • Generator current
  • Generator frequency
  • Generator active power (kW)
  • Generator inactive power (kW)
  • Generator apparent power (kVA)
  • Generator power factor
  • Generator starts count
  • Generator hour count
  • Cumulate electric energy (kWh)
  • Generator temperature
  • Generator pressure
  • Start battery voltage

  •


  • Emergency stop
  • High water temperature
  • Low oil pressure
  • Over speed
  • Under speed
  • Loss of speed signal
  • Generator over frequency
  • Generator under frequency
  • Generator over voltage
  • Generator under voltage
  • Generator over current
  • Fail to start
  • Auxiliary inputs
