Product Details:
Payment & Shipping Terms:
|
| Type: | Silent Type | Prime Power: | 225 KVA / 180 KW |
|---|---|---|---|
| Standby Power: | 248 KVA / 198 KW | Engine: | Perkins 1506A-E88TAG2 |
| Alternator: | Meccalte ECO38-3S4A | Dimensin(L*W*H): | 3400*1400*2150 MM |
| Weight: | 2800 KG | Colour: | White (Can Be Customized As Requirement) |
| Highlight: | genset silent portable,silent diesel genset |
||

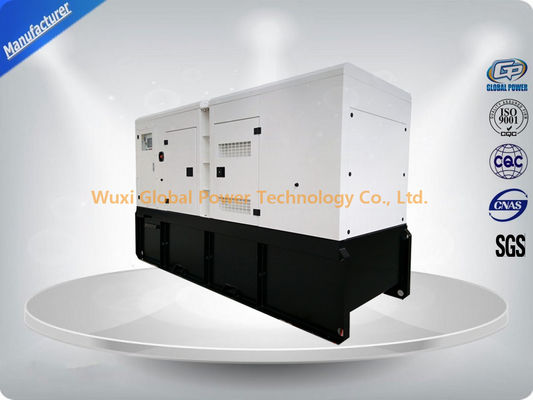

Perkins 225 KVA / 180 KW Diesel Generator Set Silent Type 400 V / 230 V 3 Phase
Application:
1. Plant
2. Petro Station
3. Defence
4. Transportation
5. Hotel
6. Data Center
……
Diesel Generator GPP180 (three phase)
| Prime Power (kw/kva) | 180/225 |
| Standby Power (kw/kva) | 200/250 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 324 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2600*900*1570 |
| Open Type-Weight (kg) | 1950 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3400*1400*2150 |
| Soundproof Type-Weight (kg) | 4750 |
| Fuel Tank Capacity(L) | 600 |
| Continuous Running Time(hr.) | 8 |
Engine technical data
Model 1506A-E88TAG2
| Engine brand | Perkins |
| Output Power (kw) | 217 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.9:1 |
| Displacement (L) | 8.7 |
| Bore X Stroke (mm) | 116.6*135.9 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 37.2 |
| Fuel Consump. (g/kw·h) | 201 |
| Oil Capacity (L) | 26.4 |

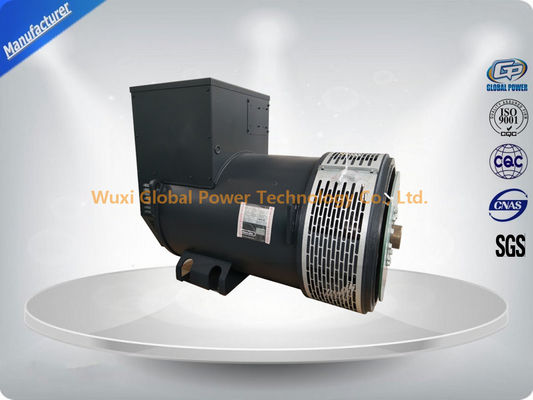

Alternator technical data
Model ECO38-3S4A
| Alternator brand | Meccalte |
| Rated Power (kw) | 184 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
