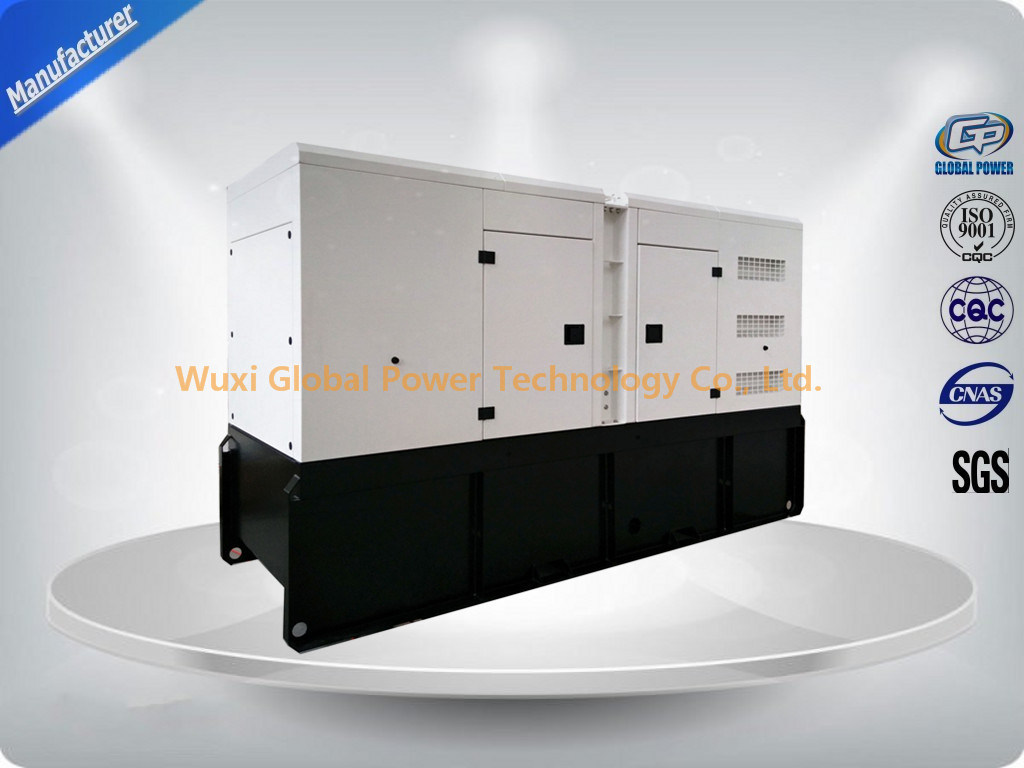

250 KVA Perkins Soundproof Water - Cooled Diesel Generator Set 1300L

250 KVA Perkins Soundproof Type Water-cooled Diesel Generator Set with 1300L Big Fuel Tank

Generator set: GPP200




Engine: Perkins 15036A-E88TAG3


Engine Performance

High Performance Productive Power

• Hydraulically actuated Electronically controlled Unit Injectors – high-pressure fuel injection gives consistent, reliable high performance.

• Constant electronic engine management and monitoring enable precise fuel metering and injection timing to ensure reliable low temperature starting, superb economy with performance and very close governing.

Quiet, Clean Power

• A rigid structure minimises noise transmission and helically cut gears provide quiet power transfer to auxiliaries.

• Forced induction and electronic fuel injection control combine to reduce combustion noise while electronically optimised fuel/air mixing ensures complete combustion resulting in virtually smoke free operation with emissions capability matching current and future emissions legislation.

Durable Power

• A fully balanced induction-hardened steel crankshaft gives smooth performance with minimised bearing loads.

• Oil cooled pistons with keystone top and second rings give longer life while positive rotational valves and roller cam followers reduce wear on valve seats, tappets and cam lobes.

Reliable Power

• Cylinder head coolant is directed to valve bridges and injectors and lubricating oil is cooled in a high efficiency oil cooler, both features enhancing engine reliability.

• Electronic safety shutdown option protects the engine while event and fault warning codes protect operations.

Easy Maintenance

• Electronic diagnostics help to keep the engine at its productive best while enabling the operator to plan maintenance. Oil and filter changes at 450 hours reduce down time.

• All engines are supported by the Perkins worldwide network of distributors and dealers.

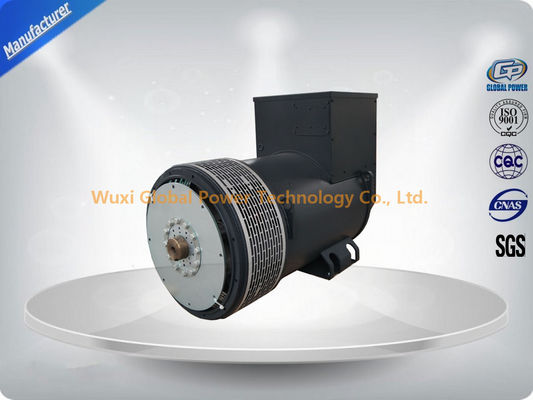

Alternator: Meccalte ECO38-1L4A



Dimensions and capacity



Generator equipment

1. Central lift hook and forklift pockets for versatility.
2. Ground mounted skid enables use in harsh environment. The generator can be dragged over rough ground via the two eyes.
3. High serving level with wide opening doors.
4. Residential exhaust silencing internal to the canopy. Suitable for use near residential areas where noise could be a problem.
5. Lockable door hardware constructed from rust resistant materials.
