Product Details:
Payment & Shipping Terms:
|
| Type: | Silent Type | Prime Power: | 300 KVA / 240 KW |
|---|---|---|---|
| Standby Power: | 330 KVA / 264 KW | Engine: | Perkins 1506A-E88TAG5 |
| Alternator: | Meccalte ECO38-2L4A | Dimensin(L*W*H): | 4100*1500*2300 MM |
| Weight: | 4350 KG | Fuel Tank Capacity: | 1300 L |
| Highlight: | genset silent generator set,silent diesel genset |
||

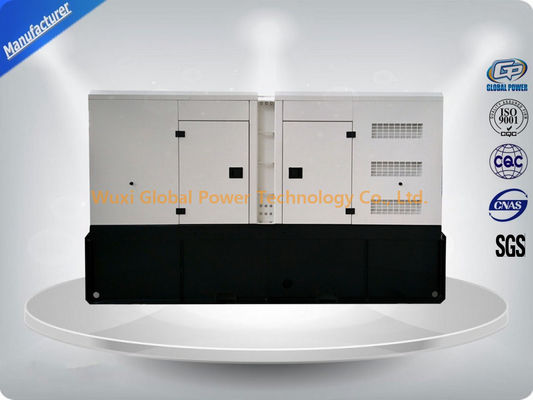

Perkins 300 KVA Silent Diesel Generator Set with Meccalte Alternator IP23 H Insulation Class
Powered by a world renowned Perkins Engine backed by a world wide OEM warranty.
1. Tightly structure, excellent design and craft
2. Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
3. Self-diagnostic capability simplifies troubleshooting
4. LCD display shows system status and setup information
5. Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
6. Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
7. Enclosed muffler for added quietness
8. Service and maintenance accessible through easy-latch side service door
Generator set: GPP200
| Generator set performance | 50HZ |
| Volltage | 400V / 230V |
| Phase | Three |
| Prime rated power | 300 KVA / 240 KW |
| Standby rated power | 330 KVA / 264 KW |
| Power factor | 0.80 PF |
Engine: Perkins 15036A-E88TAG3
| Performance | 50HZ |
| Prime rated power | KVA / 267 KW |
| Type | Diesel 4 stroke |
| Aspiration | Turbocharged air to air charge cooled |
| Injection Type | Direction injection |
| Cylinders and arrangement | Six in line |
| Bore and stroke | 117mm*146mm |
| Compression ratio | 16.1:1 |
| Electicrical system voltage | 24 Volt |
| Battery Type | Lead acid, 24V |
| Derating for temperature | 40 deg C |
| Derating for Altitude | 1000 M |
| Derating for humidity | 90% |
Engine Performance
High Performance Productive Power
• Hydraulically actuated Electronically controlled Unit Injectors – high-pressure fuel injection gives consistent, reliable high performance.
• Constant electronic engine management and monitoring enable precise fuel metering and injection timing to ensure reliable low temperature starting, superb economy with performance and very close governing.
Quiet, Clean Power
• A rigid structure minimises noise transmission and helically cut gears provide quiet power transfer to auxiliaries.
• Forced induction and electronic fuel injection control combine to reduce combustion noise while electronically optimised fuel/air mixing ensures complete combustion resulting in virtually smoke free operation with emissions capability matching current and future emissions legislation.
Durable Power
• A fully balanced induction-hardened steel crankshaft gives smooth performance with minimised bearing loads.
• Oil cooled pistons with keystone top and second rings give longer life while positive rotational valves and roller cam followers reduce wear on valve seats, tappets and cam lobes.
Reliable Power
• Cylinder head coolant is directed to valve bridges and injectors and lubricating oil is cooled in a high efficiency oil cooler, both features enhancing engine reliability.
• Electronic safety shutdown option protects the engine while event and fault warning codes protect operations.
Easy Maintenance
• Electronic diagnostics help to keep the engine at its productive best while enabling the operator to plan maintenance. Oil and filter changes at 450 hours reduce down time.
• All engines are supported by the Perkins worldwide network of distributors and dealers.
Alternator: Meccalte ECO38-2L4A
| Performance | 50HZ |
| Prime rated power 40 deg C | 240 KW |
| Efficiency | 92% |
| Standard wing connection | Star delta |
| Exciter | Separately excited by P.M.G |
| Poles | 4 poles |
| Phases | Three phases |
| Wires | 12 leads |
| Voltage regulation | +/- 1.0% |
| Insulation class | Class H |
| Enclosure | IP23 |
| Maximum overspeed | 150% |
| Derating for temperature | 40 deg C |
| Derating for Altitude | 1000 M |
Dimensions and capacity
| Fuel tank capacity | Weight | Length | Width | Height | |
| Standard type (Open type) | 600L | 2735 KG | 3200 MM | 1150 MM | 1900 MM |
| Silent type | 1300L | 3650 KG | 4100 MM | 1500 MM | 2250 MM |
Generator equipment
1. Central lift hook and forklift pockets for versatility.
2. Ground mounted skid enables use in harsh environment. The generator can be dragged over rough ground via the two eyes.
3. High serving level with wide opening doors.
4. Residential exhaust silencing internal to the canopy. Suitable for use near residential areas where noise could be a problem.
5. Lockable door hardware constructed from rust resistant materials.
