Product Details:
Payment & Shipping Terms:
|
| Type: | Super Silent Type | Prime Power: | 20 KVA / 16 KW |
|---|---|---|---|
| Standby Power: | 22 KVA / 18 KW | Engine: | Perkins 404D-22G |
| Alternator: | Meccalte ECP28-M4A | Dimensin(L*W*H): | 2000*1000*1830 MM |
| Weight: | 960 KG | Fuel Tank Capacity: | 1000 L |
| Highlight: | genset silent generator set,genset silent portable |
||

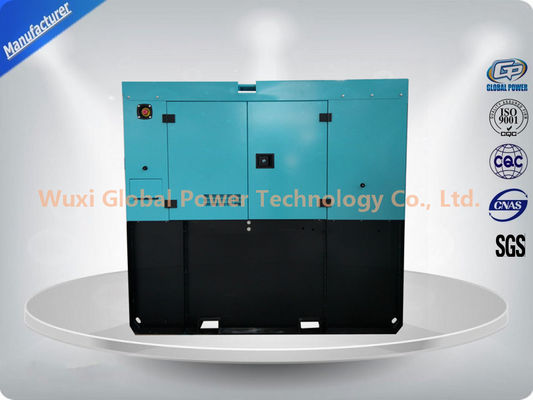

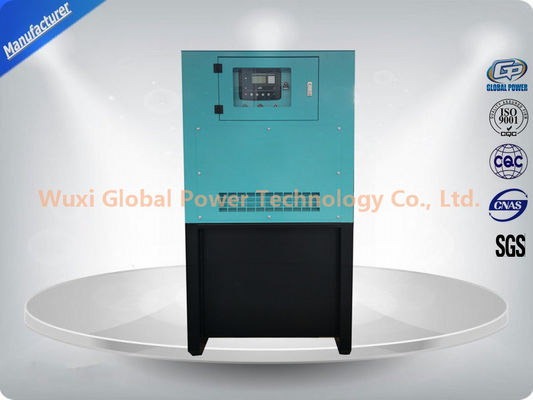

EU III 20KVA 0.80 PF Super Silent Diesel Generator Set with Very Low Noise
APPLICATIONS:
Home, Buildings, Hospitals, Train station,
Bank, Telecom, Mining, Military, Outdoor projects, etc
rdware constructed from rust resistant materials.
| GENERAL DATA | ||
| Standby Power L.T.P. (cosØ=0.8) | Kva / kW | 18 / 22 |
| Prime Power P.R.P. (cosØ=0.8) | Kva / kW | 16 / 20 |
| Nominal current | Amps | 29 |
| Nominal voltage | V | 400 / 230 |
| Frequency | Hz | 50 |

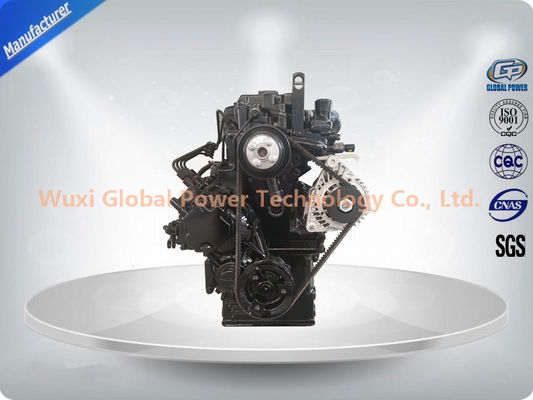

| ENGINE | Perkins | 404D-22G |
| Emission standard | EU | III |
| Engine speed | rpm | 1500 |
| Engine governor | Mechanical / Electric | Mechanical |
| Engine speed regulation | % | ±2% |
| Cylinder configuration | 4 | In line |
| Cooling type | Liquid / Air | Liquid |
| Displacement | L | 2.216 |
| Engine Power | kW | 18 |
| Battery charging alternator voltage | V | 12 |
| ALTERNATOR | Meccalte | ECP28-M4A |
| Type | Brushless self exciting, synchronic | Brushless self exciting, synchronic |
| Pole / Connecting type | 4 / Star Y | 4 / Star Y |
| Insulation class | H | H |
| Protection grade | IP 23 | IP 23 |
| Voltage regulation | ±1.5 | ±1 |
| Waveform distortions THD | % | ≦5% |
STANDARD EQUIPMENT:
1. Diesel engine
2. Alternator
3. Starting batteries
4. On engine wiring
5. Fuel tank with on engine fuel installation
6. Elastic engine and alternator mountings
7. Exhaust compensators
8. Silencer
9. On engine liquids (engine oil and cooling liquid, without fuel)
10. Generating set terminal box
11. Main circuit bracer
12. Generating set control panel with engine and alternator parameters indication
13. Emergency stop
14. Acoustic warning signal
ACCESSORY:
1. External fuel tank
2. Synchronization with other generator set
3. Ventilation
4. Exhaust piping systme
5. Different protection
6. Other voltage application
7. Individual ATS
8. Spark arrestor
9. Remote control
10. Maintenance contract
11. others
