Product Details:
Payment & Shipping Terms:
|
| Product Name: | Perkins Open Diesel Generator Set | Engine Brand: | Perkins |
|---|---|---|---|
| Engine Model: | 1506A-E88TAG1 | Output Power (kw): | 218 |
| Cooling System: | Water-cooled | Alternator: | Stamford / Meecalt / Copy Stamford |
| Fuel Tank Capacity(L): | 960 | Rated Voltage: | 440/254 V |
| Control Module: | DeepSea , Comap , Smartgen. | ||
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

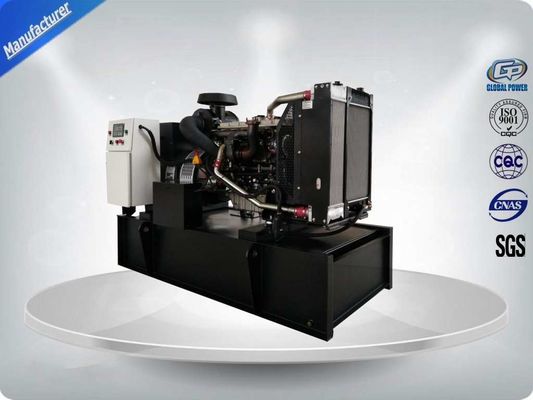

60HZ 196kw 245kva Open Diesel Generator With Perkins 1506A-E88TAG1 and 960Ltr Big Base Fuel Tank
Technical Specifications :
| Prime Power (kw/kva) | 196/245 |
| Standby Power (kw/kva) | 216/270 |
| Rated Voltage (V) | 440/254 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 321 |
| Rated Frequency (Hz) | 60 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2300*780*1250 |
| Open Type-Weight (kg) | 1350 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3200*1300*2000 |
| Soundproof Type-Weight (kg) | 2400 |
| Fuel Tank Capacity(L) | 350 |
| Continuous Running Time(hr.) | 8 |
Engine :
Model 1506A-E88TAG1
| Engine brand | Perkins |
| Output Power (kw) | 218 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | Direct injection |
| Compression Ratio | 16.1:1 |
| Displacement (L) | 8.8 |
| Bore X Stroke (mm) | 112*149 |
| Engine Speed (r/min) | 1800 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 37.2 |
| Fuel Consump. (g/kw·h) | 192 |
| Oil Capacity (L) | 26.5 |
Alternator :
Model UCI274H
| Alternator brand | Stamford |
| Rated Power (kw) | 196 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1800 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system:
1. Main features:
2. Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
3. Security password-protected programming levels
4. All parameters use digital modulation, with higher reliability and stability
5. Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
6. Power supply range is wide, accommodating to different starting battery voltage environment
7. Built-in watch dog can never be dead halt, ensuring smooth program execution
