Product Details:
Payment & Shipping Terms:
|
| Product Name: | Perkins Diesel Generator Set | Engine Model:: | Perkins, 1506A-E88TAG3 |
|---|---|---|---|
| Alternator Brand:: | Stamford, UCI274J | Control Module Brand:: | Smartgen, HGM6110 |
| Frequency:: | 60Hz | Prime Power (kw/kva):: | 225/281 |
| Standby Power(kw/kva):: | 248/309 | Rated Voltage:: | 440/254 |
| Output Type:: | AC Three Phase | Battery Capacity (V-Ah):: | 24V 100Ah |
| Running Noise Db(A): | 115(open Type) | ||
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

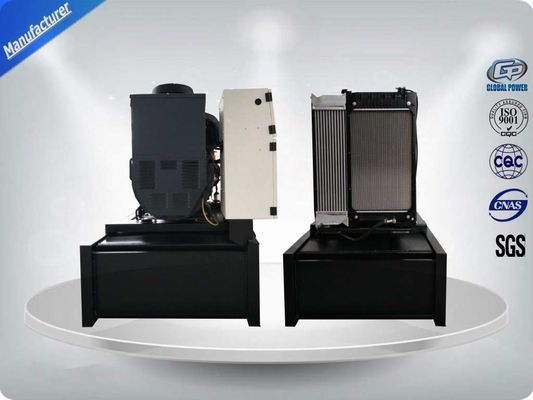

Water Cooled 3 Phase Perkins Genset 1506A-E88TAG3, 225KW / 281KVA 60HZ with Big Fuel Base Tank
Model: GP1 P225
Generator data
Diesel Generator GP1 P225 (three phase)
| Prime Power (kw/kva) | 225/281 |
| Standby Power (kw/kva) | 248/309 |
| Rated Voltage (V) | 440/254 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 369 |
| Rated Frequency (Hz) | 60 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 2300*780*1250 |
| Open Type-Weight (kg) | 1350 |
| Soundproof Type- Dimension (L*W*H) (mm) | 3200*1300*2000 |
| Soundproof Type-Weight (kg) | 2400 |
| Fuel Tank Capacity(L) | 350 |
| Continuous Running Time(hr.) | 8 |
Engine specifications
Engine
Main features:
Technical data
Model 1506A-E88TAG3
| Engine brand | Perkins |
| Output Power (kw) | 250 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | Direct injection |
| Compression Ratio | 16.1:1 |
| Displacement (L) | 8.8 |
| Bore X Stroke (mm) | 112*149 |
| Engine Speed (r/min) | 1800 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 45 |
| Fuel Consump. (g/kw·h) | 199 |
| Oil Capacity (L) | 41 |
Alternator specifications
Alternator
Main features:
Technical data
Model UCI274J
| Alternator brand | Stamford |
| Rated Power (kw) | 225 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1800 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
DSE4520 controller
Main features:
