Product Details:
Payment & Shipping Terms:
|
| Prime Power: | 38 KW / 48 KVA | Rated Voltage: | 440V / 230V |
|---|---|---|---|
| Engine Brand: | LOVOL, CUMMINS, PERKINS, ISUZU, Etc. | Alternator Brand: | Stanford, Mecc Alte, Faraday, Copy Stamford, Etc. |
| Control System: | DeepSea, SmartGen, Etc. | Rated Frequency (Hz): | 60HZ |
| Highlight: | genset silent generator set,genset silent portable |
||

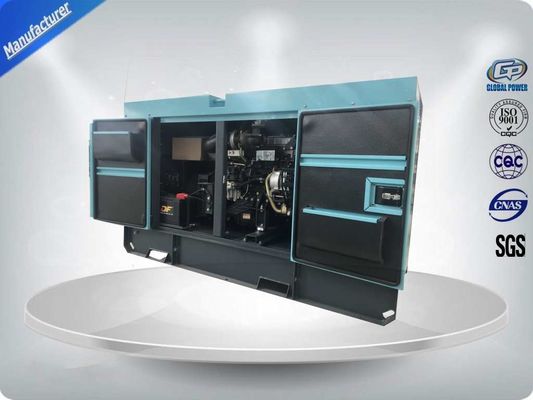

Excellent Design Canopy 38 KW / 48 KVA Silent Diesel Generator Set ISUZU 4JB1TA Water-cooled
Performance of Global Power new design canopy:
1. Fit for generator of 10 KVA - 200 KVA. Humanization design is convenient to operate. AVR controller is connected to the controller system. Drain valves for water and fuel can be stretched out of the canopy through a pipe line.
2. Big capacity of fuel tank partitioned into two parts, prevent fuel leakage at special ambient.
3. Multiple lifting ways with additional dragging holes for comfortable unloading.
4. Assembled type with pieces of canopy for comfortable maintenance.
5. About safety: The emergency stop button is available without opening the door. The fan has an additional protection net. All locks are designed for theftproof style.
Diesel Generator GP1 IS48 (three phase)
| Prime Power (kw/kva) | 38/48 |
| Standby Power (kw/kva) | 42/52 |
| Rated Voltage (V) | 440/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 82 |
| Rated Frequency (Hz) | 60 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 1680*660*1000 |
| Open Type-Weight (kg) | 600 |
| Soundproof Type- Dimension (L*W*H) (mm) | 2200*900*1200 |
| Soundproof Type-Weight (kg) | 1600 |
| Fuel Tank Capacity(L) | 100 |
| Continuous Running Time(hr.) | 8 |
Model 4JB1TA
| Engine brand | ISUZU |
| Output Power (kw) | 44 |
| Cylinder No. & Config. | 4, in-line |
| Combustion System | direct injection |
| Compression Ratio | 16.5:1 |
| Displacement (L) | 3.9 |
| Bore X Stroke (mm) | 102*120 |
| Engine Speed (r/min) | 1800 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 24 |
| Fuel Consump. (g/kw·h) | 216 |
| Oil Capacity (L) | 16.4 |
Model GPI 184J
| Alternator brand | Global Power |
| Rated Power (kw) | 38 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1800 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
FAQ
1.What's the power range of diesel generators?
Power range from 5kva~3000kva.
2.What's the delivery time?
Delivery within 30 days after deposit confirmed.
3.What's your payment term?
1.We accept 30% T/T as the deposit,the balance payment paid before delivery
2. L/C at sight
4.What's your warranty?
Warranty is one year or 1000 hours which comes first.
5.What's your MOQ?
MOQ is 1 set.
6.What’s the frequency of diesel generators?
50/60HZ
7.What’s the voltage of your diesel generator?
Voltage is 220/380V,230/400V,240/415V, just as per your request.
