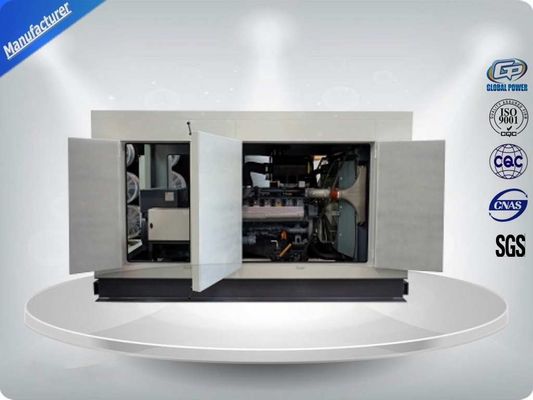

120kW / 150kVA Diesel Engine Generator Set With Volvo Engine TAD731GE Brushless Alternator ISO9001

: Large Image : 120kW / 150kVA Diesel Engine Generator Set With Volvo Engine TAD731GE Brushless Alternator ISO9001

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	OEM/ISO9001
Model Number:	GPV120

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 working days after receiving down-payment
Payment Terms:	L/C, L/C
Supply Ability:	2,000sets/year

Contact Now

Detailed Product Description

Prime Power:	120KW	Engine Brand:	Volvo
Alternator Brand:	Stamford	Rated Current:	216A
Battery Capacity:	12V 100Ah	Fuel Tank Capacity:	320L
Soundproof Type- Dimension (LWH):	360016002000 (mm)	Soundproof Type-Weight:	4180 (kg)
Highlight:	genset silent generator set , genset silent portable

120kW / 150kVA Diesel Engine Generator Set With Volvo Engine TAD731GE Brushless Alternator ISO9001

Technical Specifications :

Genset:

Prime Power (kw/kva)	120/150
Standby Power (kw/kva)	132/165
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	216
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah
Open Type-Dimension (LWH) (mm)	25518661375
Open Type-Weight (kg)	1450
Soundproof Type- Dimension (LWH) (mm)	360016002000
Soundproof Type-Weight (kg)	4180
Fuel Tank Capacity(L)	320
Continuous Running Time(hr.)	8

Engine:
Main features:

Six-cylinder, water-cooled, in-line diesel engine
Efficient fuel system for max power output and durability
Large-capacity air cleaner
Cost effective, fuel efficient and reliable performance
Functional engine with compact structure
Excellent after-sales service and sufficient spare parts supplying
Easy installation and ready access for routine maintenance

Model TAD731GE

Engine brand	VOLVO
Output Power (kw)	132
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	18:1
Displacement (L)	7.15
Bore X Stroke (mm)	108*130
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	12V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	23.8
Fuel Consump. (g/kw·h)	215
Oil Capacity (L)	20

Alternator:
Main features:

Advanced automatic voltage regulator (AVR) control for trouble-free operation under the most demanding conditions
2/3 pitch winding as standard, to avoid excessive neutral currents
Single or two bearing construction with dynamically balanced rotor and sealed-for-life bearings
Easy access for installation and maintenance
IP23 as standard
Self-excited control system
Resist of corruption of oil and acid

Model WHI 274FS

Alternator brand	Wattek
Rated Power (kw)	120
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

Controller features:

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation

120kW / 150kVA Diesel Engine Generator Set With Volvo Engine TAD731GE Brushless Alternator ISO9001
Our Picture :

Features and benefits:

Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)Tightly structure, excellent design and craft
Self-diagnostic capability simplifies troubleshooting
LCD display shows system status and setup information
Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
Enclosed muffler for added quietness
Service and maintenance accessible through easy-latch side service door.
Transient state voltage regulation rate:+20%~-15%Un
The generator excellent Features:
Voltage regulation range:(95%Un ~105%)Un
Steady- state Voltage regulation: ≤±1%
No-load line voltage sine waveform distortion: ≤5%
Thermal deviation is zero(ANU).
