Product Details:
Payment & Shipping Terms:
|
| Product Name: | Mitsubishi Diesel Generator Set | Output Type: | AC Three Phase |
|---|---|---|---|
| Rated Voltage:: | 400/230V | Prime Power (kw/kva): | 1100/1375 |
| Standby Power(kw/kva): | 1210/1513 | Engine Model: | Mitsubishi, S12R-PTA2 |
| Alternator Brand: | Stamford, PI 734B | Frequency: | 50Hz |
| Weight(kg): | 12005 | Dimension Size(L*W*H/mm): | 4515*2200*2510 |
| Package: | Plastic Foam Or Plywood Case | Control Module Brand: | DeepSea,Comap,Smartgen |
| Highlight: | brushless synchronous generator,brushless alternator generator |
||
Model: GPM1100
Features and benefits
Open Diesel Generator data

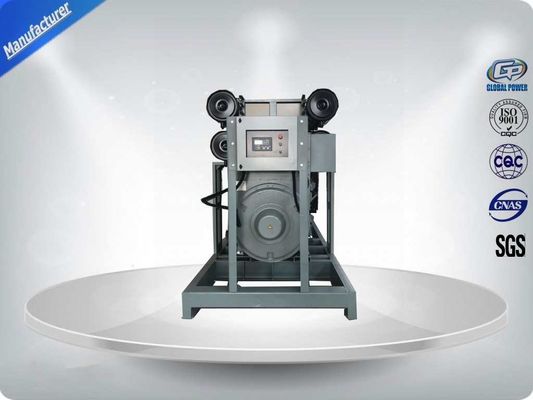

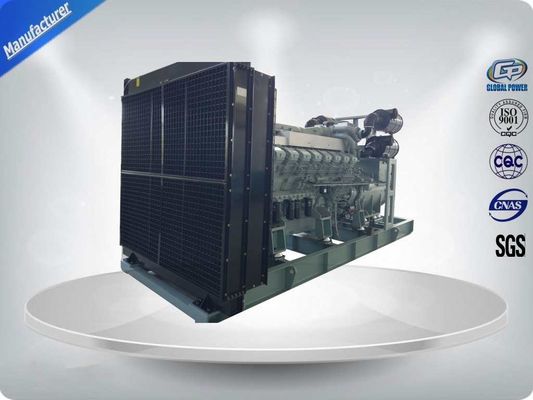

Diesel Generator GPM1100 (three phase)
| Prime Power (kw/kva) | 1100/1375 |
| Standby Power (kw/kva) | 1210/1513 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 1985 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 115 |
| Battery capacity (V-Ah) | 12V 200Ah*2*2 |
| Open Type-Dimension (L*W*H) (mm) | 4515*2200*2510 |
| Open Type-Weight (kg) | 12005 |
| Continuous Running Time(hr.) | 6 |
Mitsubishi Diesel Engine specifications
Engine
Main features:
Technical data
Model S12R-PTA2
| Engine brand | MITSUBISHI (China) |
| Output Power (kw) | 1285 |
| Cylinder No. & Config. | 12, in “V” |
| Combustion System | direct injection |
| Displacement (L) | 49.03 |
| Bore(m) | 170 |
| Stroke (m) | 180 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 335 |
| Fuel Consump. (g/kw·h) | 207 |
| Oil Capacity (L) | 180 |
Alternator specifications
Alternator
Main features:
Technical data
Model PI 734B
| Alternator brand | Stamford |
| Rated Power (kw) | 1120 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Control system
ComAp controller
