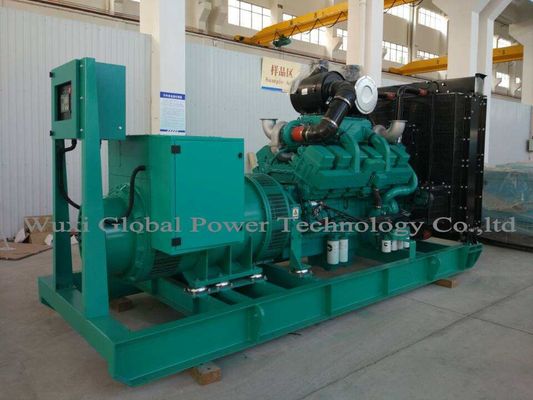

470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6

Products

Mobile Light Tower

czh@global-powers.com

86-510-85748495

Contact Now

470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6

MOQ:	1 Set
Price:	Negotiable

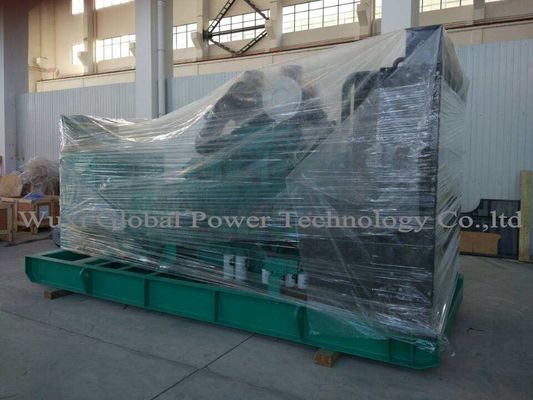

Standard Packaging:	Plastic Foam or Plywood Case Packing
Delivery Period:	30 Working Days after Received Down-payment
Supply Capacity:	2000 Sets per Year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

OEM/ISO9001

Model Number

GPC470

Product Name:

Compact Diesel Generator Set

Prime Power:

470 KW / 588 KVA

Stanby Power:

517 KW / 646 KVA

Rated Frequency:

50 HZ

Open Type-Dimension (L*W*H) (mm):

3570*1550*2160

Open Type-Weight (kg):

Fuel Consumption:

208.5 G/kw.h

Highlight:

470KW open diesel generator set

400V open diesel generator set

588KVA open genset

Product Description

470KW/588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins KTAA19-G6

The power ranges of Cummins series from 18Kw to 1200Kw. Features of low fuel consumption, low emission, low noise; high precision voltage regulation, good dynamic performance, compact structure, long service life; start quickly, and it can soon reach full power.

Diesel Generator GPC470 (three phase)

Prime Power (kw/kva)	470/588
Standby Power (kw/kva)	517/646
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	847
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	12V 100Ah

ENGINE SPECIFICATION

Model KTAA19-G6

Engine brand	Cummins
Output Power (kw)	470
Cylinder No. & Config.	6, in-line
Combustion System	direct injection
Compression Ratio	13.5:1
Displacement (L)	19
Bore X Stroke (mm)	159*159
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	96
Fuel Consump. (g/kw·h)	208.5
Oil Capacity (L)	50

470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6 0

ALTERNATOR SPECIFICATION

Model GPI 5E

Alternator brand	Global Power
Rated Power (kw)	480
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6 1

470KW 588KVA 50HZ 400V 3P 4 Wires Open Diesel Generator Set With Cummins Diesel Engine KTAA19-G6 2

Fuel System

Fuel filter with integral water separator

Starting / Charging System

24V starting motor(s)
Batteries with rack and cables
Battery charger

Cooling System

40℃ radiator with guard size

HGM6110 controller

Main features:

Using microprocessor as a core, graphics LCD with big screen and backlight, key touch for operation
Security password-protected programming levels
All parameters use digital modulation, with higher reliability and stability
Built-in speed/frequency detecting units can accurately judge the states such as crank success and over speed
Power supply range is wide, accommodating to different starting battery voltage environment
Built-in watch dog can never be dead halt, ensuring smooth program execution
Modular configuration design, inserted type connection terminals, flush type installation, compact structure, easy installation
