Product Details:
Payment & Shipping Terms:
|
| Product Name: | Diesel Engine Generator Set | Prime Power: | 640KW / 800KVA |
|---|---|---|---|
| Standby Power: | 704KW / 880KVA | Engine Brand: | CUMMINS |
| Engine Model: | KTA38-G2B | Alternator Brand: | STAMFORD |
| Alternator Model: | HCI634G | Dimension(L*W*H): | 4450*1650*2400 MM |
| Weight: | 6600KG | ||
| Highlight: | brushless alternator generator,engine generator set |
||

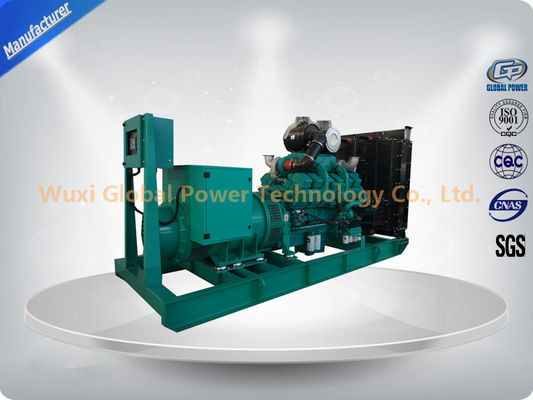

Global Power 12-Cylinder in "V" 600 KW Cummins Generator Set Low Noise Low Fuel Consumption
Global Power Cummins generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.
| Genset Model | GPC640 | |
|
Standby Power |
kVA | 880 |
| kw | 704 | |
|
Prime Power |
kVA | 800 |
| kw | 640 | |
| Frequency | Hz | 50 |
| Voltage | V | 400/230 |
| Rated speed | rpm | 1800 |
| Fuel Consumption 100% Load | L/Hr | 168.4 |
| Fuel Consumption 75% Load | L/Hr |
126.3 |
| Fuel Consumption 50% Load | L/Hr | 84.2 |

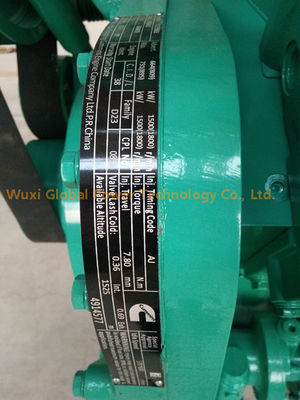

Cummins engine Model: KTA38-G2B
| Cummins Engine: KTA38-G2B | |
| Cylinder arrangement | 12 in V |
| Displacement | 38L |
| BorexStroke | 159x159mm |
| Compression ratio | 14.5:1 |
| Rated RPM | 1500 |
| Max. standby power at rated RPM | 711kW |
| Governor type | Electronic |
| Exhaust temperature | 600℃ |
| Total coolant capacity | 194L |
| Total oil capacity | 135L |

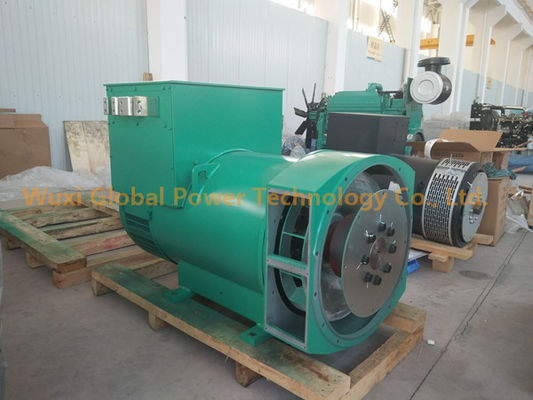

Stamford Alternator Model: HCI634G
| Stamford Alternator: HCI634G | |
| Number of phase | 3 |
| Connecting type | 3 Phase 4 Wire, “Y” type connecting |
| Number of bearing | 1 |
| Protection grade | IP23 |
| Exciter type | Brushless, self-exciting |
| Insulation class, Temperature rise | H/H |
| Telephone Influence Factor (TIF) | <50 |
| THF | <2% |
| Voltage Regulation, Steady state | ≤±1% |
| Alternator capacity | 640KW |
| Alternator efficiencies | 93.5% |
Generator Sets Standard and Optional Features
Engine:
Alternator:
Electrical system:
Packing:
Baseframe:
Canopy:
