Product Details:
Payment & Shipping Terms:
|
| Product Name: | Diesel Electric Generator | Prime Power: | 520KW / 650KVA |
|---|---|---|---|
| Standby Power: | 572KW / 715KVA | Engine Brand: | CUMMINS |
| Engine Model: | QSKTAA19-G3 | Alternator Brand: | STAMFORD |
| Alternator Model: | HCI544F | Dimension(L*W*H): | 3570*1550*2160 MM |
| Weight: | 4200KG | ||
| Highlight: | brushless alternator generator,engine generator set |
||

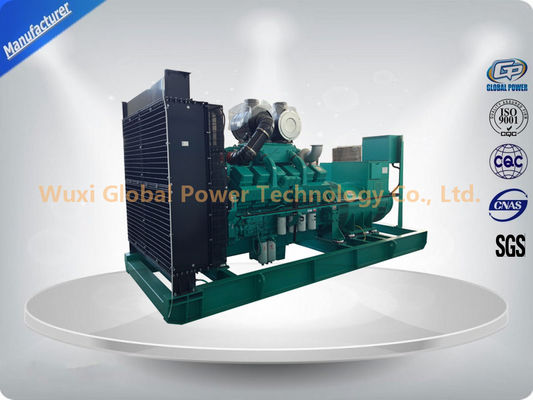

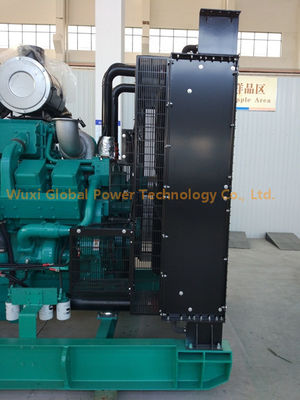

Manufacturer Supplier 650 KVA / 520 KW Cummins Open Diesel Generator Set 50 HZ / 60 HZ Customized
Global Power Cummins generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.
| Genset Model | GPC520 | |
|
Standby Power |
kVA | 715 |
| kw | 572 | |
|
Prime Power |
kVA | 650 |
| kw | 520 | |
| Frequency | Hz | 50 |
| Voltage | V | 400/230 |
| Rated speed | rpm | 1800 |
| Fuel Consumption 100% Load | L/Hr | 140.8 |
| Fuel Consumption 75% Load | L/Hr |
105.6 |
| Fuel Consumption 50% Load | L/Hr | 70.4 |

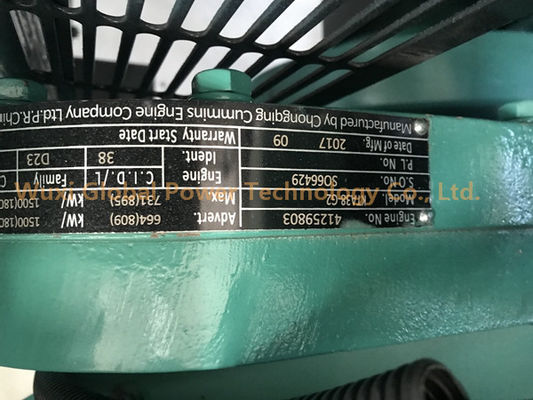

Cummins engine Model: QSKTAA19-G3
| Cummins Engine: QSKTAA19-G3 | |
| Cylinder arrangement | 6 in V |
| Displacement | 19L |
| BorexStroke | 159x159mm |
| Compression ratio | 13.0:1 |
| Rated RPM | 1500 |
| Max. standby power at rated RPM | 574kW |
| Governor type | Electronic |
| Exhaust temperature | 600℃ |
| Total coolant capacity | 116.5L |
| Total oil capacity | 50L |
Stamford Alternator Model: STAMFORD HCI544F
| Stamford Alternator: HCI544F | |
| Number of phase | 3 |
| Connecting type | 3 Phase 4 Wire, “Y” type connecting |
| Number of bearing | 1 |
| Protection grade | IP23 |
| Exciter type | Brushless, self-exciting |
| Insulation class, Temperature rise | H/H |
| Telephone Influence Factor (TIF) | <50 |
| THF | <2% |
| Voltage Regulation, Steady state | ≤±1% |
| Alternator capacity | 536KW |
| Alternator efficiencies | 93.5% |
Generator Sets Standard and Optional Features
Engine:
Alternator:
Electrical system:
Packing:

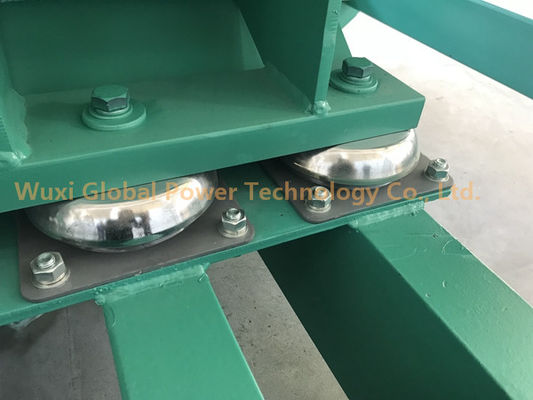

Baseframe:
Canopy:
