650KVA 520KW Cummins Open Diesel Generator 50HZ 60HZ Customized By Water Cooled
  • name
  • name
  • name
  • name

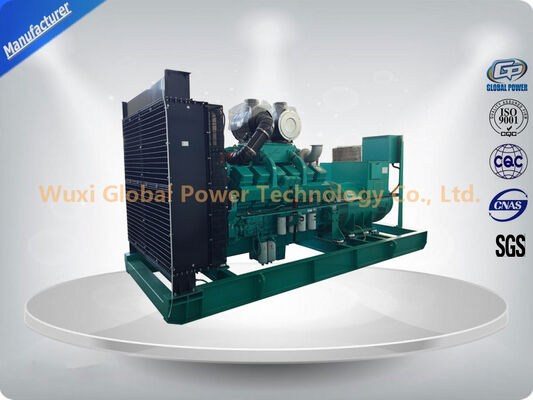

650KVA 520KW Cummins Open Diesel Generator 50HZ 60HZ Customized By Water Cooled

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plastic foam or plywood case packing
Delivery Period: 30 working days after received down-payment
Supply Capacity: 2000 Sets per Year
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
Global Power
Certification
OEM / ISO9001
Model Number
GP C520
Product Name:
Diesel Electric Generator
Prime Power:
520KW / 650KVA
Standby Power:
572KW / 715KVA
Engine Brand:
CUMMINS
Engine Model:
QSKTAA19-G3
Alternator Brand:
STAMFORD
Alternator Model:
HCI544F
Dimension(L*W*H):
3570*1550*2160 MM
Weight:
4200KG
Highlight:

650KVA Open Diesel Generator

,

520KW Open Diesel Generator

,

50HZ genset open type

Product Description

Manufacturer Supplier 650 KVA / 520 KW Cummins Open Diesel Generator Set 50 HZ / 60 HZ Customized


Global Power Cummins generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.


650KVA 520KW Cummins Open Diesel Generator 50HZ 60HZ Customized By Water Cooled 0

Genset Model GPC520

Standby Power

 kVA 715
  kw 572

Prime Power

 kVA 650
  kw 520
Frequency Hz 50
Voltage V 400/230
Rated speed rpm 1800
Fuel Consumption 100% Load L/Hr 140.8
Fuel Consumption 75% Load L/Hr

105.6
Fuel Consumption 50% Load L/Hr 70.4



 Cummins engine     Model: QSKTAA19-G3


Cummins Engine: QSKTAA19-G3
Cylinder arrangement 6 in V
Displacement 19L
BorexStroke 159x159mm
Compression ratio 13.0:1
Rated RPM 1500
Max. standby power at rated RPM 574kW
Governor type Electronic
Exhaust temperature 600℃
Total coolant capacity 116.5L
Total oil capacity 50L


Stamford Alternator     Model: STAMFORD HCI544F

Stamford Alternator: HCI544F
Number of phase 3
Connecting type 3 Phase 4 Wire, “Y” type connecting
Number of bearing 1
Protection grade IP23
Exciter type Brushless, self-exciting
Insulation class, Temperature rise H/H
Telephone Influence Factor (TIF) <50
THF <2%
Voltage Regulation, Steady state ≤±1%
Alternator capacity 536KW
Alternator efficiencies 93.5%


650KVA 520KW Cummins Open Diesel Generator 50HZ 60HZ Customized By Water Cooled 1

Generator Sets Standard and Optional Features

Engine:

  1. 4-stroke, water-cooled diesel engine
  2. Standard air filter
  3. Standard fuel filter
  4. Standard oil filter
  5. Oil temperature sensor
  6. Low coolant level sensor
  7. 24V electrical system
  8. Radiator with blowing fan
  9. Industrial silence
  10. Fuel water separator (optional)
  11. Water jacket heater (optional)

Alternator:

  1. Class H insulation
  2. IP23 Protection
  3. Automatic Voltage Regulator (AVR)
  4. PMG excitation
  5. Single bearing alternator
  6. Stamford alternator


Electrical system:

  1. DSE 7320 control module
  2. Maintenance-free and anti-explosion battery
  3. Standard breaker
  4. ABB breaker (optional)
  5. ATS (optional)
  6. Battery charger (optional)
  7. GMS monitoring (optioanl)

Packing:

  1. Engine manual
  2. Alternator manual
  3. Gensets operation and maintenance manual
  4. Tool kit

Baseframe:

  1. Forklift pockets
  2. Pulling slots
  3. Earth wire protection
  4. Built-in anti vibration mountings
  5. Fuel outlet value
  6. Standard 8 hours fuel tank
  7. Enlarged 24 hours fuel tank (optional)
  8. Separated fuel tank (optional)


Canopy:

  1. Weatherproof & sound-attenated canopy
  2. Sound-absorbing material
  3. Lifting lug
  4. Emergency stop button
  5. Inside silencer
  6. Trailer generator (optional)

650KVA 520KW Cummins Open Diesel Generator 50HZ 60HZ Customized By Water Cooled 2
