Product Details:
Payment & Shipping Terms:
|
| Product Name: | Standby Diesel Generator | Prime Power: | 45KW / 56KVA |
|---|---|---|---|
| Stanby Power: | 50KW / 62KVA | Engine: | KOFO N4105ZDS |
| Alternator: | GP GPI 224E | Rated Voltage: | 400V / 230V |
| Dimension: | 1900*700*1200 MM | Weight: | 680 KG |
| Control System: | Smartgen HGM410 | ||
| Highlight: | brushless alternator generator,engine generator set |
||
Outdoor projects, road construction, telecome / data center, hospitals, mining projects, airports, shopping malls, etc.
| 45kw / 56 kva KOFO gensets technology parameters | |
| Genset | |
| Type:GPK45-1 | Rated frequency: 50 HZ / 60 HZ |
| Output power:45KW / 56KVA |
Frequency Recovery Time: ≤5S |
| Power factor:COSΦ=0.8(lag) |
Wave Distortion: ≤5%, sine wave |
| Rated voltage:400/230V |
Running Noise db(A)/7m: 80 |
| Current: 81A |
Battery capacity (V-Ah): 12V 100Ah |
| Frequency:50HZ | Fuel tank capacity: 160L |
| Speed:1500RPM | Continuous running time: 8 HRS |
| Dimension:1900*700*1200 MM | The waste of fuel with full load: ≤231g/kw.h |
| Weight: 770kg | |
| Diesel Engine | |
| Brand/Origin:China KOFO | Cooled System:Sea Water Cooling |
| Engine Model: N4105ZDS | Type:Direct Injection,Four-stroke,in-line-type |
| Cylinder No.:4 | Rotating Speed:Electric speed regulator |
| Bore*Stroke:105*120mm | Aspiration Type:Turbo charged |
| Starting Way:DC12/24Vwith electricity | Displacement: 4.2L |
| Lubricating Capacity:13L | |
| Alternator | |
| Standard Brand/Origin: Global Power | Insulation Degree:H degree |
| Rated Power: 50 KW | Grading Protection:IP23 |
| The connecting way of the phase:Three phase four lines | Optional Brand:Meccalte, Marathon,etc |
| Control screen | |
| Brand:Smartgen/Deepsea | Features:English interface;LED screen;Touch buttons |
| Based Function:1.Display loading power,voltage,current,frequency,speed,temperature,oil pressure,running time,etc | |
| 2.Warning when low or high voltage,low or high frequency,over current,over or low speed,low or over battery voltage,etc | |
| 3.Over load protection,over/under frequency protection,over/under/imbalance voltage protection and low oil shutdown. | |

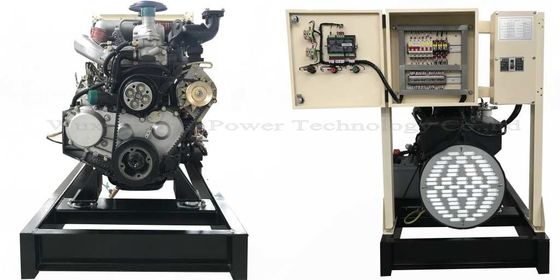

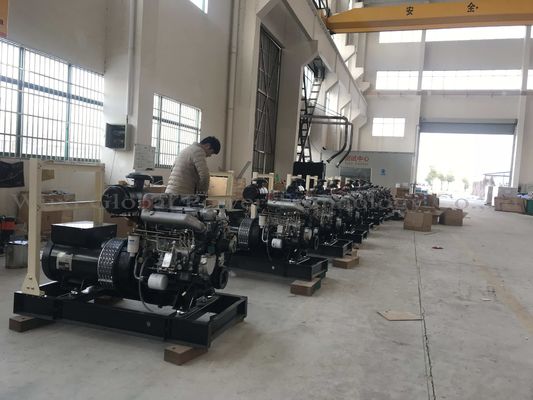

Product Display:
Company Information
Wuxi Global Power Technology CO., Ltd. is located in Jiangsu Wuxi , having been engaged in research, development, manufacture and sales of energy-saving and environment-friendly generating sets, related parts and supporting equipment, which could meet the demands of a wide variety of emergency and common power solutions and integrated systems’building.
The main products of GLOBAL POWER include diesel generating set, gasoline generating set and so on. They are divided into the categories of open type, soundproof type, containerized type, vehicle-mounted type, trailer type and mobile light tower etc.
Global power, as a strategic partner and designated OEM manufacturer of American Cummins, UK Perkins, Volvo , UK Stanford in China has been keeping a steady, friendly and long-term cooperation with world leading companies. At the same time, we also have the mature solution of foreign projects, rich experience in supporting, and have maintained a great partnership with a number of domestic suppliers of electrical and mechanical equipments and components of the distribution system. Each customer, the different needs of each project, we provide the technical supporting system, and find out the best solution.
