Product Details:
Payment & Shipping Terms:
|
| Product Name: | 24KW Marine Diesel Generator | Prime Power: | 24KW / 30KVA |
|---|---|---|---|
| Standby Power: | 26KW / 33KVA | Engine Brand: | YANMAR |
| Engine Model: | 4TNV88-GLE | Alternator Brand: | GLOBAL POWER |
| Alternator Model: | GPI184G | Dimension(L*W*H): | 1450*660*1000 MM |
| Weight: | 570KG | ||
| Highlight: | brushless synchronous generator,engine generator set |
||

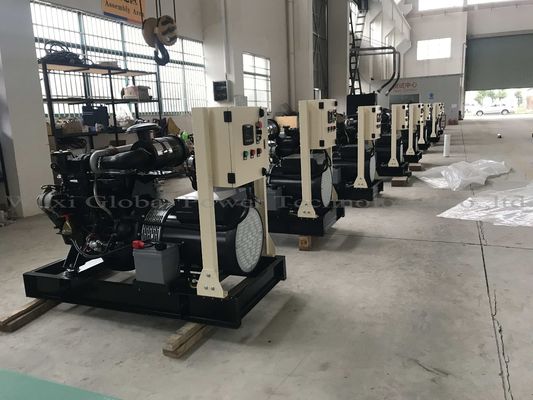

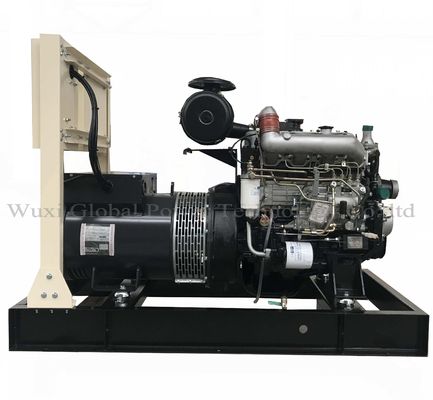

24KW / 30KVA Open Diesel Generator Set Powered by Yanmar 4TNV88-GLE sea water cooled
Global Power generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.
| Prime Power (kw/kva) | 24/30 |
| Standby Power (kw/kva) | 26/33 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 43 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 (Soundproof Set) |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type- Dimension (L*W*H) (mm) | 1450*660*1000 |
| Open Type-Weight (kg) | 570 |
| Soundproof Type- Dimension (L*W*H) (mm) | 1900*740*1130 |
| Soundproof Type-Weight (kg) | 700 |
| Continuous Running Time(hr.) | 8 |
Generator Sets Standard and Optional Features
Engine:
Model 4TNV88-GLE
| Engine brand | YAMMAR |
| Output Power (kw) | 28 |
| Cylinder No. & Config. | 4, in-line |
| Combustion System | direct injection |
| Aspiration type | Turbocharged |
| Displacement (L) | 2.19 |
| Bore X Stroke (mm) | 88*90 |
| Engine Speed (r/min) | 1500 |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Fuel Consump. (g/kw·h) | ≤210 |
Alternator:
Model GPI184G
| Alternator brand | Global Power |
| Rated Power (kw) | 25 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Electrical system:
Packing:
Baseframe:
Canopy:
