Product Details:
Payment & Shipping Terms:
|
| Product Name: | Diesel Power Generating Sets | Prime Power: | 1000KW / 1250KVA |
|---|---|---|---|
| Standby Power: | 1100KW / 1375KVA | Engine Brand: | CUMMINS |
| Engine Model: | KTA50-G3 | Alternator Brand: | STAMFORD |
| Alternator Model: | LV634G | Dimension(L*W*H): | 4950*2253*2400 MM |
| Weight: | 8500KG | ||
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

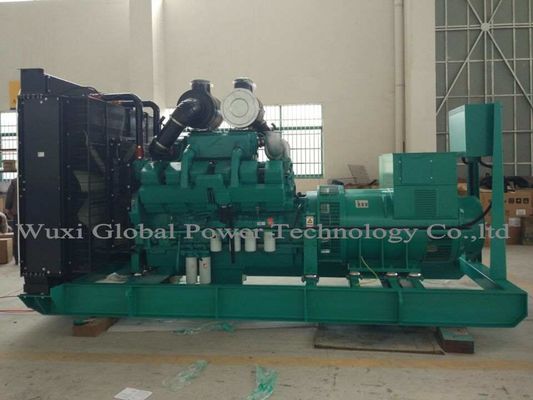

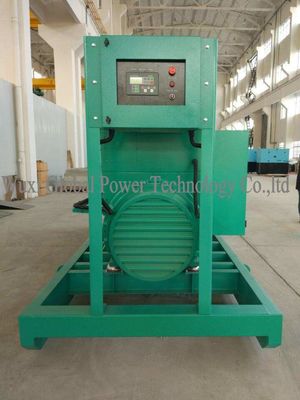

1000 KW Open Diesel Generator Set Powered by Cummins KTA50-G3 And STAMFORD LV634G
Global Power Cummins generators have a wide power range from 20~1500kVA. The generators are widely used in industrial, commercial, backup, primary power source and outdoors project work, etc.
Diesel Generator GPC1000 (three phase)
| Prime Power (kw/kva) | 1000/1250 |
| Standby Power (kw/kva) | 1100/1375 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 1803 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 115 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 4950*2253*2400 |
| Open Type-Weight (kg) | 8500 |
| Continuous Running Time(hr.) | 6 |
Model KTA50-G3
| Engine brand | Cummins |
| Output Power (kw) | 1087 |
| Cylinder No. & Config. | 16,in “V” |
| Combustion System | direct injection |
| Compression Ratio | 13.9:1 |
| Displacement (L) | 50 |
| Bore X Stroke (mm) | 159*159 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 300 |
| Fuel Consump. (g/kw·h) | 197 |
| Oil Capacity (L) | 177 |
Model LV634G
| Alternator brand | Stamford |
| Rated Power (kw) | 1001 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
Generator Sets Standard and Optional Features
Engine:
Alternator:
Electrical system:
Packing:
Baseframe:
