Product Details:
Payment & Shipping Terms:
|
| Product Name: | Open Diesel Generator Genset | Output Type: | AC Three Phase |
|---|---|---|---|
| Rated Voltage:: | 440/254V | Prime Power (kw/kva): | 720/900 |
| Standby Power(kw/kva): | 800/1000 | Engine Model: | Cummins, KTA38-G2 |
| Alternator Brand: | Meccalte, ECO40-VL4A | Weight(kg): | 6500 |
| Dimension Size(L*W*H/mm): | 4450*1650*2400 | Package: | Plastic Foam Or Plywood Case |
| Control Module Brand: | DeepSea,Comap,Smartgen | ||
| Highlight: | brushless synchronous generator,brushless alternator generator |
||

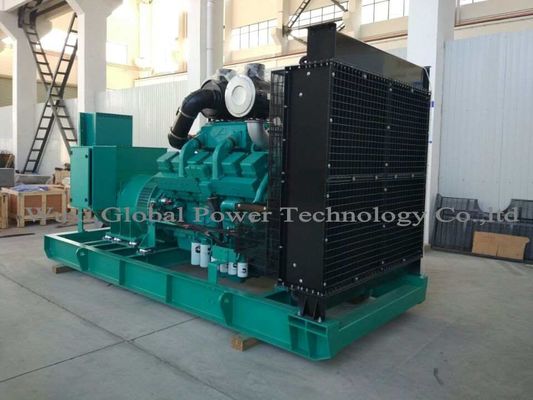

60Hz 3 Phase 720KW / 900KVA Open Diesel Generator Cummins KTA38-G2 with Burshless Alternator
Model: GP1C720
Generator data
Diesel Generator GP1C720 (three phase)
| Prime Power (kw/kva) | 720/900 |
| Standby Power (kw/kva) | 800/1000 |
| Rated Voltage (V) | 440/254 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 1181 |
| Rated Frequency (Hz) | 60 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Open type) | 115 |
| Battery capacity (V-Ah) | 24V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 4450*1650*2400 |
| Open Type-Weight (kg) | 6500 |
| Soundproof Type- Dimension (L*W*H) (mm) | 20ft container |
| Soundproof Type-Weight (kg) | 18300 |
| Fuel Tank Capacity(L) | 1200 |
| Continuous Running Time(hr.) | 6 |
Engine specifications
Engine
Main features:
Technical data
KTA38-G2
| Engine brand | Cummins |
| Output Power (kw) | 809 |
| Cylinder No. & Config. | 12, in “V” |
| Combustion System | direct injection |
| Compression Ratio | 14.5:1 |
| Displacement (L) | 37.8 |
| Bore X Stroke (mm) | 159*159 |
| Engine Speed (r/min) | 1800 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant Capacity (L) | 194 |
| Fuel Consump. (g/kw·h) | 214 |
| Oil Capacity (L) | 135 |
Alternator specifications
Alternator
Main features:
Technical data
ECO40-VL4A
| Alternator brand | Meccalte |
| Rated Power (kw) | 740 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1800 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
