Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cummins Engine Diesel Generator | Type: | Soundproof Type |
|---|---|---|---|
| Prime Power: | 650 KVA / 520KW | Standby Power: | 715 KVA / 572 KW |
| Engine: | Cummins QSKTAA19-G3 | Alternator: | Meccalte ECO40-2L4A |
| Dimensin(L*W*H): | 3570*1550*2160 MM | Weight: | 4200 KG |
| Fuel Tank Capacity: | 800 L | ||
| Highlight: | brushless alternator generator,engine generator set |
||

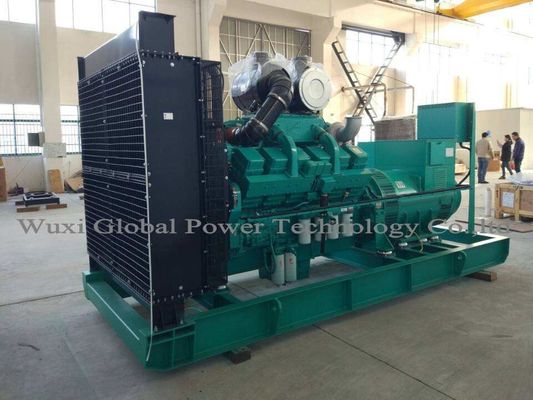

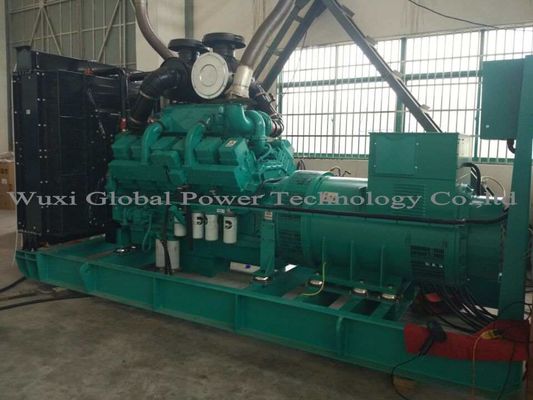

520KW/650KVA Open Industrial Diesel Generator Set Cummins QSKTAA19-G3 Six-cylinde in-line
Performance of silent type generator:
1. Fit for generators of 200 KVA - 800 KVA.
2. European-style design, elegant appearance.
3. Plastic spraying technique of the canopy.
4. Deep-funnel design concept for soundproof, to effectively reduce the noise.
5. Exhaust pipe covered with heat-protection sleeve, to prevent high temperature in the canopy.
6. Noise level: 75dB(A)at 23ft(7m) at normal load.
Diesel Generator GPC520 (three phase)
| Prime Power (kw/kva) | 520/650 |
| Standby Power (kw/kva) | 572/715 |
| Rated Voltage (V) | 400/230 |
| Voltage Recovery Time | ≤1S |
| Rated Current (A) | 938 |
| Rated Frequency (Hz) | 50 |
| Frequency Recovery Time | ≤5S |
| Wave Distortion | ≤5%, sine wave |
| Running Noise db(A)/7m(Silent type) | 75 |
| Battery capacity (V-Ah) | 12V 100Ah |
| Open Type-Dimension (L*W*H) (mm) | 3570*1550*2160 |
| Open Type-Weight (kg) | 4200 |
| Soundproof Type- Dimension (L*W*H) (mm) | 4600*1800*2530 |
| Soundproof Type-Weight (kg) | 6200 |
| Fuel Tank Capacity(L) | 800 |
| Continuous Running Time(hr.) | 6 |
Model QSKTAA19-G3
| Engine brand | Cummins |
| Output Power (kw) | 574 |
| Cylinder No. & Config. | 6, in-line |
| Combustion System | direct injection |
| Compression Ratio | 13.0:1 |
| Displacement (L) | 19 |
| Bore X Stroke (mm) | 159*159 |
| Engine Speed (r/min) | 1500 |
| Speed Governing | Electronic |
| Starting System | 24V DC Electric |
| Filter System | Dry oil filter/Fuel filter/Oil filter |
| Cooling system | Water-cooled |
| Coolant capacity (L) | 116.5 |
| Fuel Consump. (g/kw·h) | 206 |
| Oil Capacity (L) | 50 |
Engine Performance
Air inlet
• Mounted air filter and turbocharger
Fuel system
• Hydraulically actuated electronically controlled unit fuel injectors with full authority electronic control
• Electronic governing to ISO 3046-4 with stand-alone isochronous or load-sharing capabilities
• Spin-on fuel filter with pre-filter and hand primer pump
Lubrication system
• Wet rear well steel sump with filler and dipstick
• Full flow spin-on filters
• Tube-type oil cooler thermostatically controlled
Cooling system
• Thermostatically controlled with belt driven circulating pump and
28 inch belt-driven fan
• Radiator mounted with all guards and pipes
• Air/air charge cooler incorporated in radiator
• Coolant filter/conditioner
Electrical equipment
• 24V starter motor and 24V 45 amp alternator with DC output
• Electronic Control Module mounted on engine with wiring looms and sensors
• 3 level engine protection system
Flywheel and housing
• High inertia flywheel to SAE 3 J620 Size 111/2
• Cast iron SAE 2 flywheel housing
Mountings
• Front engine mounting bracket
Model GPI 5F
| Alternator brand | Global Power |
| Rated Power (kw) | 536 |
| Excitation System | Brushless, self-exciting |
| Voltage Regulation Mode | AVR |
| Connection Type | 3phase,4wires,”Y” connection |
| Pole No. | 4 |
| Rotation Speed (r/min) | 1500 |
| Temperature Rise (℃) | 125 |
| Insulation class | H |
| Voltage Regulation (0 load) | ≥95%～105% |
| Voltage accuracy | ≤±1% |
| Protection Grade | IP23 |
| Telephone Influence Factor | TIF＜50 |
| Harmonic Coefficient | THF＜2% |
-AUTOMATIC MODELS – EQUIPMENT
4 poles ABB/Chint circuit breaker, electronic control unit ComAp AMF25-NT control panel box key, emergency stop button, water jacket heater, battery charger, anti condensation heater.
-AUTOMATIC MODELS – PROTECTORS
Low oil pressure, low fuel level, overload, over/ under frequency, low voltage, over/ under battery voltage, belt breakage.
-AUTOMATIC MODELS – INSTRUMENTATION
Voltmeter, ammeter (3 phases), frequency meter, hour meter, battery voltage, fuel level.
1.Dedicated battery charger with boost and flat modes. Battery charger is configured to provide an alarm in event of a fault with the charging system.
2.Robust, clear labelling system with comprehensive schematic drawings.
3.Option of a high spec controller capable of synchronising with other generators or the mains supply. Standard controller can be used in key start or standard AMF mode.
4.The motorised MCCB is fitted with a stunt trip to protect the generator in event of a sudden shutdown.
5.Battery isolator to enable the battery to be switched off in the event of the generator being put into storage for extended periods.
Optional equipment
• 12V starter and alternator
• 12V ECM
• Sensor positions for:
• oil pressure
• oil temperature
• coolant temperature
• SAE 1 flywheel housing and flywheel
• Turbocharger exhaust outlet
• User’s handbook and parts manual
• Workshop manual
