Name: 22kw / 28kva Prime Power Cummins Engine Slient Diesel Generator Set
Brand: WUXI GLOBAL POWER TECHNOLOGY CO.,LTD
SKU: GP C22
Availability: InStock

MOQ:	1set
Price:	negotiable
Standard Packaging:	plastic foam or plywood case packing
Delivery Period:	25 days after receiveing the down-payment
Supply Capacity:	2000 sets / year

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

Global Power

Certification

CE / ISO

Model Number

GP C22

Engine Brand:

Cummins

Engine Model:

4B3.9-G/24

Engine Output:

24kw

Type:

Silent

Alternator:

Stamford / Meecalt / Copy Stamford

Canopy Size (l*w*h/mm）:

2250×950×1300

Canopy Weight(KG):

1640kg

Control Module:

DeepSea , Comap , Smartgen.

Highlight:

28kva cummins silent dg set

28kva silent diesel generator set

Product Description

Technical Specifications :

Genset	Prime Power (kw/kva)		22 / 28
	Standby Power (kw/kva)		24 / 30
	Voltage Recovery Time		≤1S
	Rated Current (A)		40
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		12V 100Ah
	Fuel Tank Capacity(L)		70
Engine	Engine brand	Cummins
	Output Power (kw)	24
	Cylinder No. & Config.	4, in-line
	Combustion System	direct injection
	Compression Ratio	16.5:1
	Displacement (L)	3.9
	Bore X Stroke (mm)	102*120
	Engine Speed (r/min)	1500
	Speed Governing	Mechanical
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

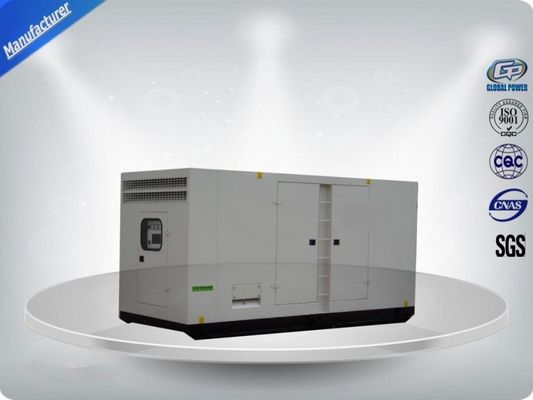

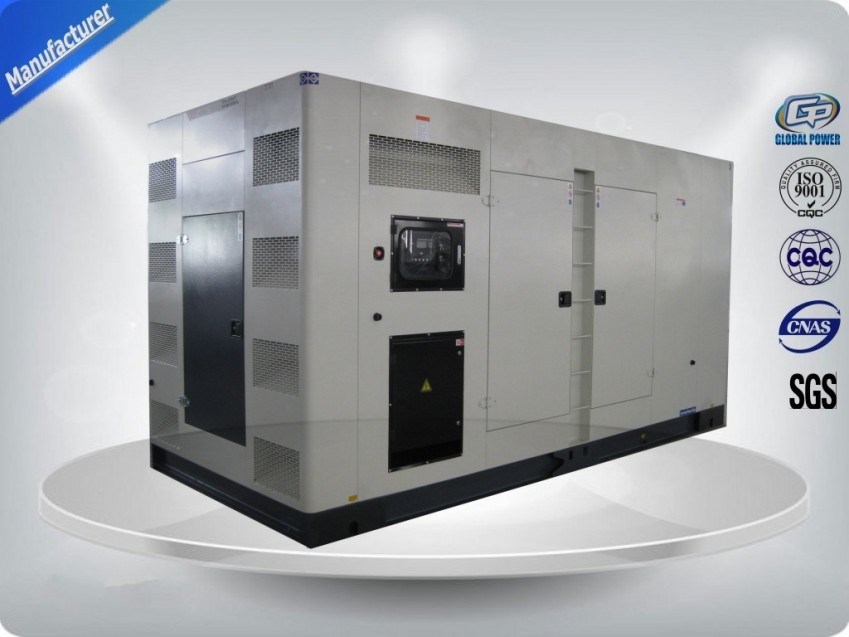

Our Picture :

22kw / 28kva Prime Power Cummins Engine Slient Diesel Generator Set 0

Generator soundproof/Silent and canopy

Excellent ventilation
Black finish stainless steel locks and hinges
Zinc plated or stainless steel fasteners
Body made from steel components treated with polyester powder coating
Two large doors on either side
Radiator fill access plate
Fully guarded cooling fan and battery charging alternator
Fuel fill and battery access via lockable access doors
Emergency stop button on canopy exterior
Lube oil drain and radiator drain to exterior
Control panel viewing window
Lifting points on base frame

Our Service:

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.
