10-100 kw AVR 75 dB Silent Diesel Generator Set With 126 A Rated Current

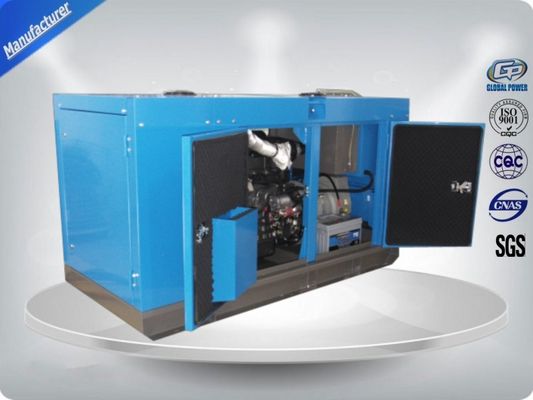

Large Image : 10-100 kw AVR 75 dB Silent Diesel Generator Set With 126 A Rated Current

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	CE / ISO
Model Number:	GP C70

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Engine Brand:	Cummins	Engine Model:	6BT5.9-G1
Engine Output:	86	Type:	Silent
Alternator:	Stamford / Meecalt / Copy Stamford	Canopy Size (lwh/mm）:	280011001500
Canopy Weight(KG):	2735	Control Module:	DeepSea , Comap , Smartgen.
Highlight:	genset silent portable , silent diesel genset

10-100 kw AVR 75 dB Silent Diesel Generator Set With 126 A Rated Current

Technical Specifications :

Genset	Prime Power (kw/kva)		70 / 88
	Standby Power (kw/kva)		77 / 96
	Voltage Recovery Time		≤1S
	Rated Current (A)		126
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		180
Engine	Engine brand	Cummins
	Output Power (kw)	86
	Cylinder No. & Config.	4, in-line
	Combustion System	direct injection
	Compression Ratio	17.5:1
	Displacement (L)	5.9
	Bore X Stroke (mm)	102*120
	Engine Speed (r/min)	1500
	Speed Governing	Mechanical
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3 phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

Our Picture :

10-100 kw AVR 75 dB Silent Diesel Generator Set With 126 A Rated Current

Generator soundproof/Silent and canopy

Excellent ventilation
Black finish stainless steel locks and hinges
Zinc plated or stainless steel fasteners
Body made from steel components treated with polyester powder coating
Two large doors on either side
Radiator fill access plate
Fully guarded cooling fan and battery charging alternator
Fuel fill and battery access via lockable access doors
Emergency stop button on canopy exterior
Lube oil drain and radiator drain to exterior
Control panel viewing window
Lifting points on base frame

Our Service:

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.
