520kw / 650kva Electronic Cummins Generator Set , 4 wires Silent Diesel Genset

Large Image : 520kw / 650kva Electronic Cummins Generator Set , 4 wires Silent Diesel Genset

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	Global Power
Certification:	CE / ISO
Model Number:	GP C520

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiable
Packaging Details:	plastic foam or plywood case packing
Delivery Time:	25 days after receiveing the down-payment
Supply Ability:	2000 sets / year

Contact Now

Detailed Product Description

Engine Brand:	Cummins	Engine Model:	QSKTAA19-G3
Electronic Cummins Generator Set , Red And Green Silent Diesel Genset Governing:	Electronic	Cooling System:	Water-cooled
Alternator:	Stamford / Meecalt / Copy Stamford	Canopy Size (lwh/mm）:	460018002530
Canopy Weight(KG):	10400	Type:	Slient
Highlight:	genset silent generator set , genset silent portable

520kw / 650kva Electronic Cummins Generator Set , 4 wires Silent Diesel Genset

Technical Specifications :

Genset	Prime Power (kw/kva)		520 / 650
	Standby Power (kw/kva)		572 / 715
	Voltage Recovery Time		≤1S
	Rated Current (A)		938
	Rated Frequency (Hz)		50
	Frequency Recovery Time		≤5S
	Running Noise db(A)/7m(Silent type)		75
	Battery capacity (V-Ah)		24V 100Ah
	Fuel Tank Capacity(L)		800
Engine	Engine brand	Cummins
	Output Power (kw)	574
	Cylinder No. & Config.	6, in-line
	Combustion System	direct injection
	Compression Ratio	13.0:1
	Displacement (L)	18.9
	Bore X Stroke (mm)	159*159
	Engine Speed (r/min)	1500
	Speed Governing	Mechanical
	Starting System	24V DC Electric
	Filter System	Dry oil filter/Fuel filter/Oil filter
	Cooling system	Water-cooled
Alternator	Alternator brand	Stamford, Mecc-alte,Faraday…
	Excitation System	Brushless, self-exciting
	Voltage Regulation Mode	AVR
	Connection Type	3phase,4wires,”Y” connection
	Pole No.	4
	Rotation Speed (r/min)	1500
	Temperature Rise (℃)	125
	Insulation class	H
	Voltage Regulation (0 load)	≥95%～105%
	Protection Grade	IP23

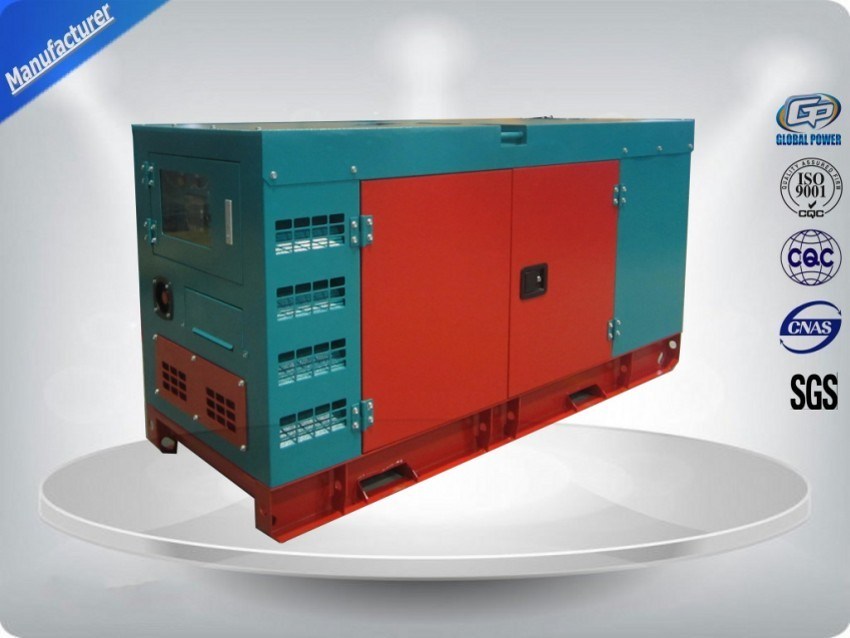

Our Picture :

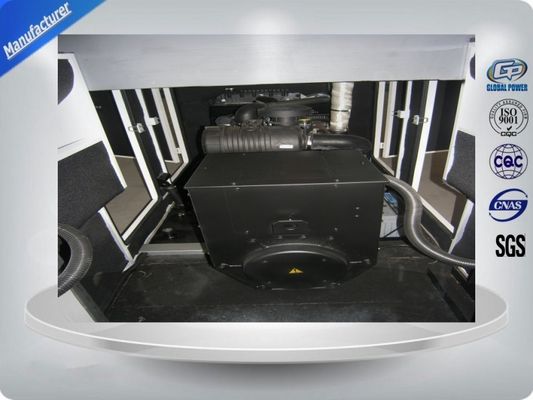

520kw / 650kva Electronic Cummins Generator Set , 4 wires Silent Diesel Genset

Generator soundproof/Silent and canopy

Excellent ventilation
Black finish stainless steel locks and hinges
Zinc plated or stainless steel fasteners
Body made from steel components treated with polyester powder coating
Two large doors on either side
Radiator fill access plate
Fully guarded cooling fan and battery charging alternator
Fuel fill and battery access via lockable access doors
Emergency stop button on canopy exterior
Lube oil drain and radiator drain to exterior
Control panel viewing window
Lifting points on base frame

Our Service:

If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China. We can drive to pick you up and visit our factory.
Suggest the best choice or referential suggestion based on customers’ information. Answer all questions about the product from customer.
Build customers’ profiles, follow-up service, make regular calls on customers.

Warranty and Maintenance:

Guarantee Period: One year or 1000 running hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent by air express.
24 hours service hotline is available for customers.
